Heater Cord

Coolant Heater Cord Replacement

Removal Procedure

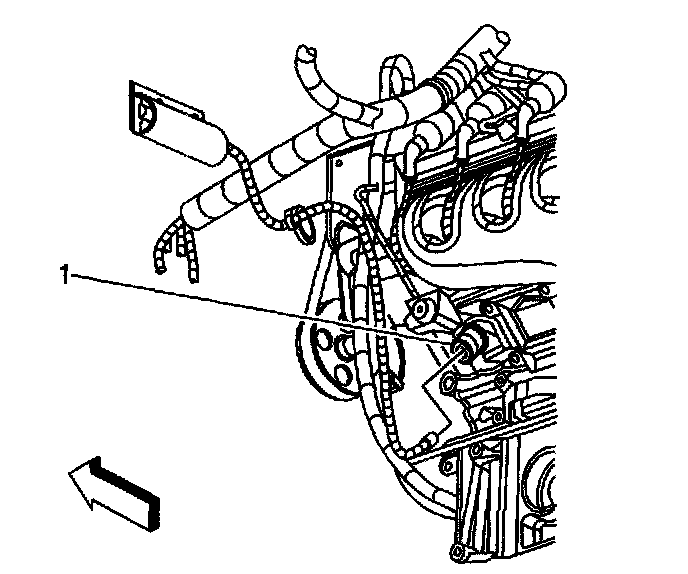

1. Disconnect the coolant heater cord from the coolant heater (1).
2. Remove the coolant heater cord clip from the engine harness.
3. Remove heater cord from vehicle

Installation Procedure





1. Install heater cord to vehicle.

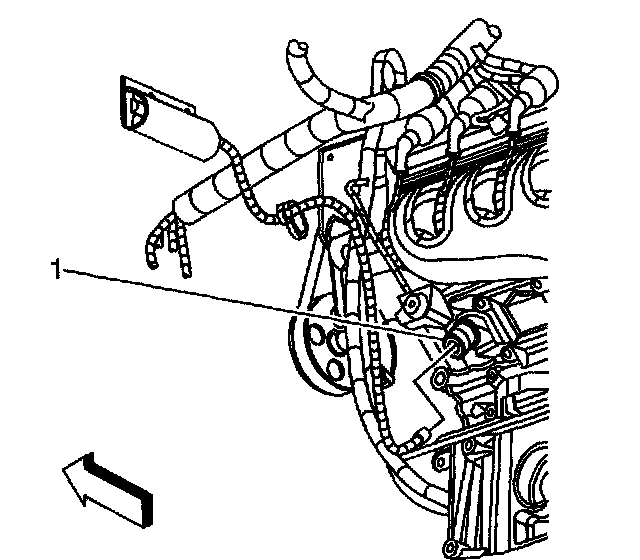

2. Connect the coolant heater cord to the coolant heater (1).
3. Install the coolant heater cord clip to the engine harness.
