Oil Temperature Sensor/Switch, Engine
>>
Fuel Tank Pressure Sensor (Chassis) 3 Way
Fuel Tank Pressure Sensor (Chassis) 3 Way

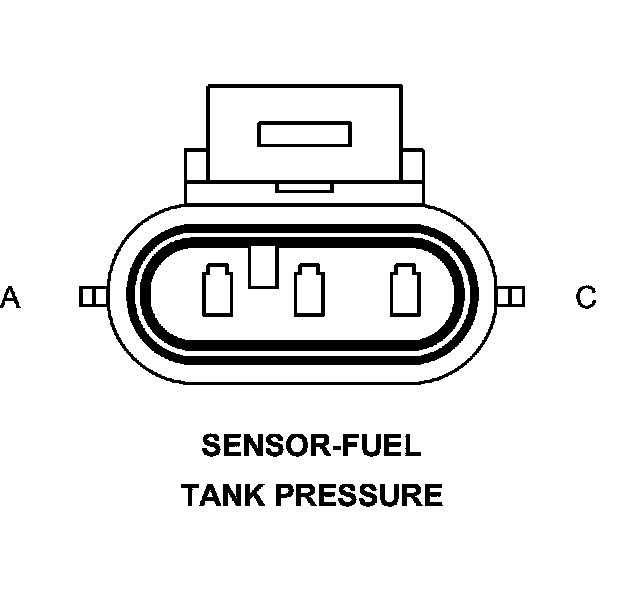

Connector - (CHASSIS) 3 WAY

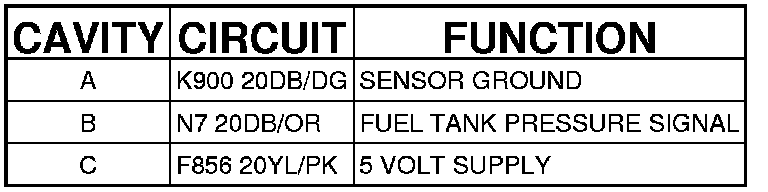

SENSOR-FUEL TANK PRESSURE - (CHASSIS) 3 WAY
