Power Window Timer Wiring Circuit
Power Window Timer Wiring Circuit

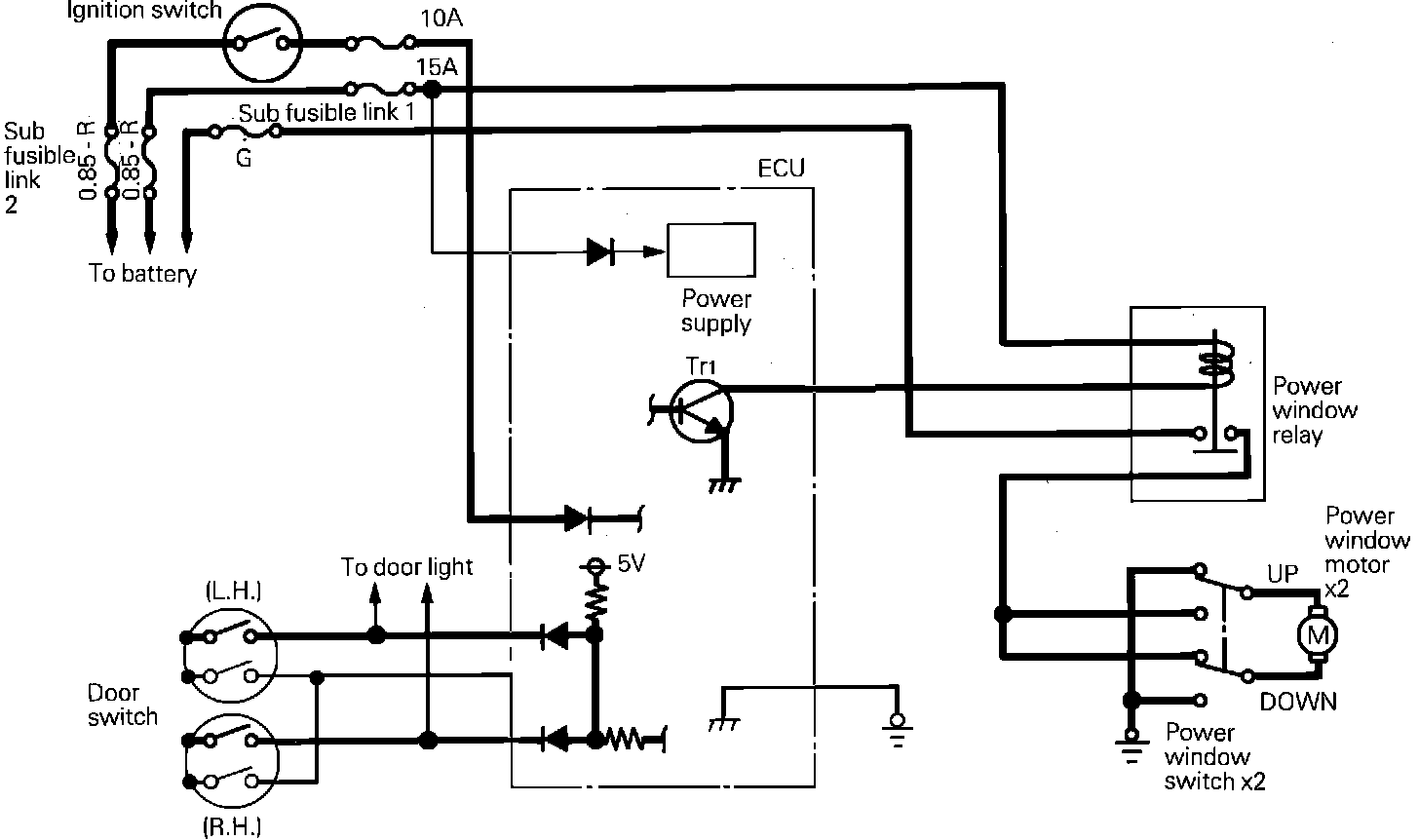

Power Window Timer Wiring Circuit:
