Electrical Diagrams

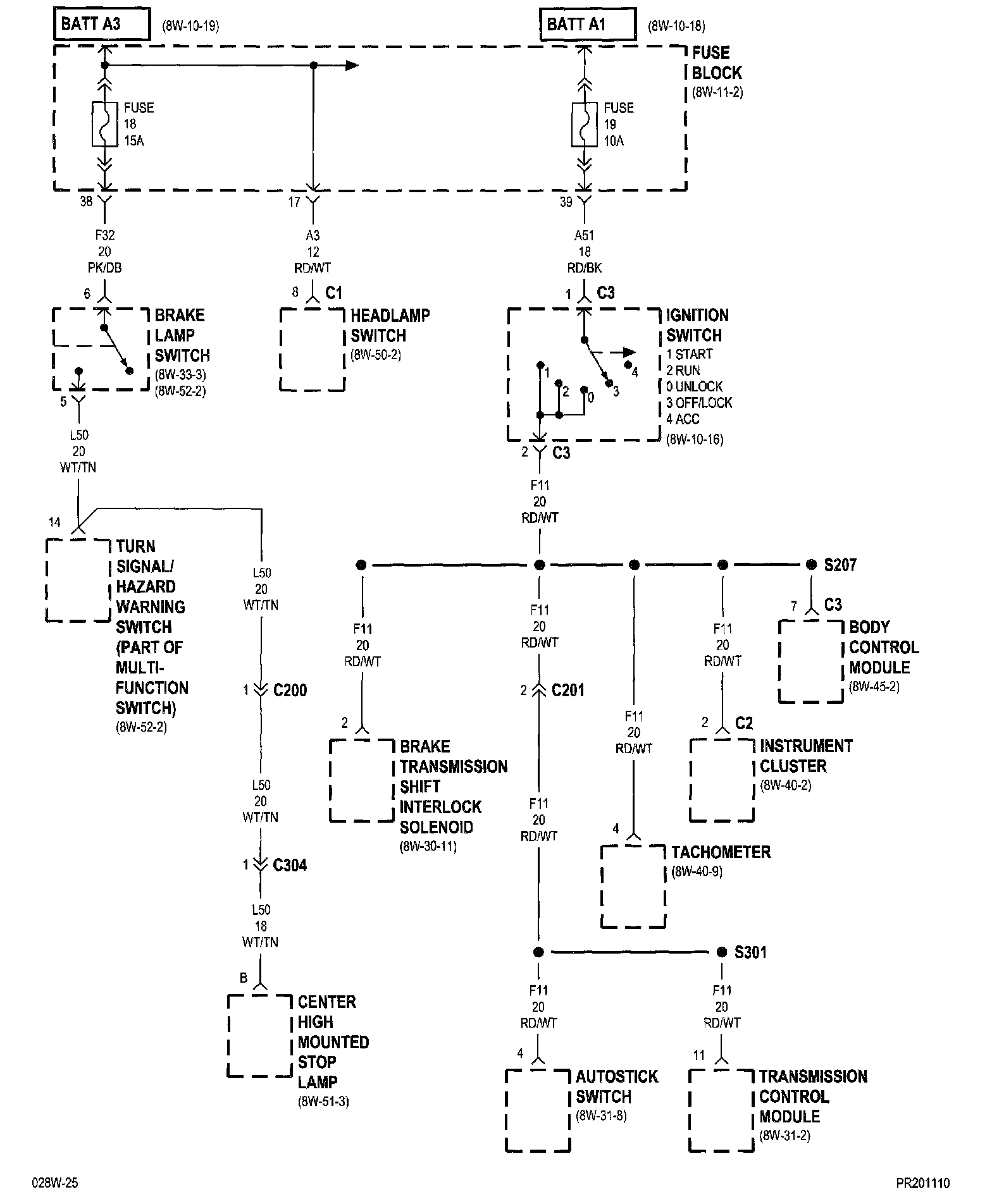

8w-11-4:

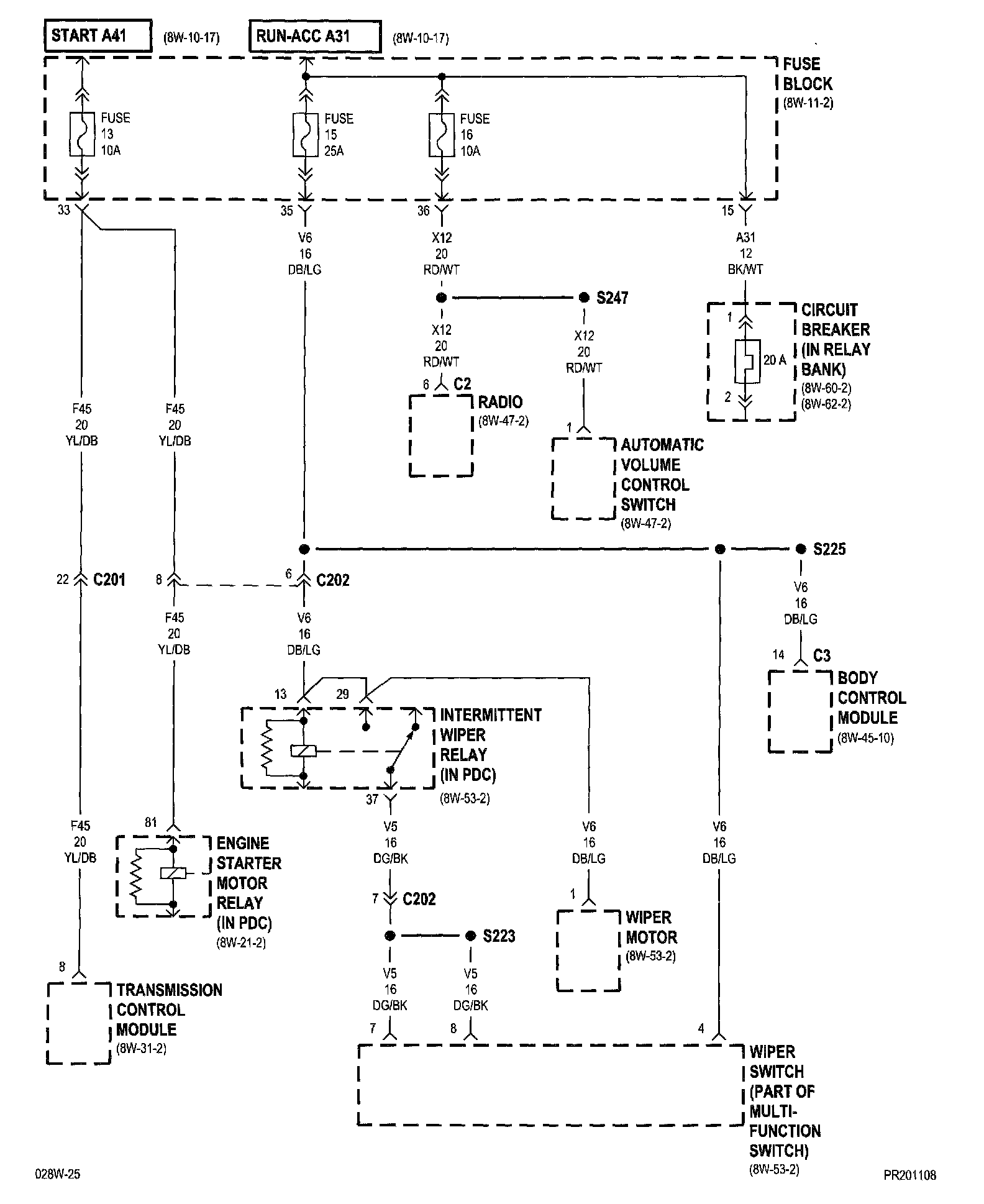

8w-11-5:

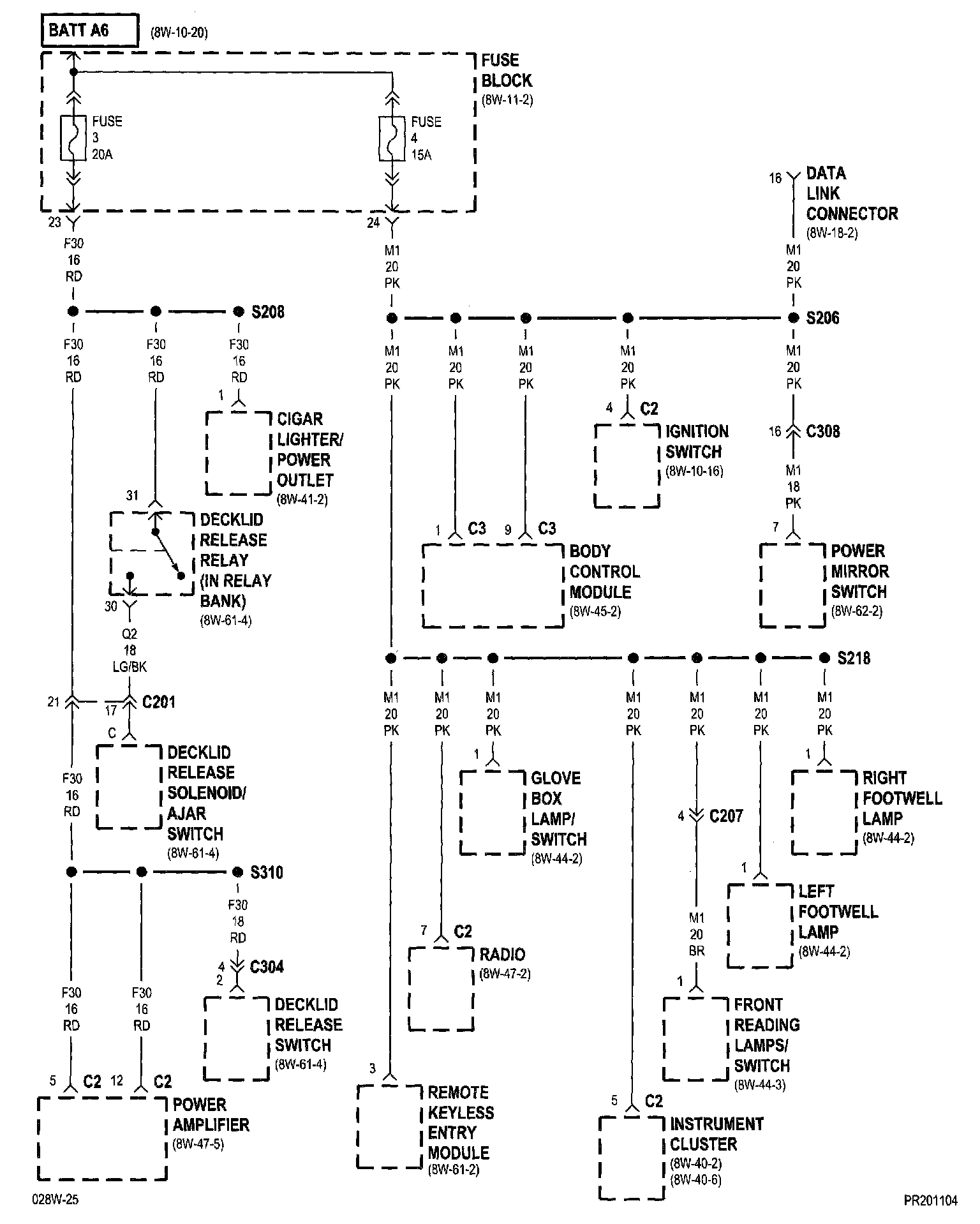

8w-11-6:

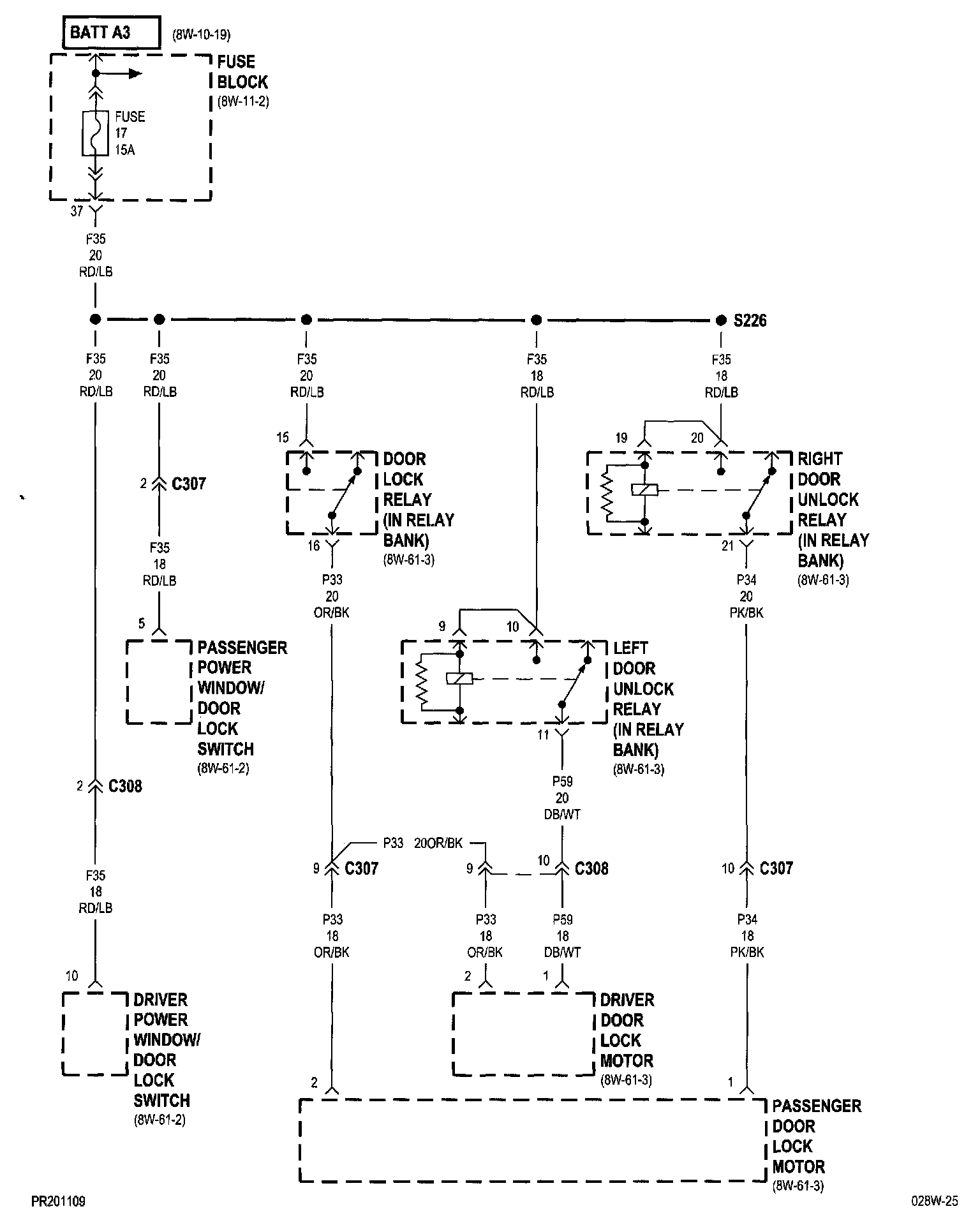

8w-11-7:

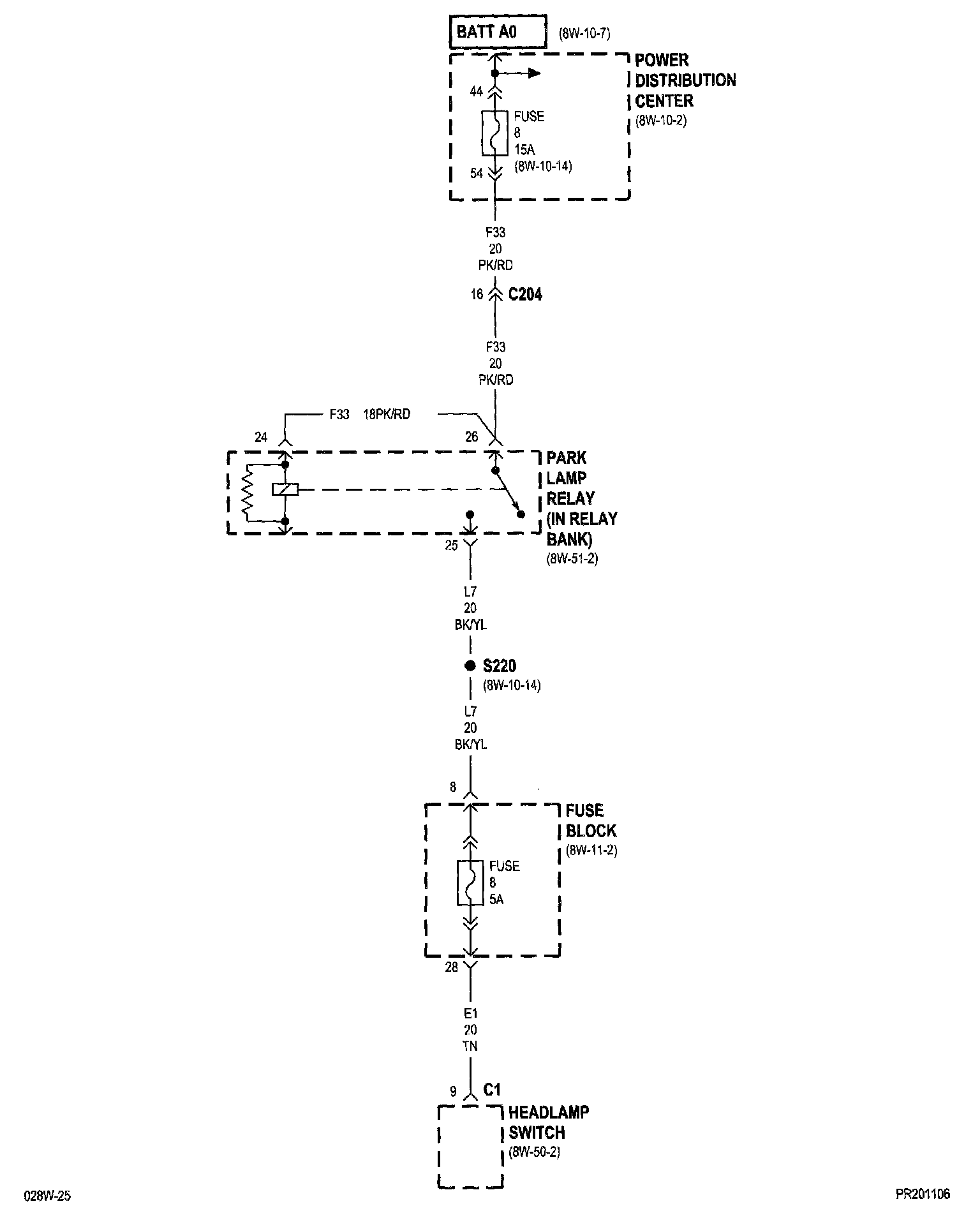

8w-11-8:

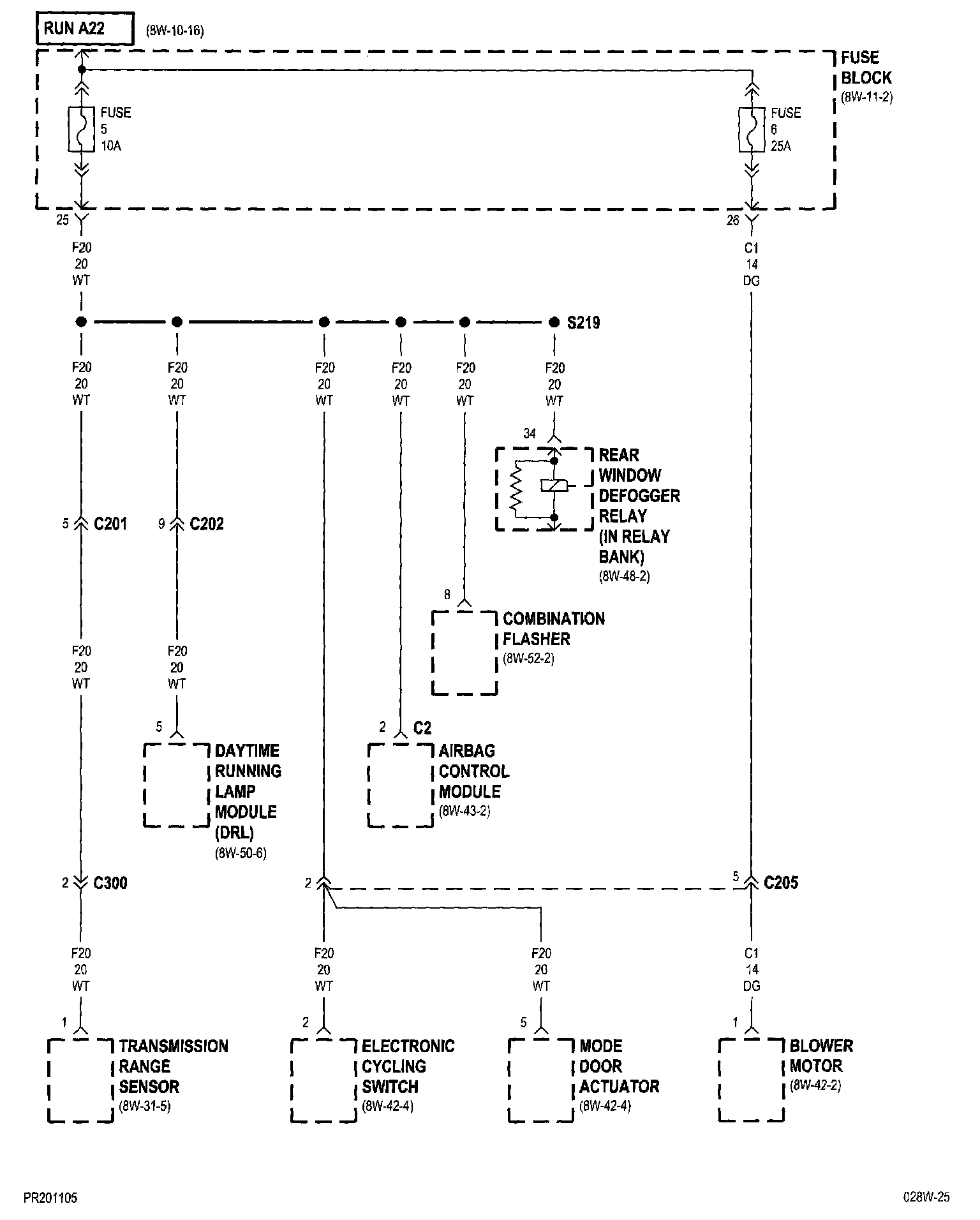

8w-11-9:

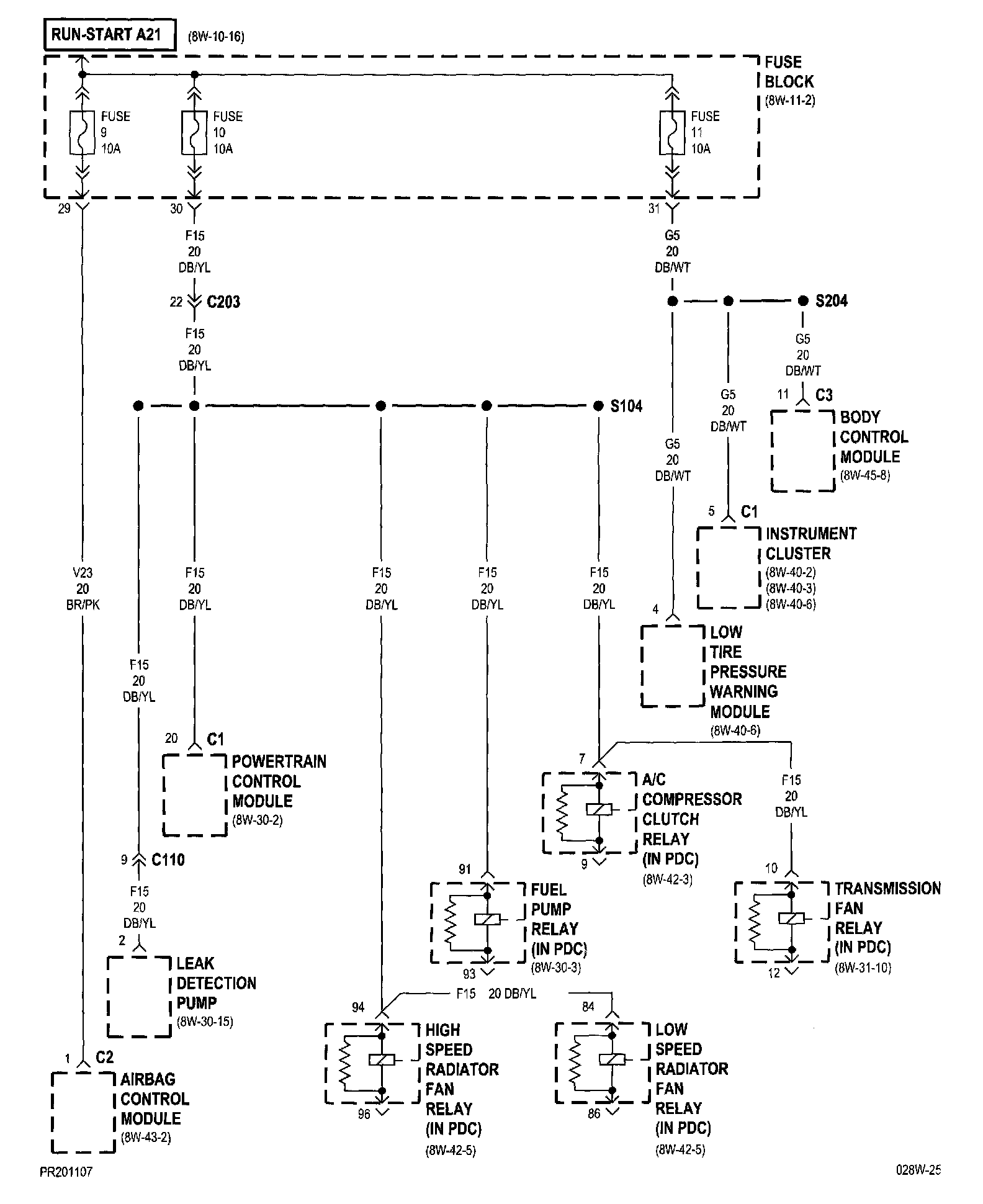

8w-11-10:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams Electrical Diagrams
