Flex Plate: Service and Repair

PLATE - FLEX

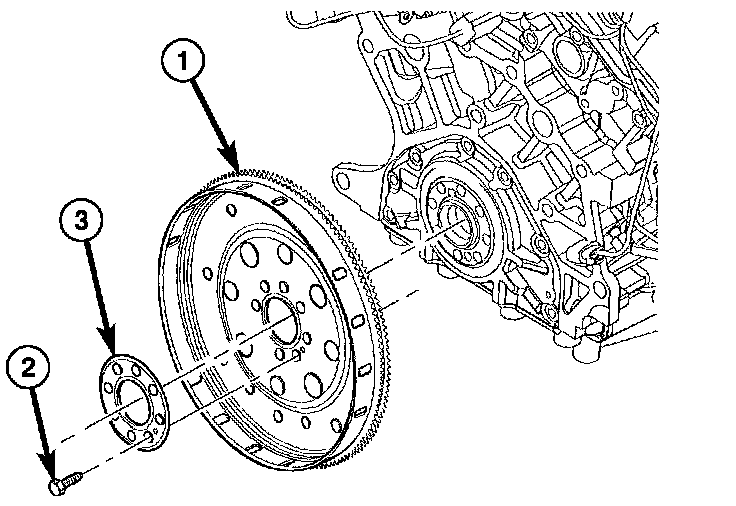

REMOVAL
1. Remove the transmission.





2. Remove flex plate attaching bolts (2).
3. Remove the flex plate (1).

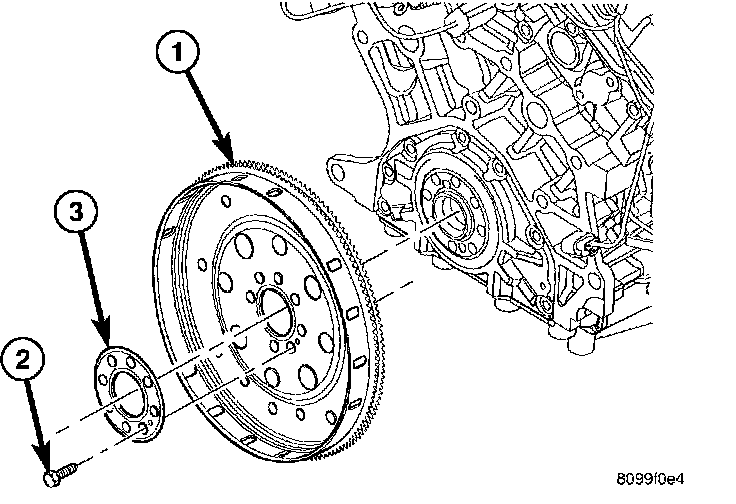

INSTALLATION





1. Position flex plate (1) with backing plate (3) on the crankshaft.
2. Apply Mopar(R) Lock & Seal Adhesive to the flex plate bolts (2).
3. Install flex plate bolts (2). Tighten bolts to 95 Nm (70 ft. lbs.).
4. Install the transmission.
