Body - Front Door Glass Service Procedure Revision
NUMBER: 23-032-05GROUP: Body
DATE: June 4,2005
SUBJECT:
Front Door Glass Service Procedure Revision
MODELS:
2004 - 2005 (CS) Pacifica
DISCUSSION:
The service procedure for removal and installation of the Front Door Glass is being revised.
The revisions are highlighted with **ASTERISKS** and include a revised Step # 5 in the Removal and Installation procedures.
REMOVAL
1. Remove door trim panel. (Refer to 23 - BODY/DOOR - FRONT/TRIM PANEL - REMOVAL).
2. Remove watershield. (Refer to 23 - BODY/DOOR - FRONT/WATERSHIELD - REMOVAL).
3. Remove inner belt molding. (Refer to 23 - BODY/WEATHERSTRIP/SEALS/FDR INNER BELT WEATHERSTRIP - REMOVAL)

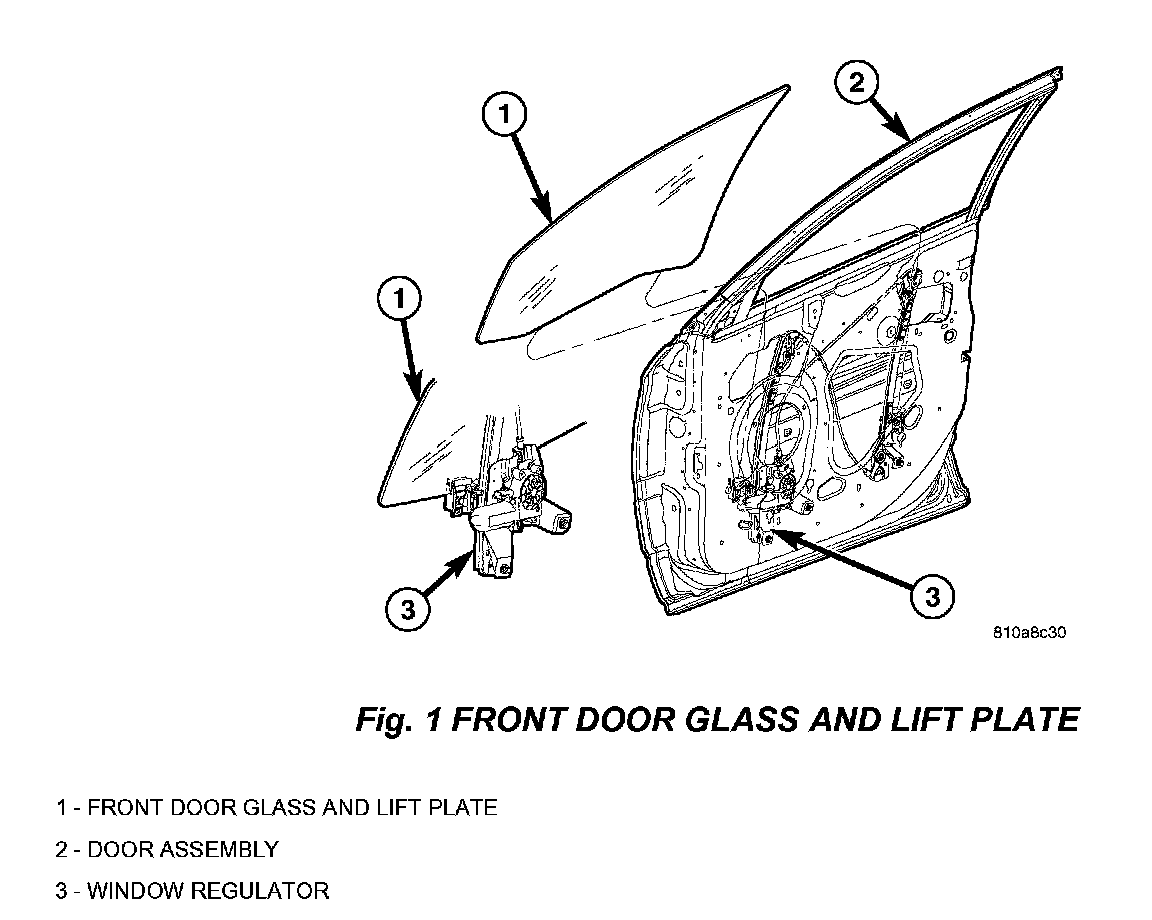

4. Position glass to gain access to front and rear regulator lift plates through access hole in door panel (Fig. 1).
5. **Loosen the glass clamp nuts.**
6. Remove glass from regulator glass brackets.
7. Disengage glass from glass run weatherstrip.
8. Insert front of glass between glass run channel and outer door panel.
9. Lift glass upward and out of exterior side of the opening at top of door.
10. Remove glass from vehicle.
INSTALLATION
1. Place glass in window opening with front inserted between run channel and outer door panel.
2. Lower glass downward into door.
3. Insert ends of glass into glass run weatherstrip channels at front and rear of door.
4. Place glass in position on regulator clamp brackets.
5 **Tighten the glass clamp nuts to 9.0 N-m (80 in. lbs.).**
6. Install inner belt molding. (Refer to 23 - BODY/WEATHERSTRIP/SEALS/FDR INNER BELT WEATHERSTRIP - INSTALLATION).
7. Verify door glass operation and fit.
8. Install watershield. (Refer to 23 - BODY/DOOR - FRONT/WATERSHIELD - INSTALLATION).
9. Remove door trim panel. (Refer to 23 - BODY/DOOR - FRONT/TRIM PANEL - INSTALLATION).
POLICY:
Information Only
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
