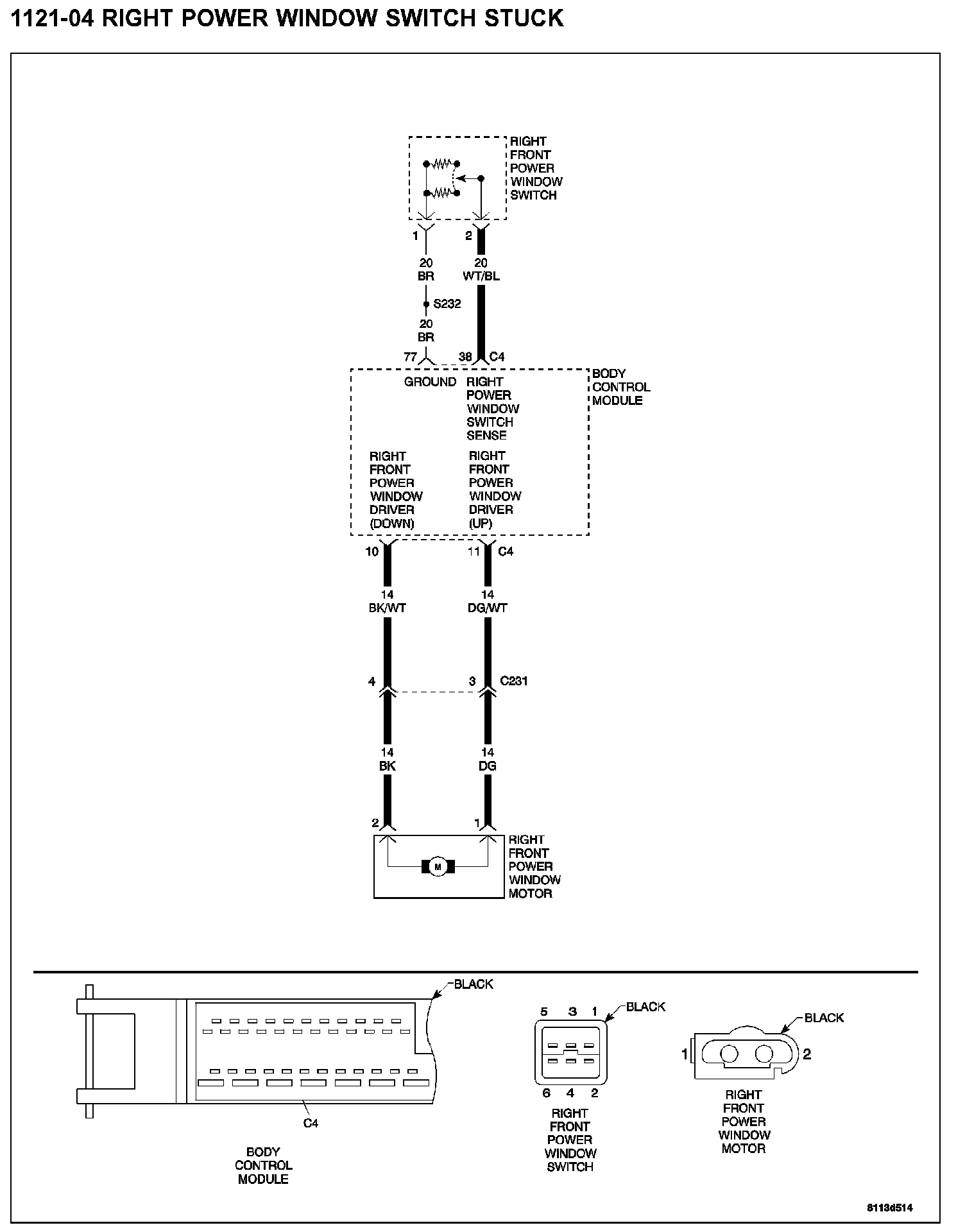

1121-04 RIGHT POWER WINDOW SWITCH STUCK1121-04 Right Power Window Switch Stuck:
WHEN MONITORED
With the ignition on.
SET CONDITION
The Body Control Module (BCM) detects a stuck Right Power Window Switch, or a short to ground on the Right Power Window Switch Sense circuit.
POSSIBLE CAUSES
- Right power window switch sense circuit short to ground
- Right power window switch
1. POWER WINDOW SWITCH SENSE CIRCUIT SHORT TO GROUND
Turn the ignition off.
Disconnect the BCM harness connector.
Disconnect the Right Power Window Switch harness connector.
NOTE: Check connector - Clean/repair as necessary.
Measure the resistance between ground and the Right Power Window Switch Sense circuit.
Q: Is the resistance below 100k ohms?
YES: Repair the Right Power Window Switch Sense circuit for a short to ground.
Perform BODY VERIFICATION TEST. Body Verification Test
NO: Replace the Right Power Window Switch.
Perform BODY VERIFICATION TEST. Body Verification Test
