P2009 - SHORT RUNNER SOLENOID CIRCUIT LOWP2009 - Short Runner Solenoid Circuit Low:
WHEN MONITORED
Engine running
SET CONDITION
When the PCM is commanding the Short Runner Valve Solenoid on and doesn't detect voltage at the control circuit.
POSSIBLE CAUSES
- Short runner valve solenoid control circuit open
- Short runner valve solenoid control circuit short to ground
- Engine control relay output circuit open
- Short runner valve solenoid
- Powertrain control module
DIAGNOSTIC TEST
1. CHECK FOR CURRENT DTC
Turn the ignition on.

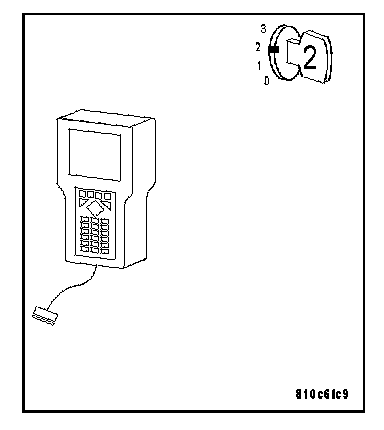

With the DRB III(R), read PCM DTCs.
Q: Is this DTC present?
YES: For complete diagnosis of this DTC, refer to (P2008) SHORT RUNNER SOLENOID CIRCUIT. P2008
NO: Go To 2
2. INTERMITTENT WIRING AND CONNECTORS
The conditions necessary to set this DTC are not present at this time.
NOTE:

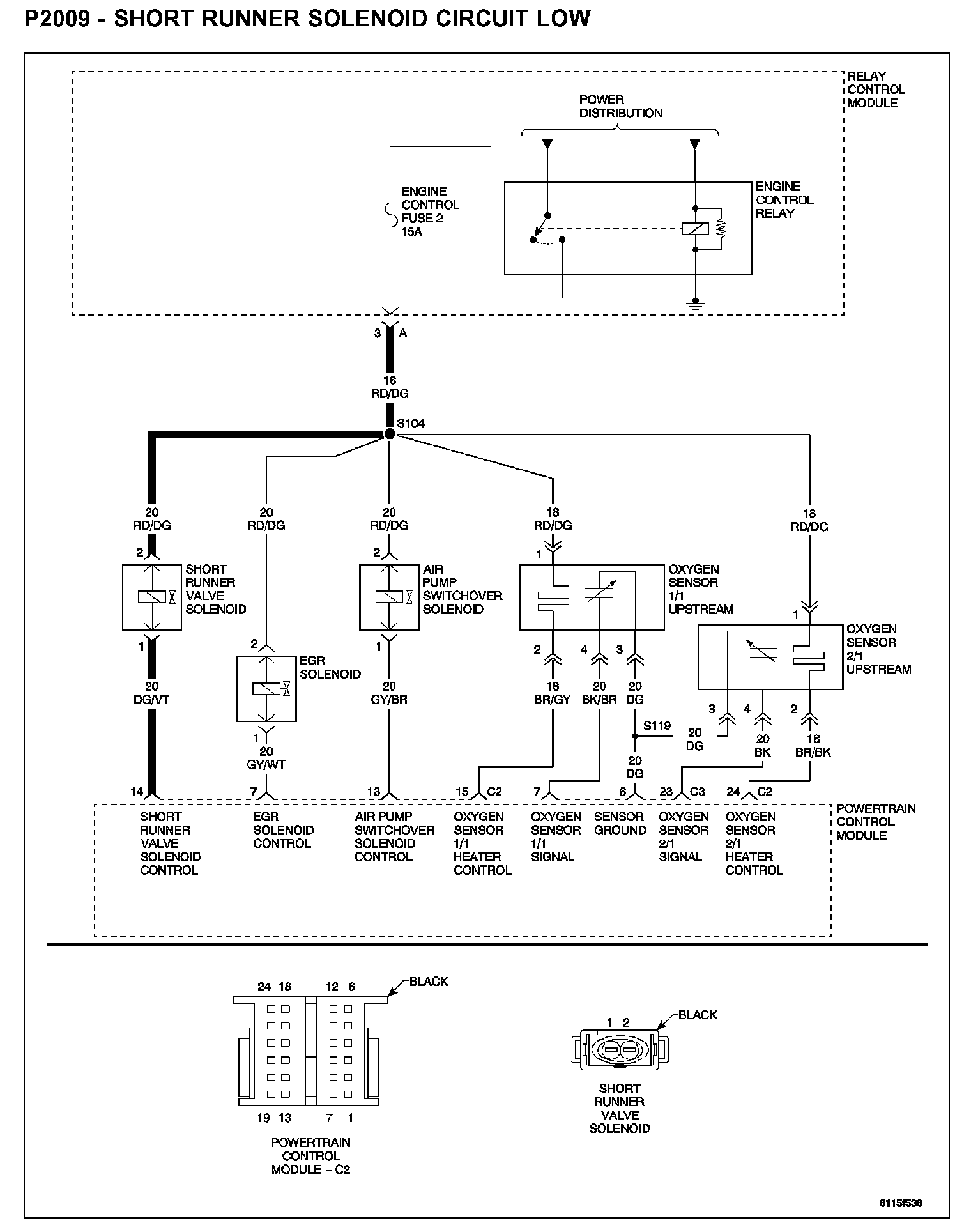

- Check connectors - Clean/repair as necessary. Poor pin to terminal connections can set DTCs. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors specific to this DTC. Wiggle the wires while checking for shorts and open circuits.
- Check for any Technical Service Bulletins that may apply.
Q: Were there any problems found?
YES: Repair as necessary.
Perform POWERTRAIN VERIFICATION TEST - VER 2. Powertrain Verification Test - Ver 2
NO: The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition.
