Front Position Lamp

FRONT POSITION LAMP

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the headlamp unit.

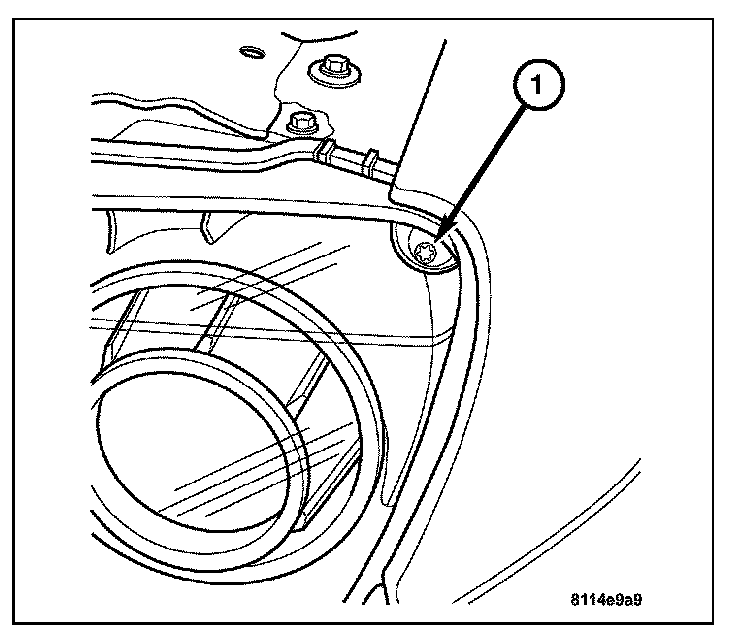

3. Rotate the front position lamp socket (1) counterclockwise and pull the bulb from the socket.

INSTALLATION

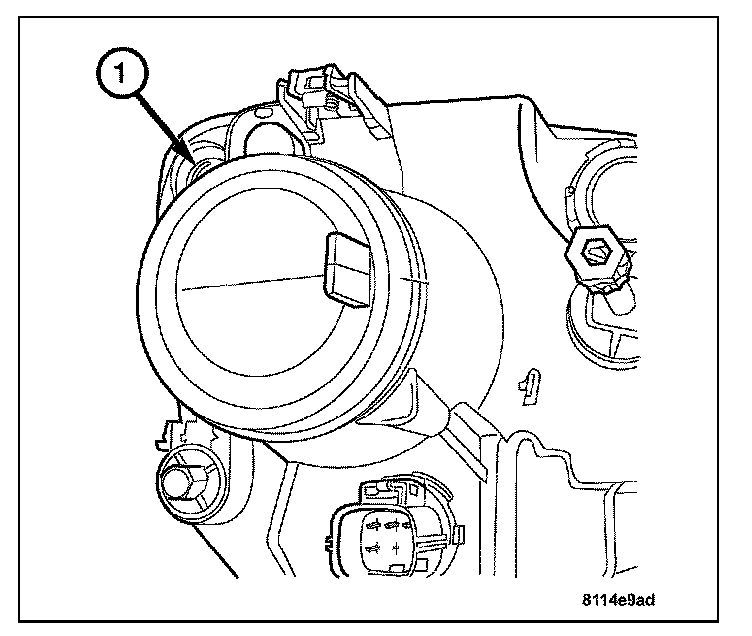

1. Press the front position lamp bulb into the socket and insert it into the headlamp unit (1), rotating clockwise to lock.
2. Install the headlamp unit.
3. Connect the negative battery cable.
