Rear Carrier Bushing

REAR CARRIER BUSHING

REMOVAL

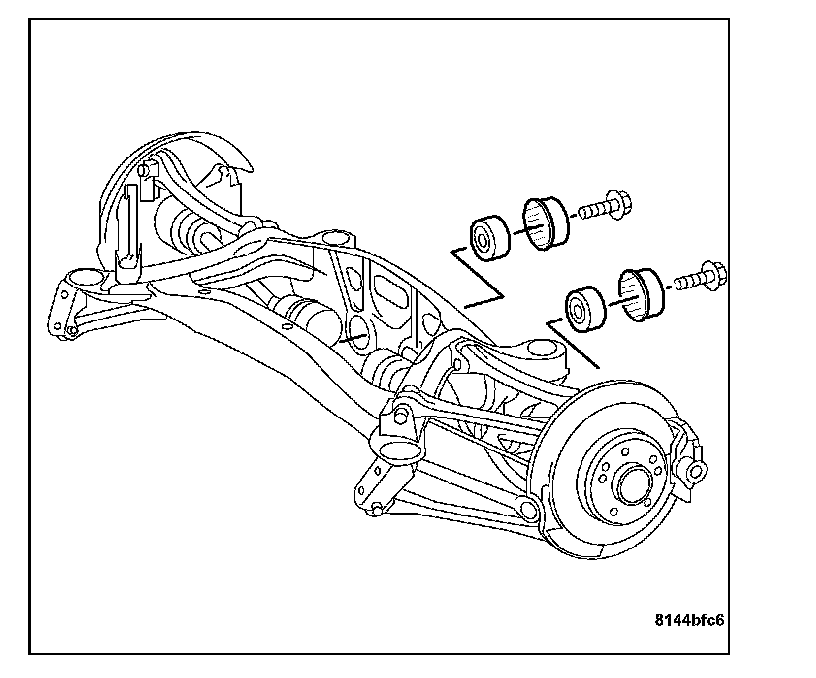

1. Remove the rear axle carrier.
2. Press the rear axle carrier bushing out of the rear axle carrier by using special tool 9110.

REAR DIFFERENTIAL HOUSING BUSHING





1. Remove the rear differential housing.

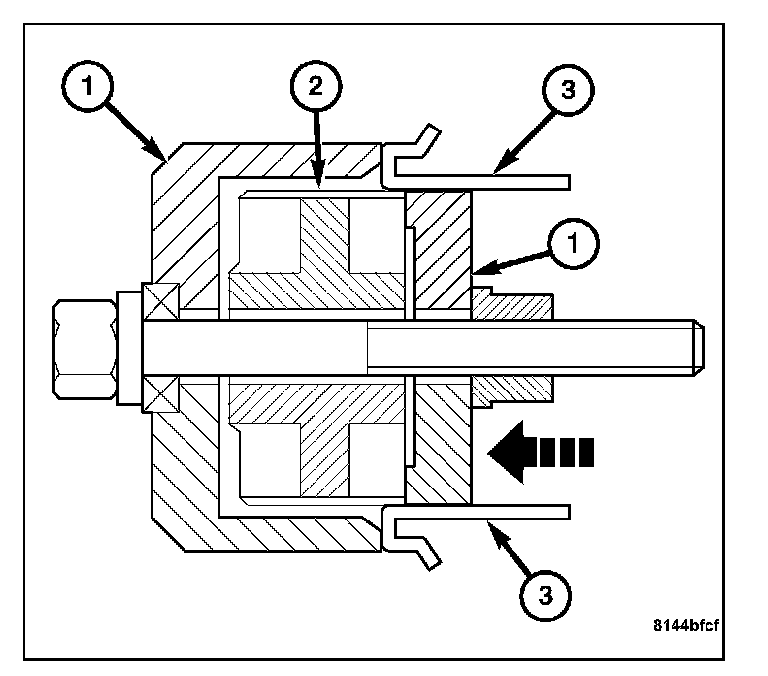

2. Remove the differential housing bushing (2) from the rear axle carrier (3) by drawing the rear differential housing bushing (2) out towards the rear differential housing using special tool 9113 (1).





3. Remove the differential housing bushing, differential housing bushing cup and bolt from the rear axle carrier.

INSTALLATION

NOTE: Apply some grease to the rubber surface of the bushing to aid in installation.

1. Draw the rear axle carrier bushing into the rear axle carrier using special tool 9110.
2. Install the rear axle carrier.
