Rear Differential Housing Bushing

REAR DIFFERENTIAL HOUSING BUSHING





1. Install the rear differential housing bushing into the rear axle carrier.

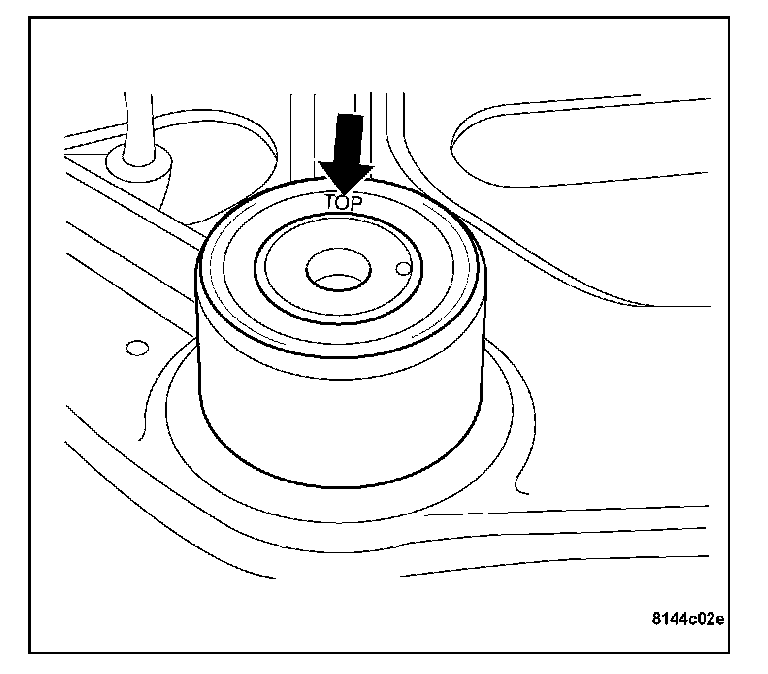

2. Rotate the rear differential housing bushing so that the word "top" is facing the top of the rear axle carrier.

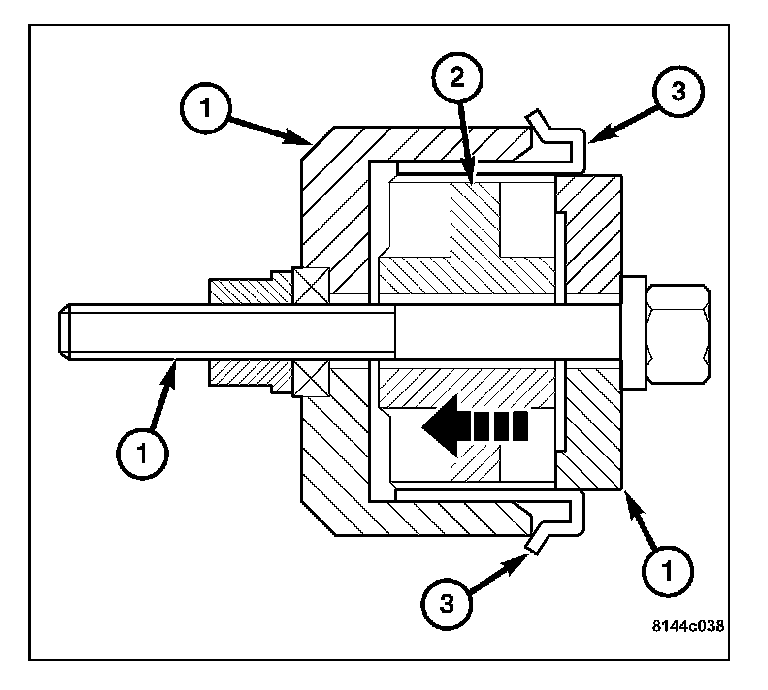

3. Draw the rear differential housing bushing (2) into the rear axle carrier (3) using special tool 9113 (1) until the special tool (1) touches the rear axle carrier (3).

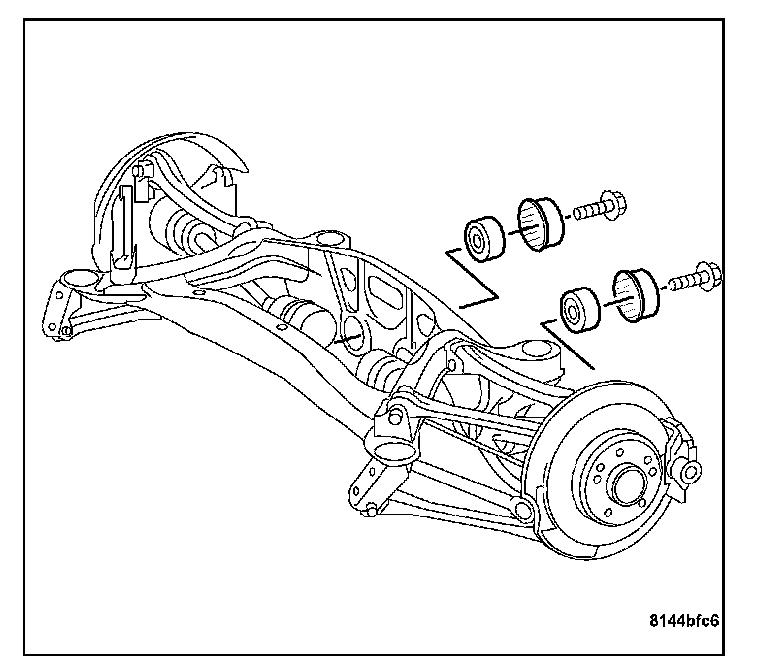

4. Install the rear axle carrier into the vehicle.
