Automatic Transmission/Transaxle

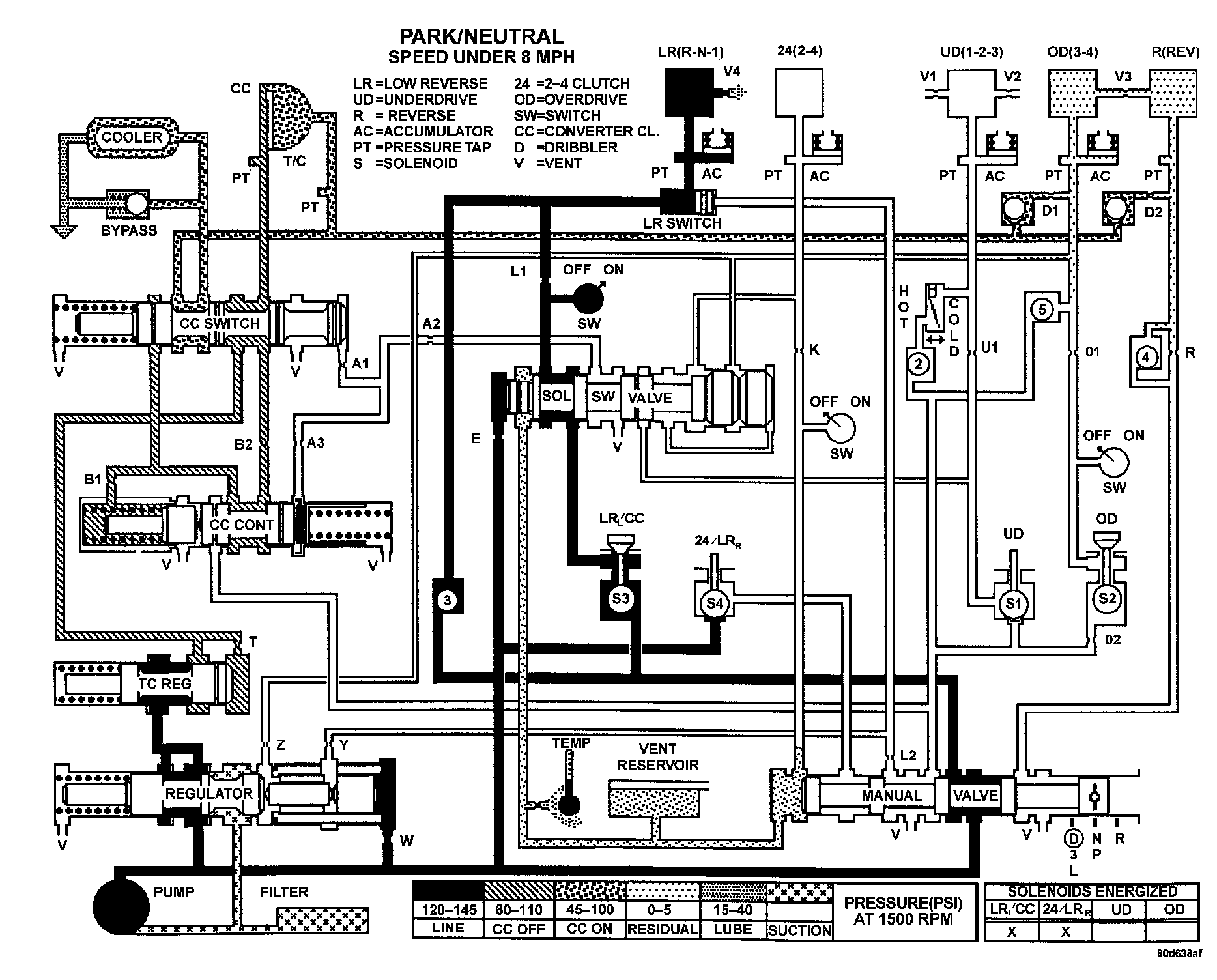

Park/Neutral:

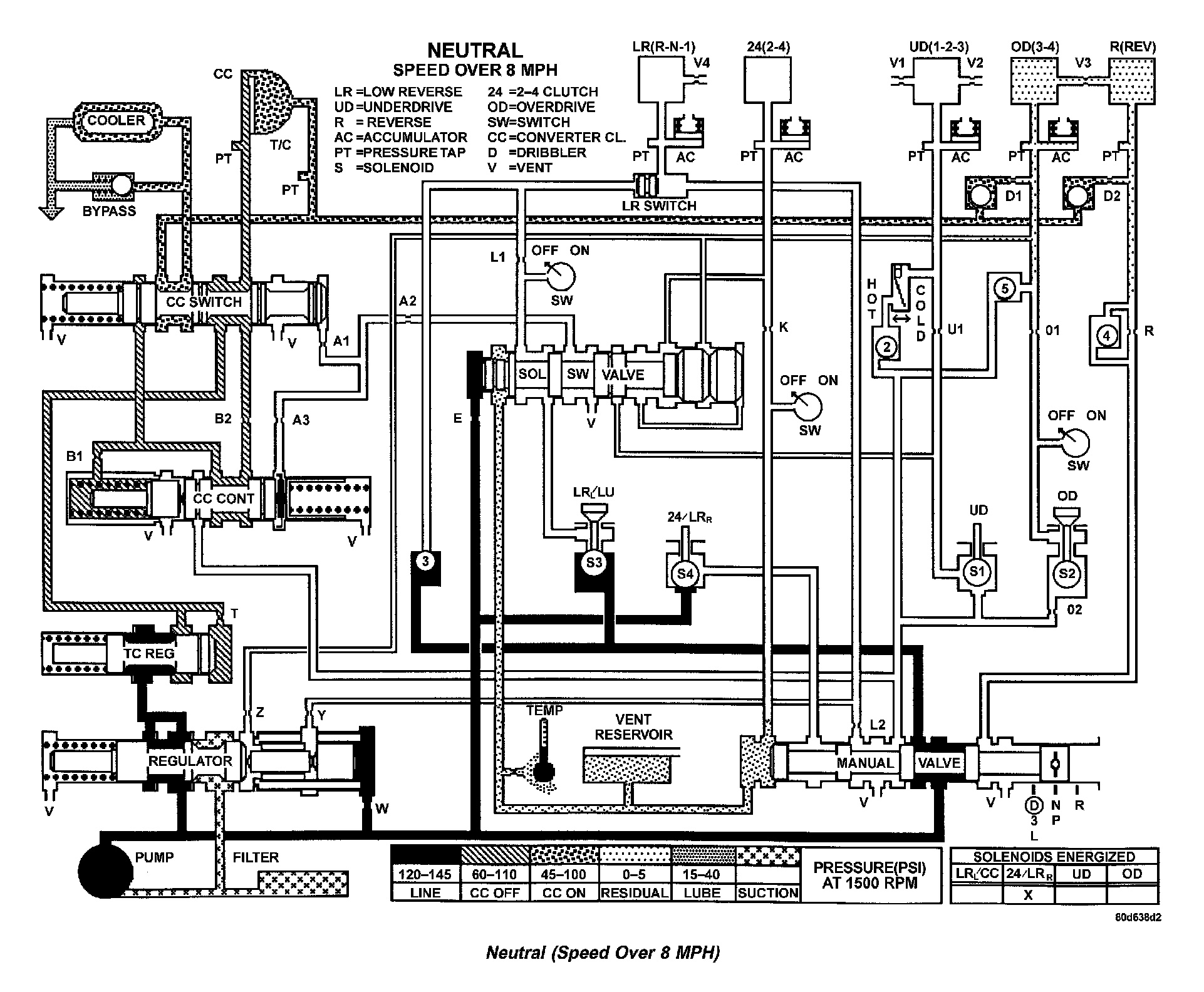

Neutral:

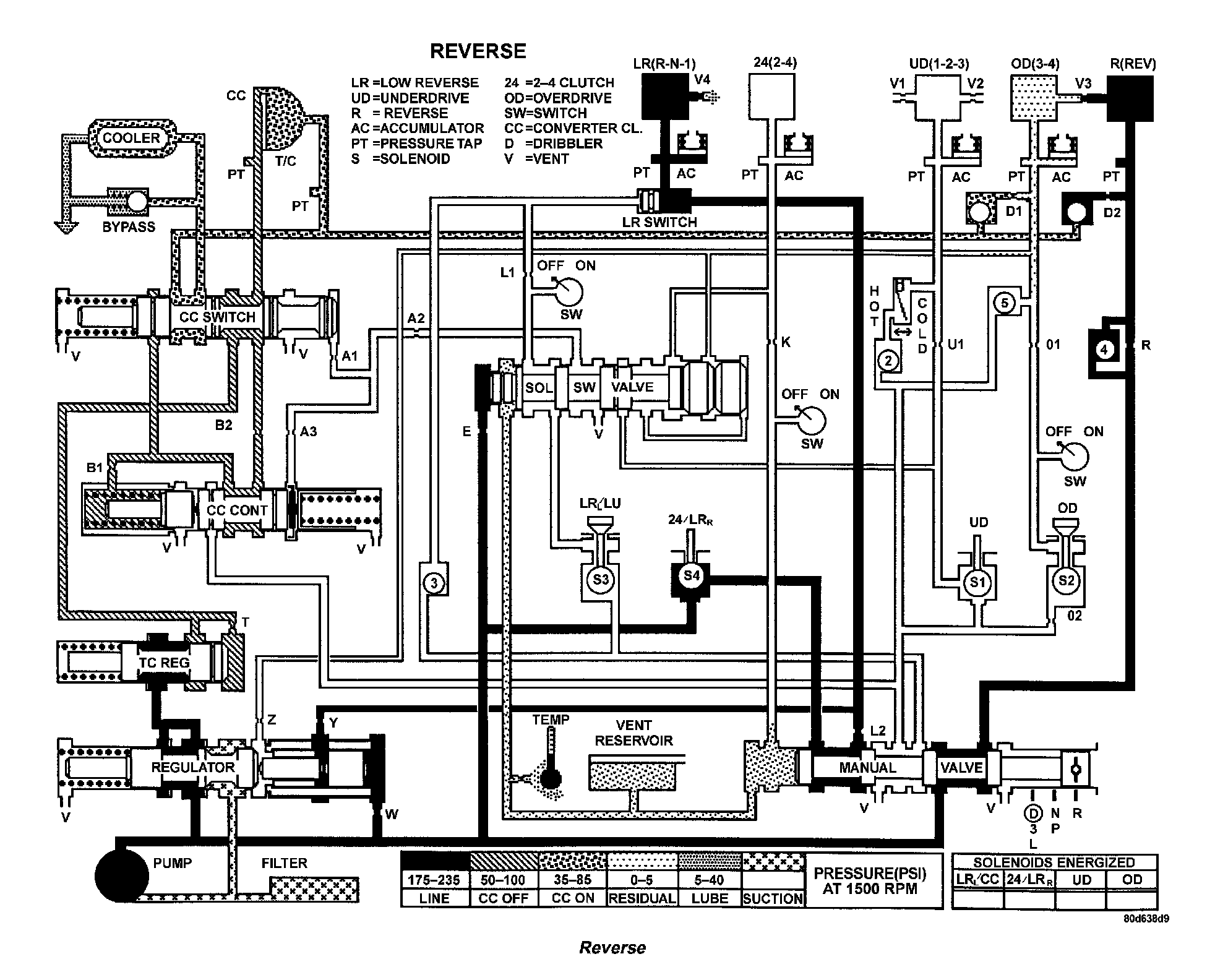

Reverse:

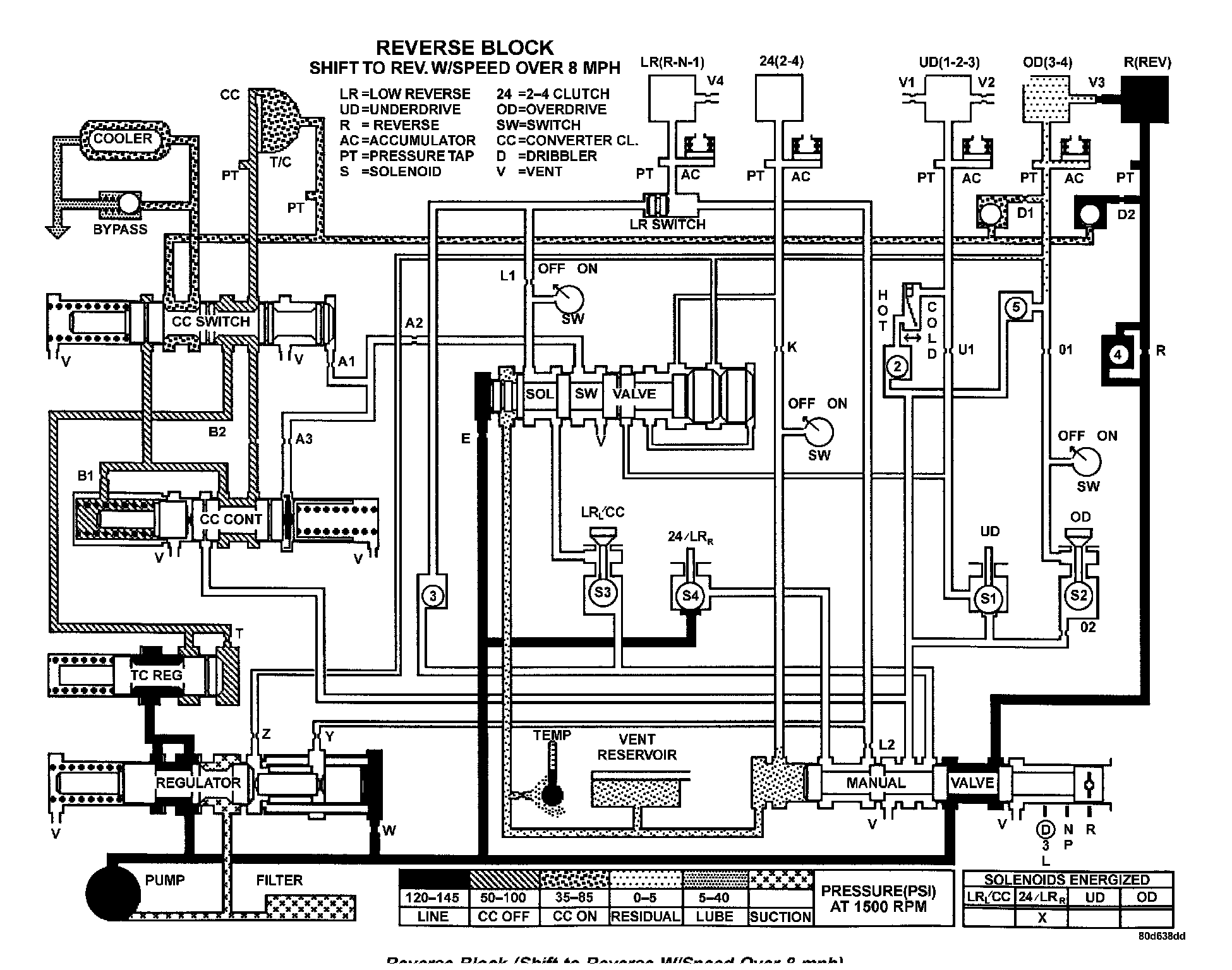

Reverse Block:

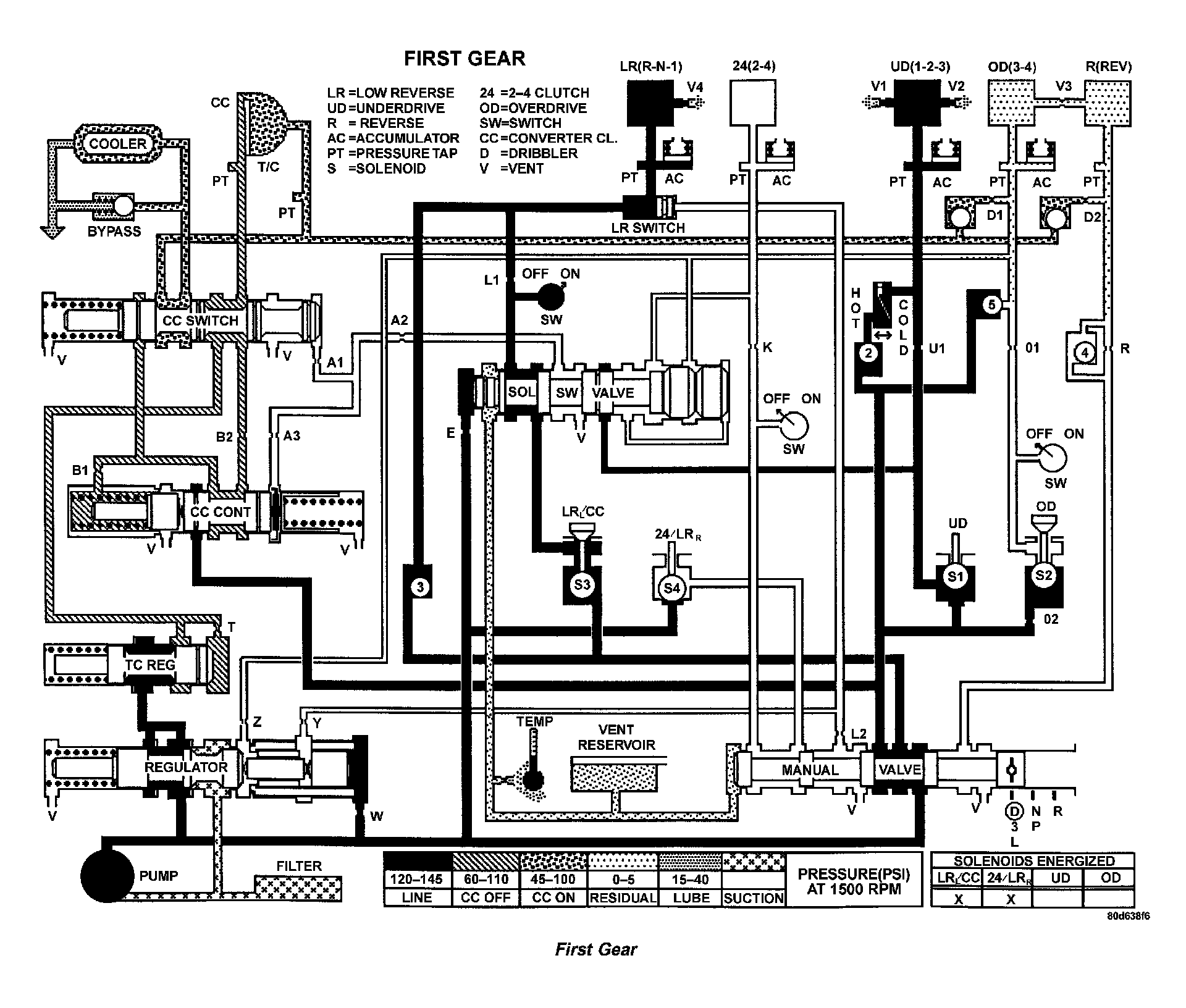

First Gear:

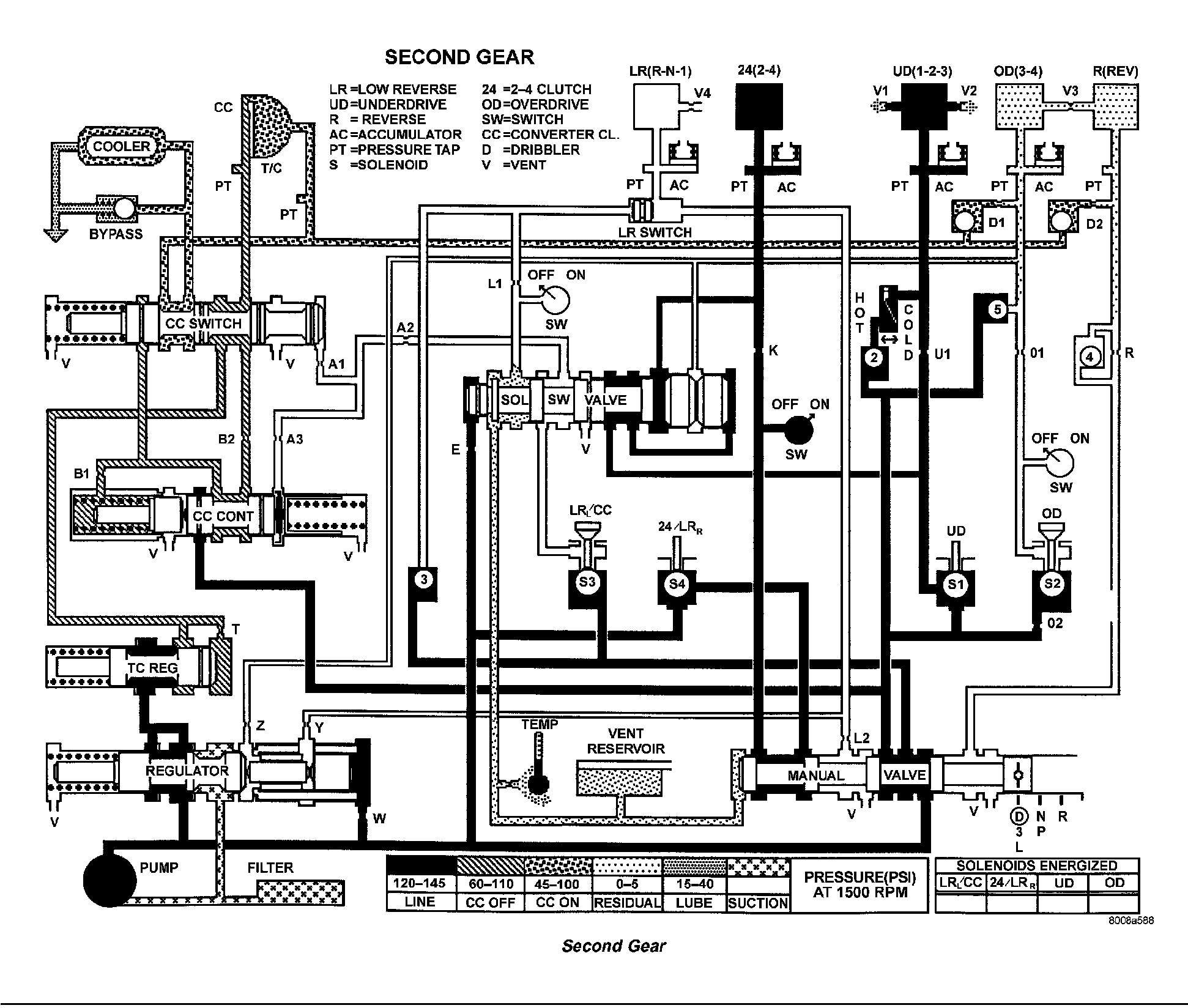

Second Gear:

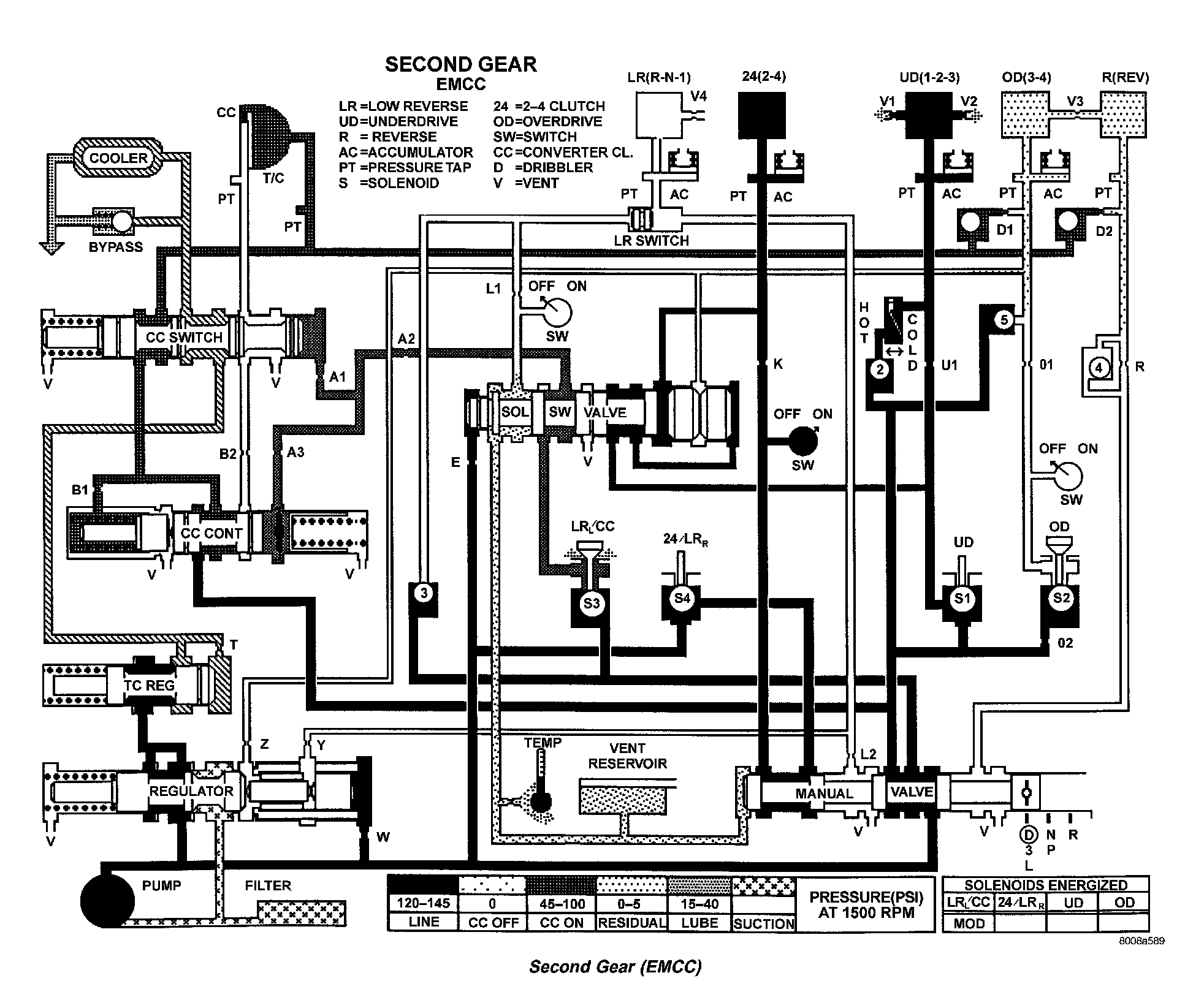

Second Gear EMCC:

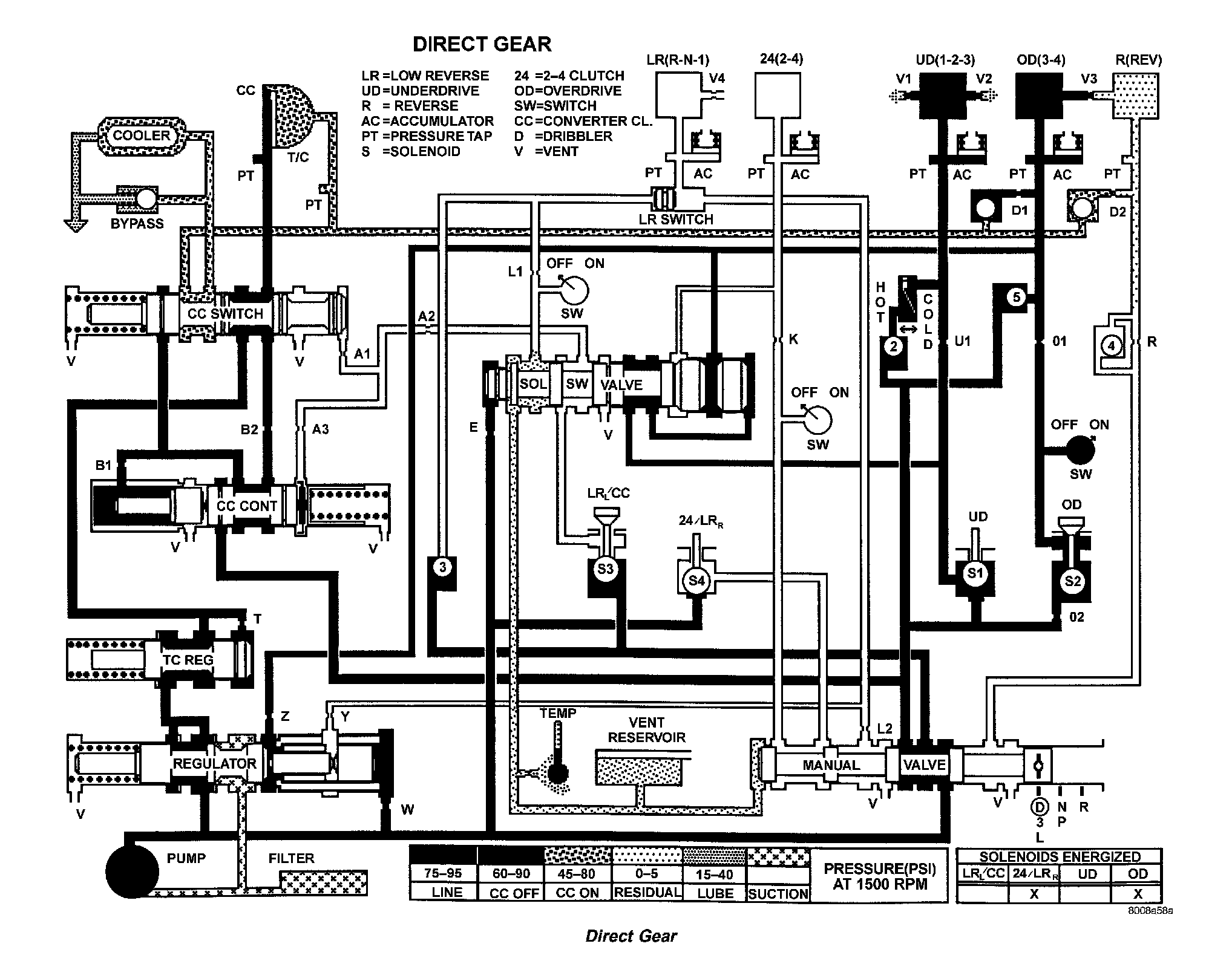

Direct Gear:

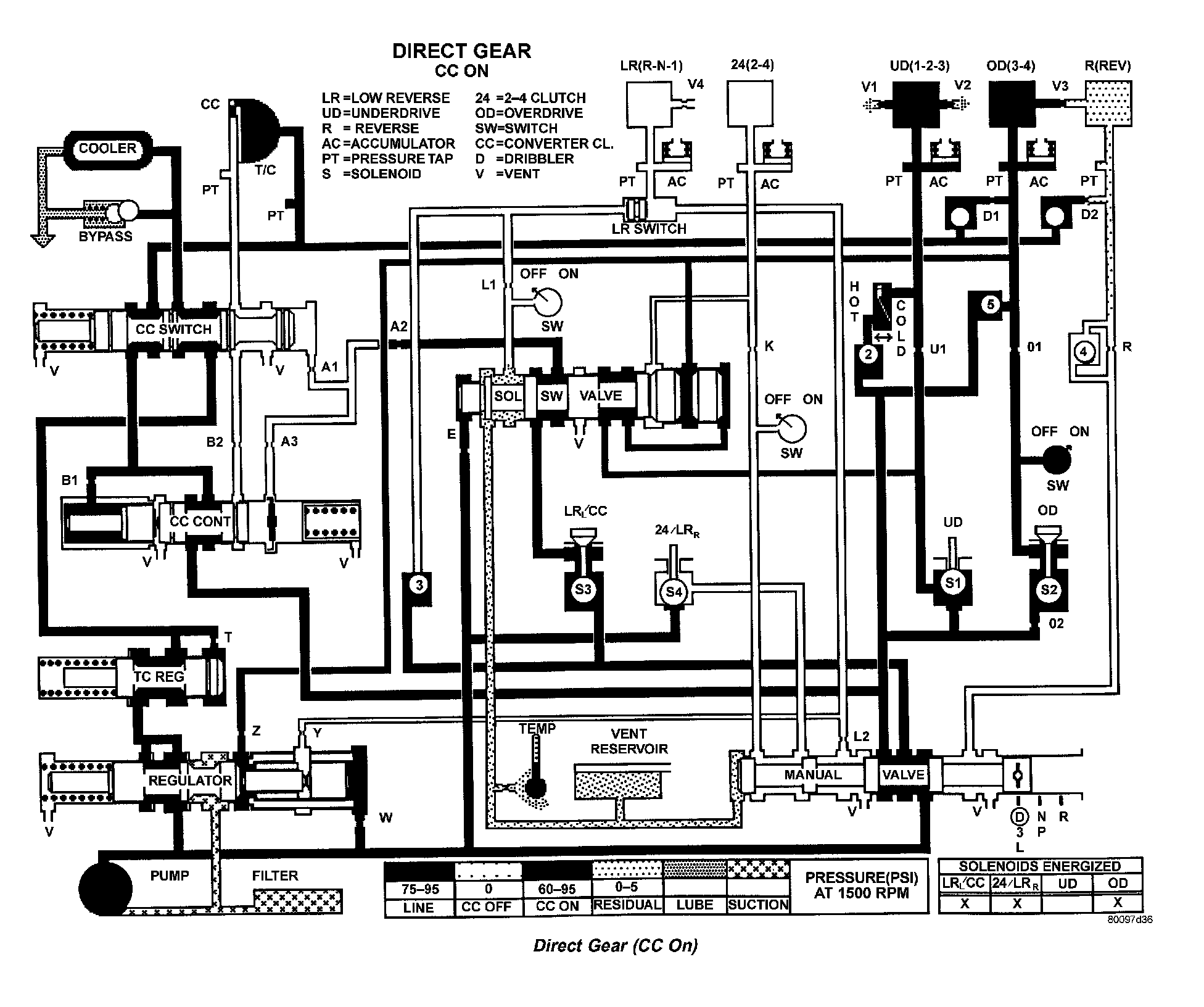

Direct Gear CC On:

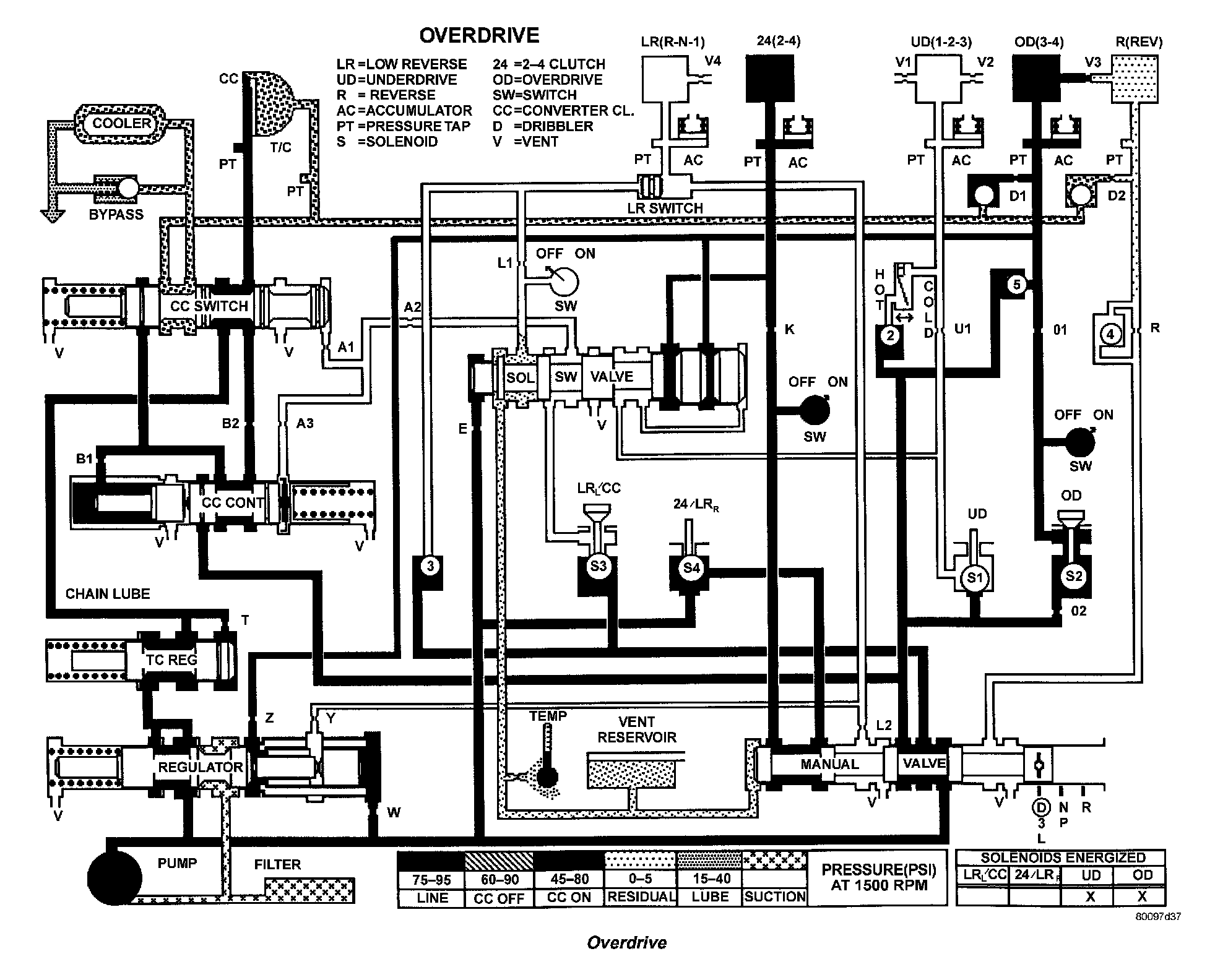

Overdrive:

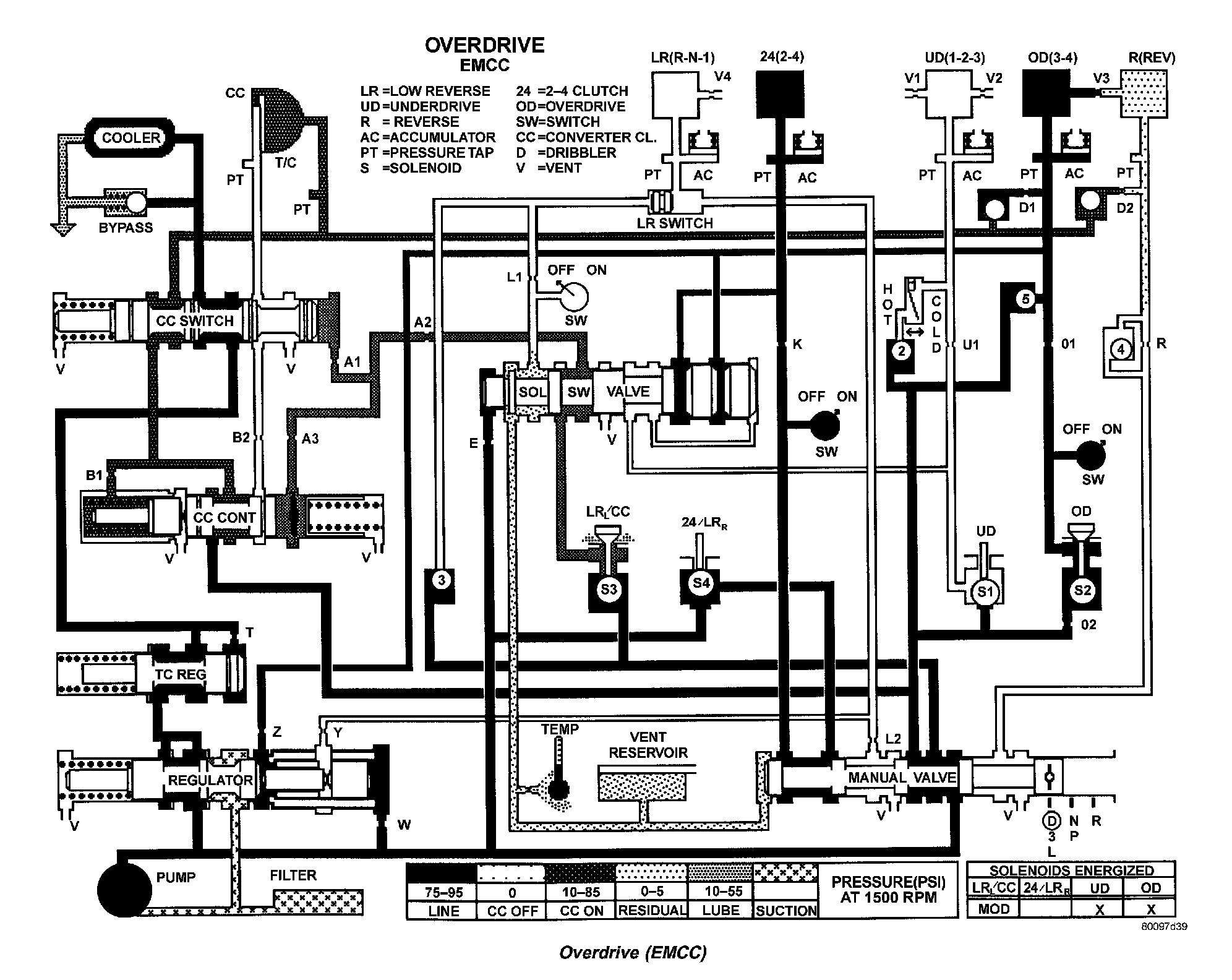

Overdrive EMCC:

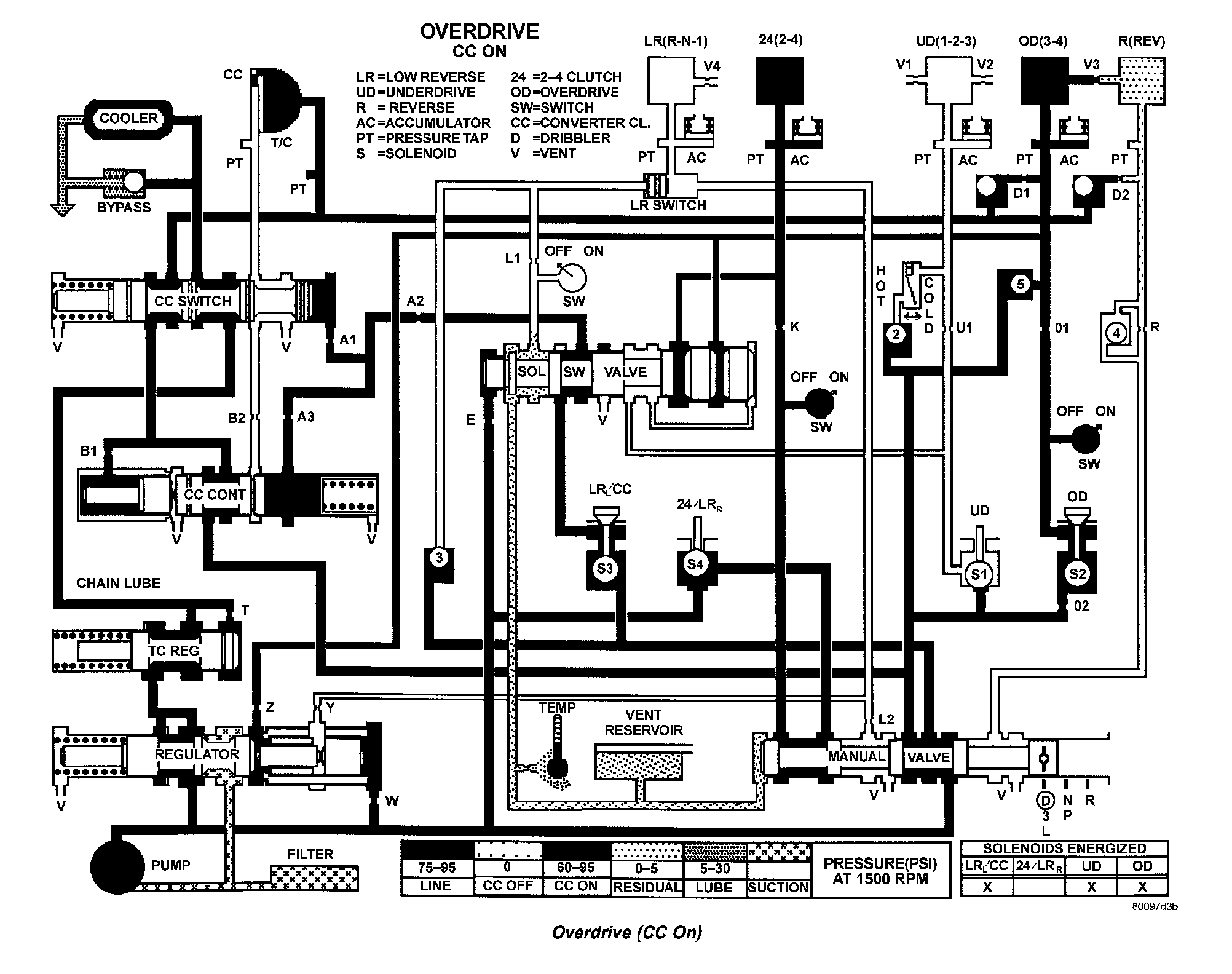

Overdrive CC On:
