Passenger Airbag Squib

Component ID: 216

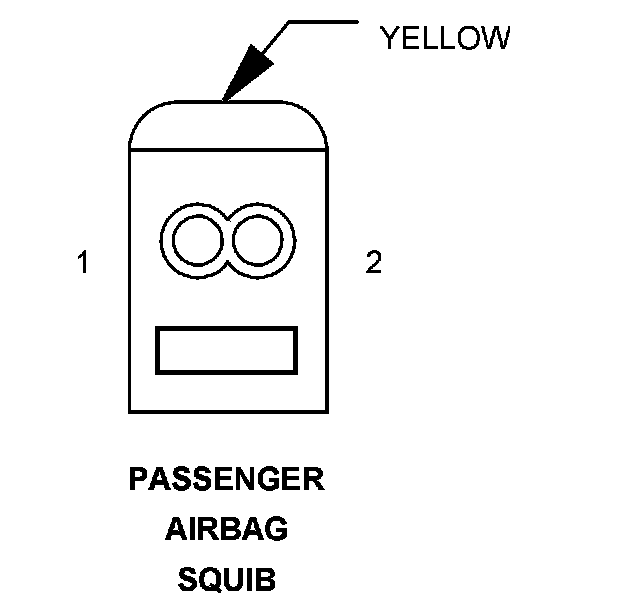

Component : PASSENGER AIRBAG SQUIB

Connector:
Name : PASSENGER AIRBAG SQUIB
Color : YELLOW
# of pins : 2




Pin Circuit Description
1 20BL/DG PASSENGER SQUIB LINE 2
2 20BR/DG PASSENGER SQUIB LINE 1
