Center Air Nozzle

CENTER AIR NOZZLE

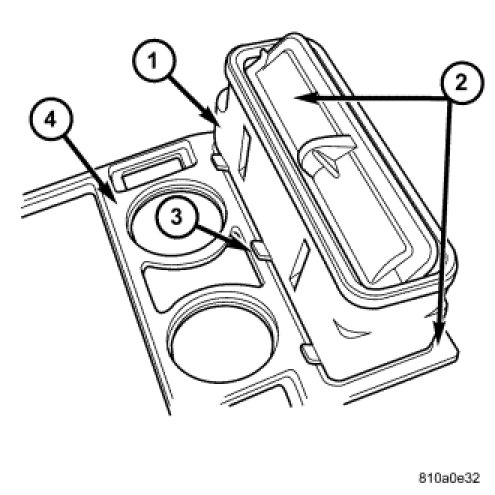

1. Connect the air nozzles catch clips (3).
2. Install the screws (2) attaching the center air nozzle (1) to the center console cover (4).
3. Install the cover on the center console.Center Console - Installation.
