Operation CHARM
: Car repair manuals for everyone.
Home
>>
Daihatsu
>>
1988
>>
Charade L3-0993cc 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
Heating and Air Conditioning

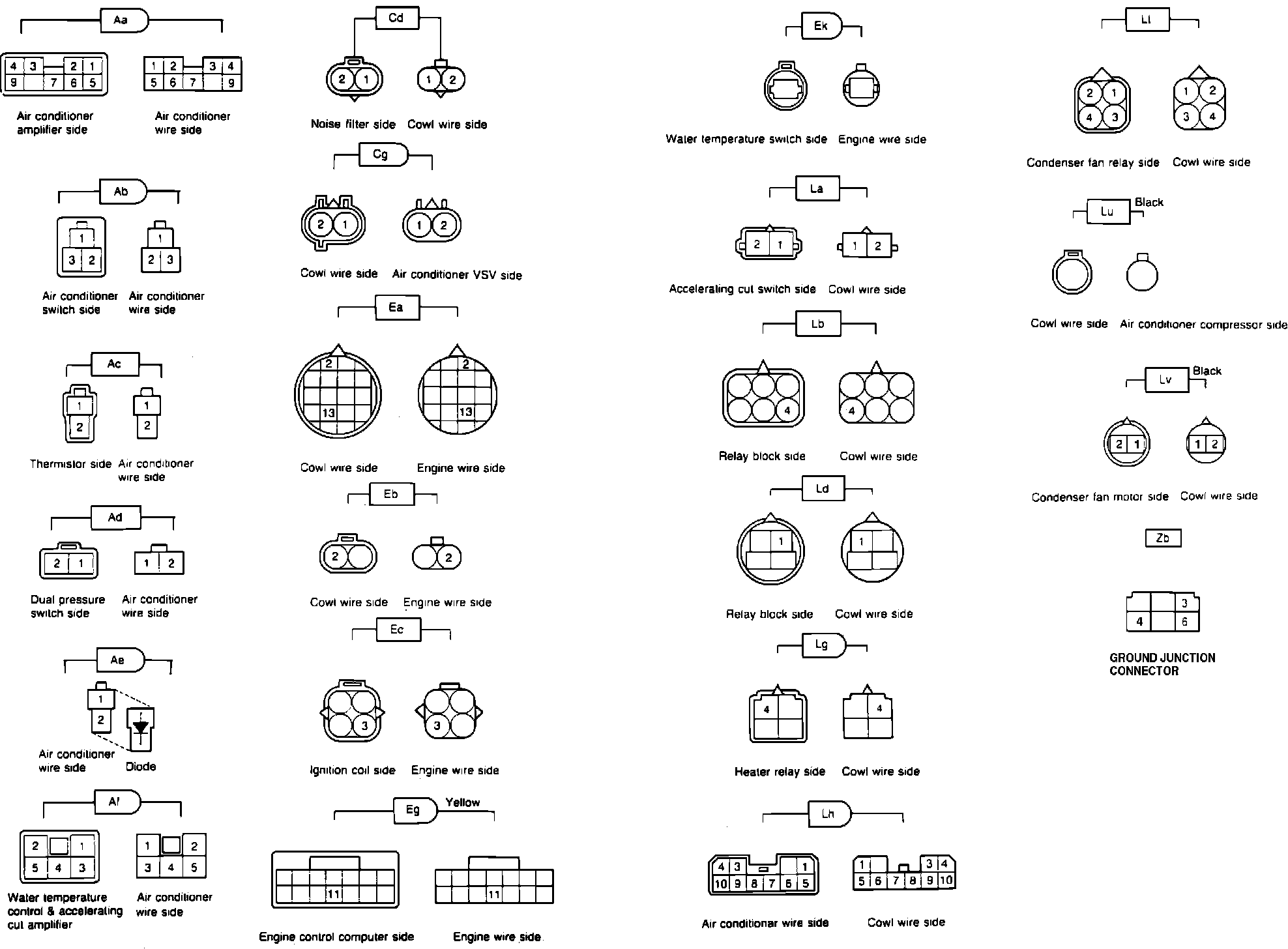

Air Conditioning:

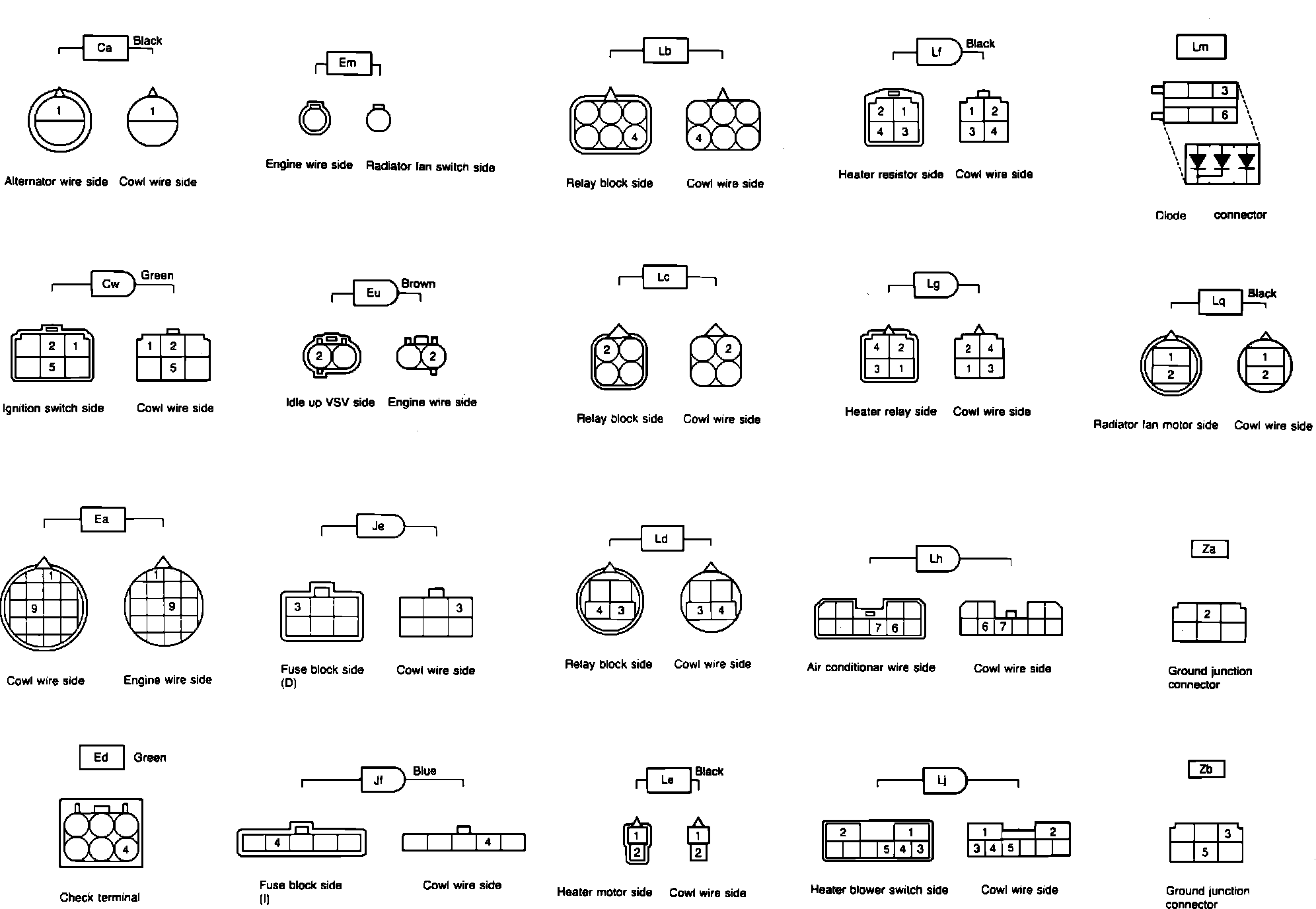

Heater, Cooling Fan:
