Operation CHARM
: Car repair manuals for everyone.
Home
>>
Daihatsu
>>
1991
>>
Charade L4-1295cc 1.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition System

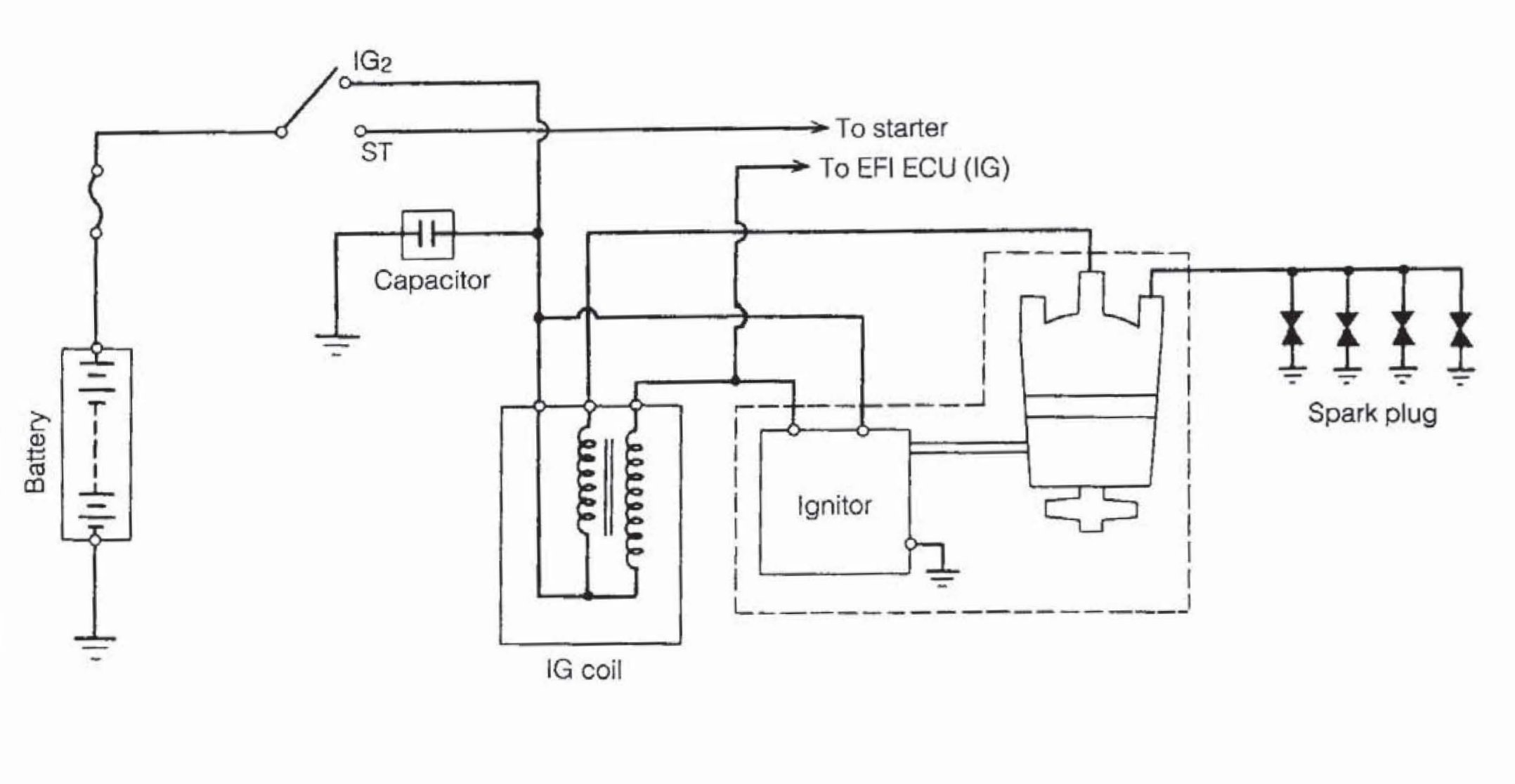

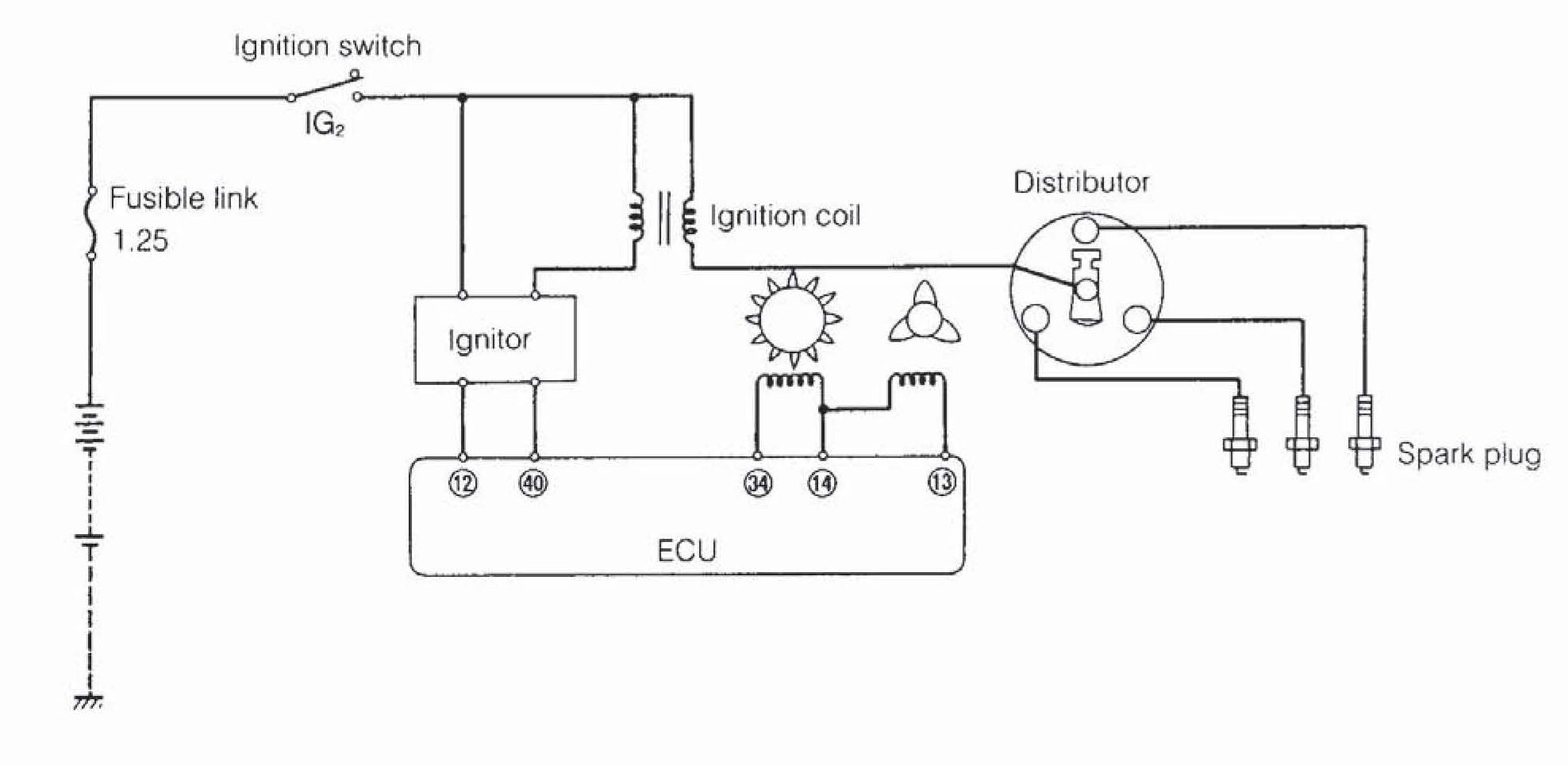

Ignition System
G102:
