Brake Fluid Pressure Sensor/Switch

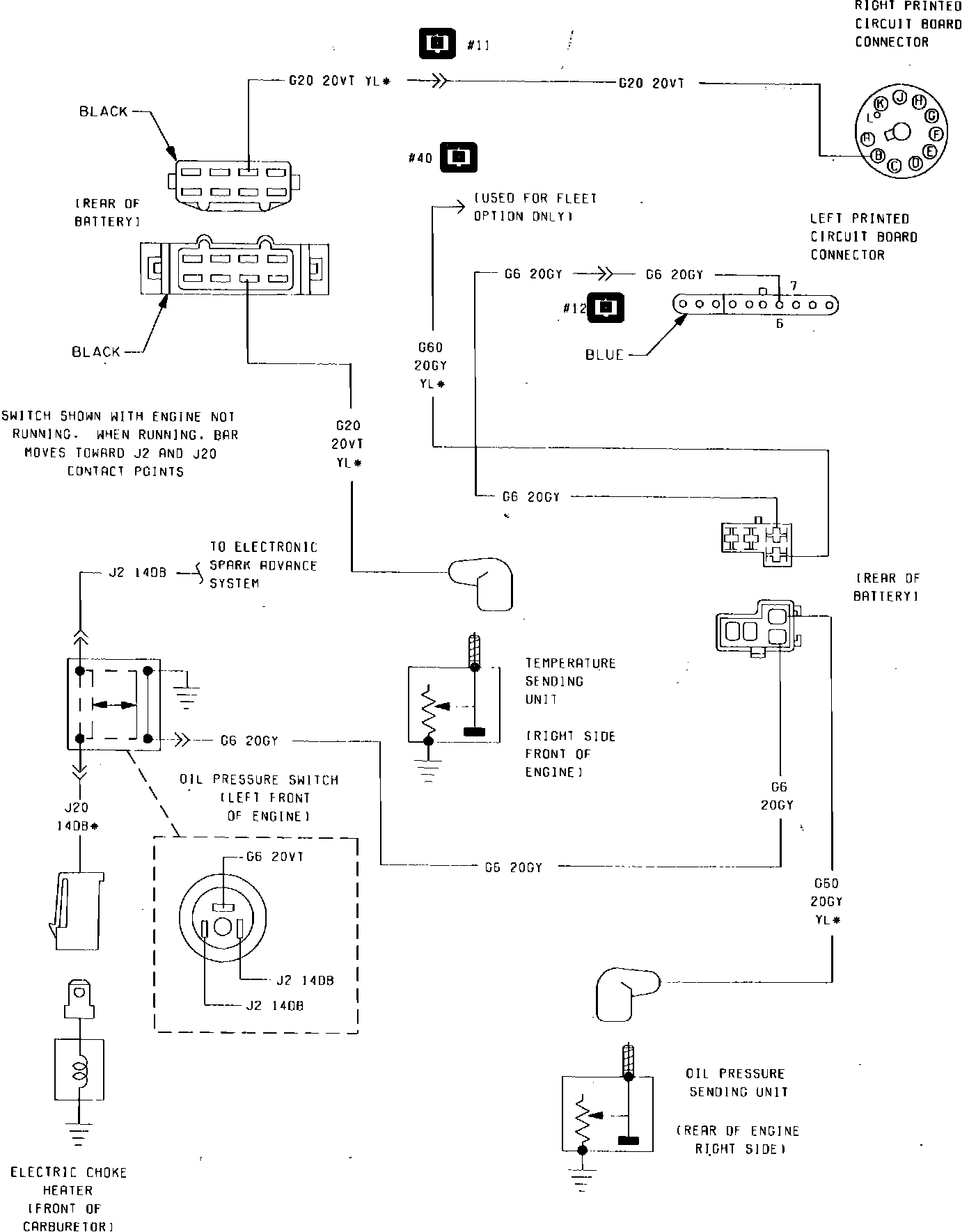

Fig. 13 Brake, Oil & Temperature Switch Wiring Circuit. 1985 W/2.2 Litre Engine:
