Front Console & Electronic Navigator Wiring Circuit

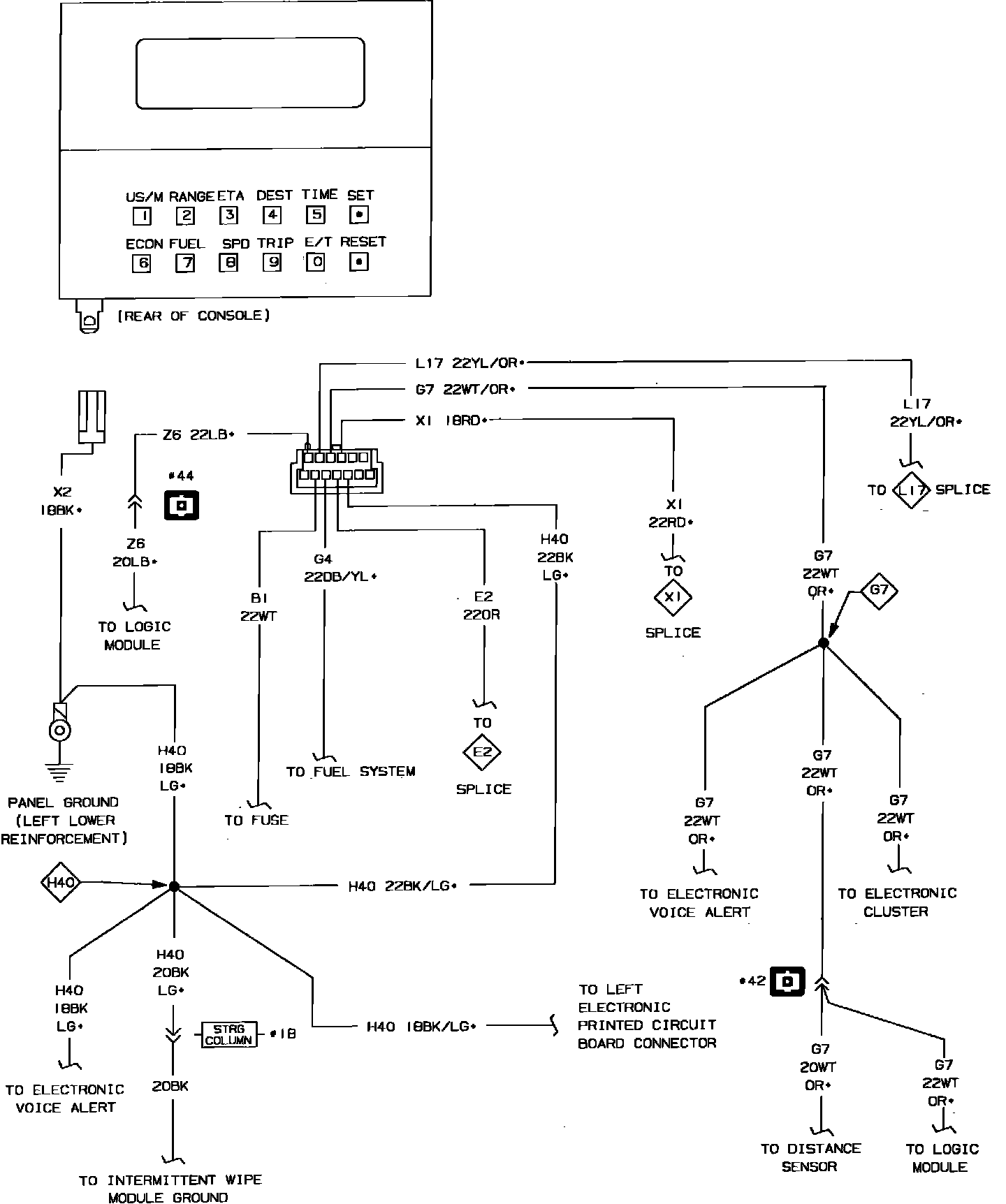

Fig. 29 Front Console & Electronic Navigator Wiring Circuit:
