Home >> Dodge >> 1988 >> Aries L4-135 2.2L SOHC >> Repair and Diagnosis >> Locations >> Splice Locations >> Engine Splices

Engine Splices

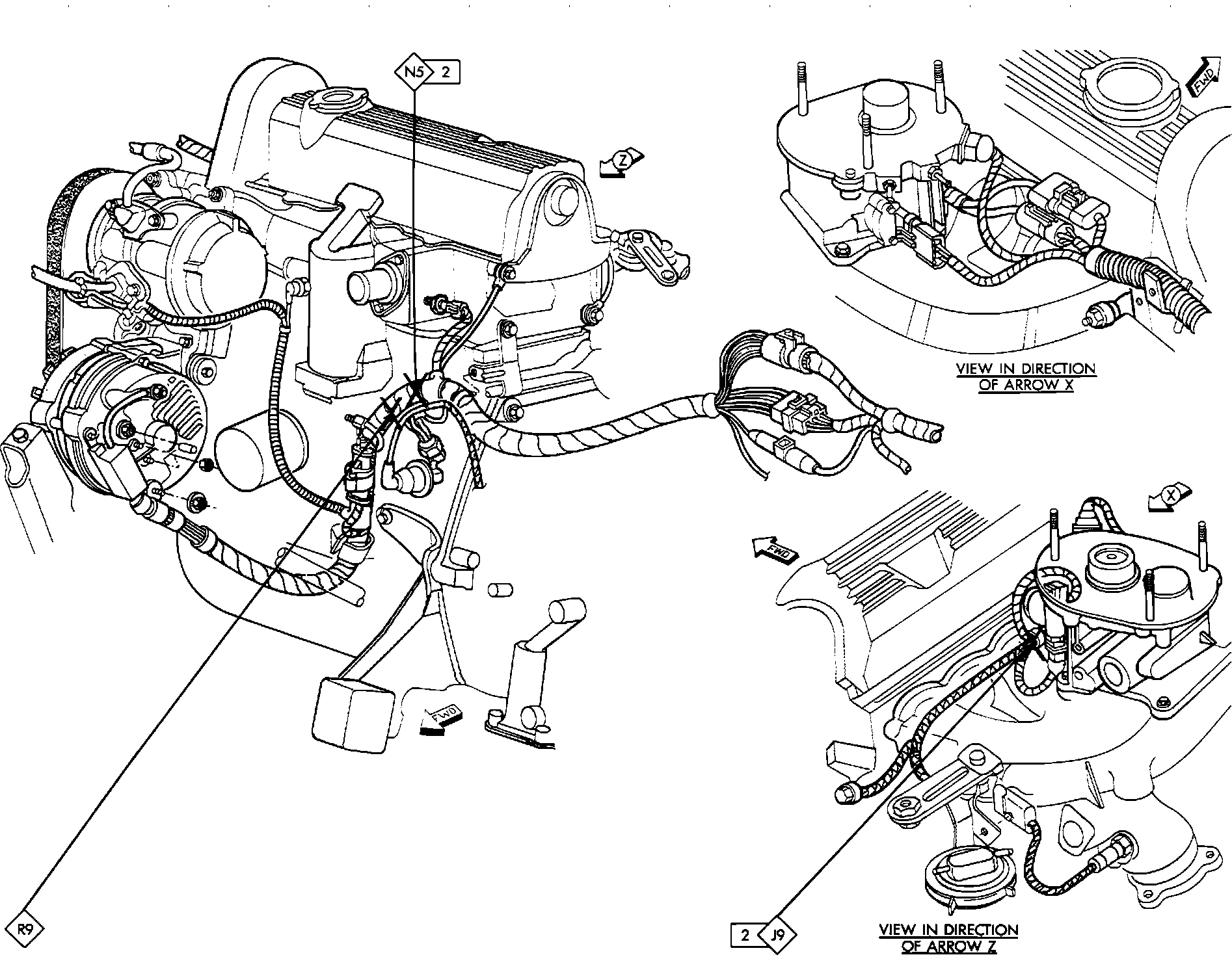

Engine Splice Locations:

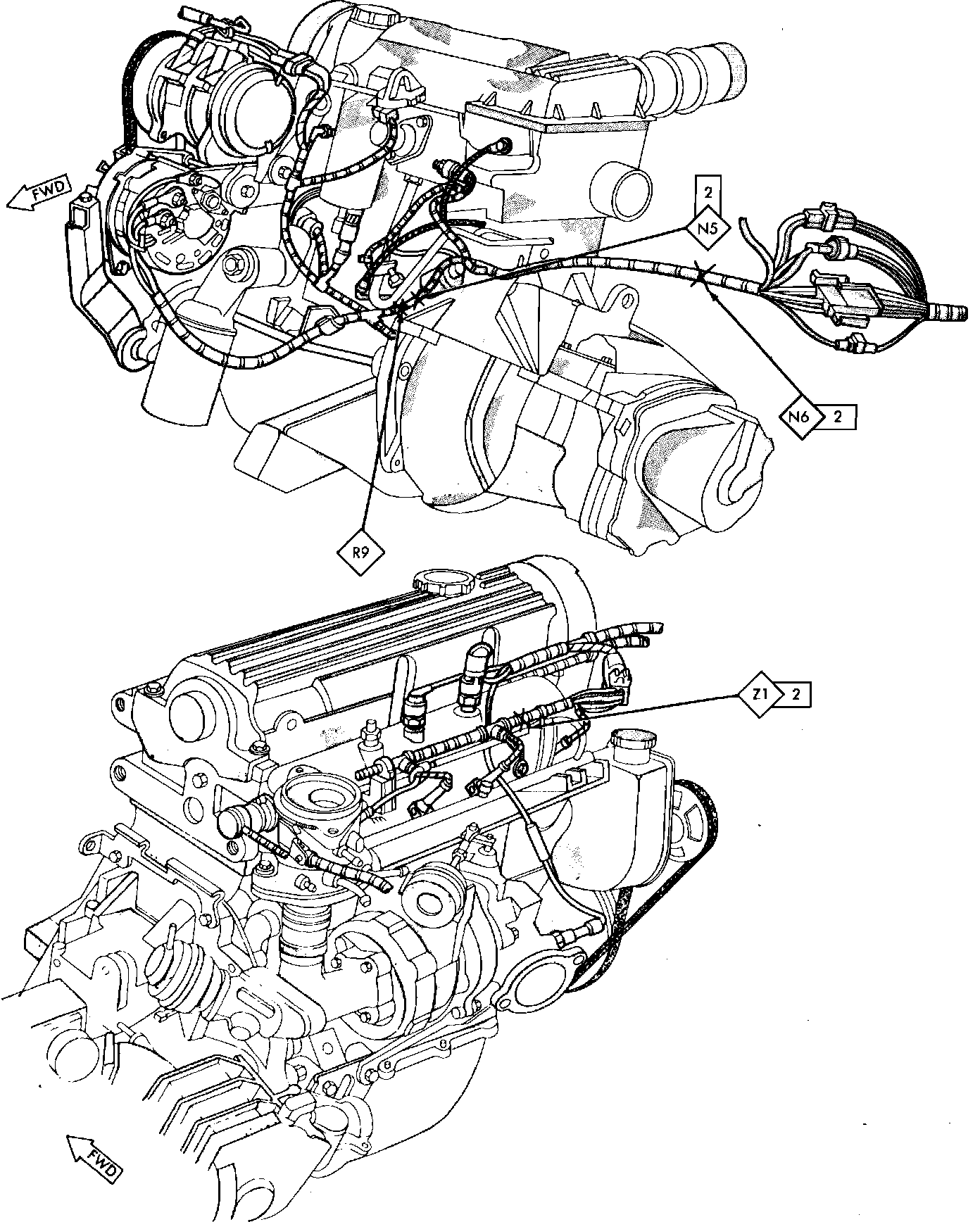

Engine (EFI) Splice Locations:

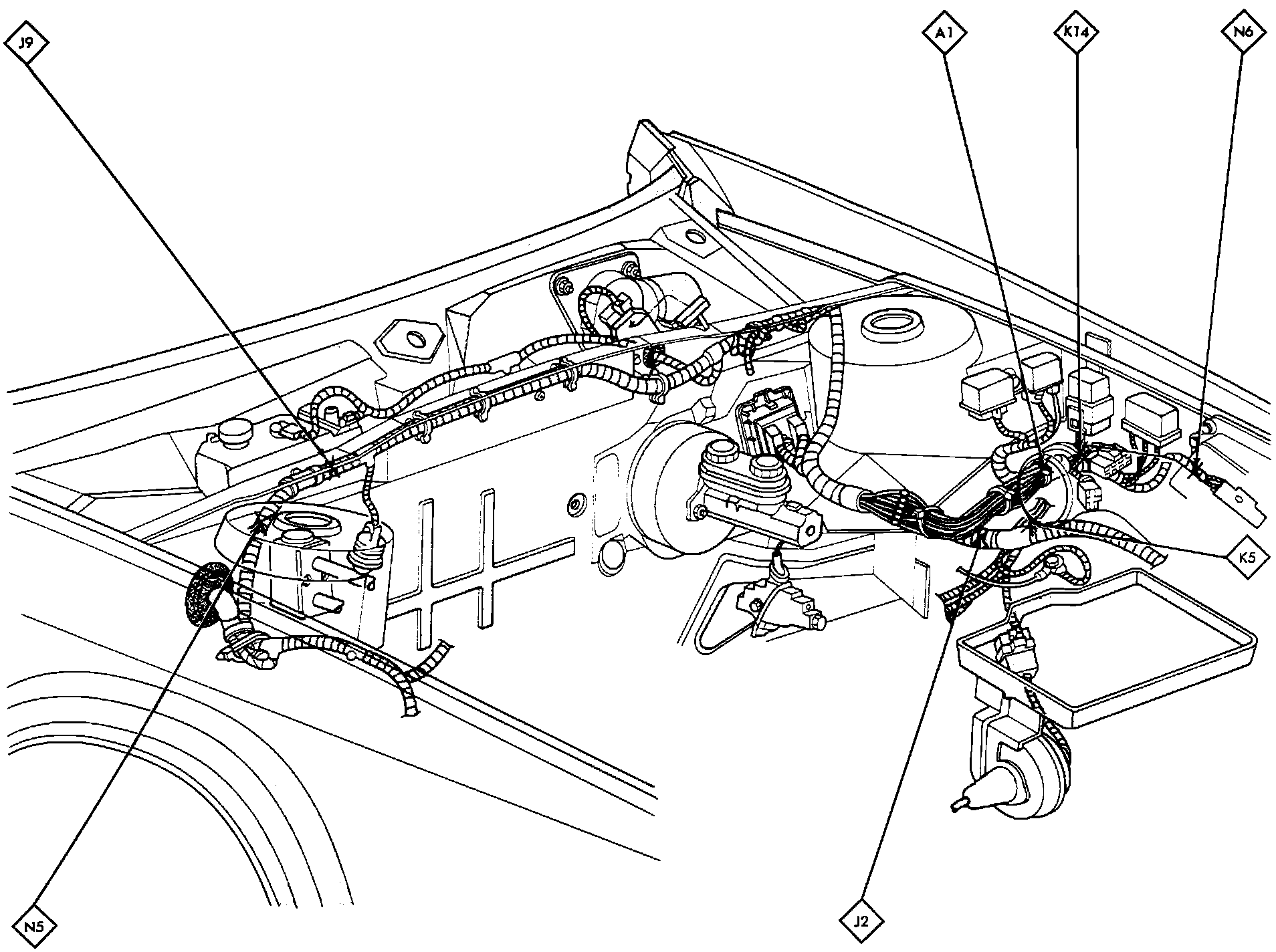

Splice Location. Engine W/Turbo:
