Ignition Switch/System
Ignition Switch/System

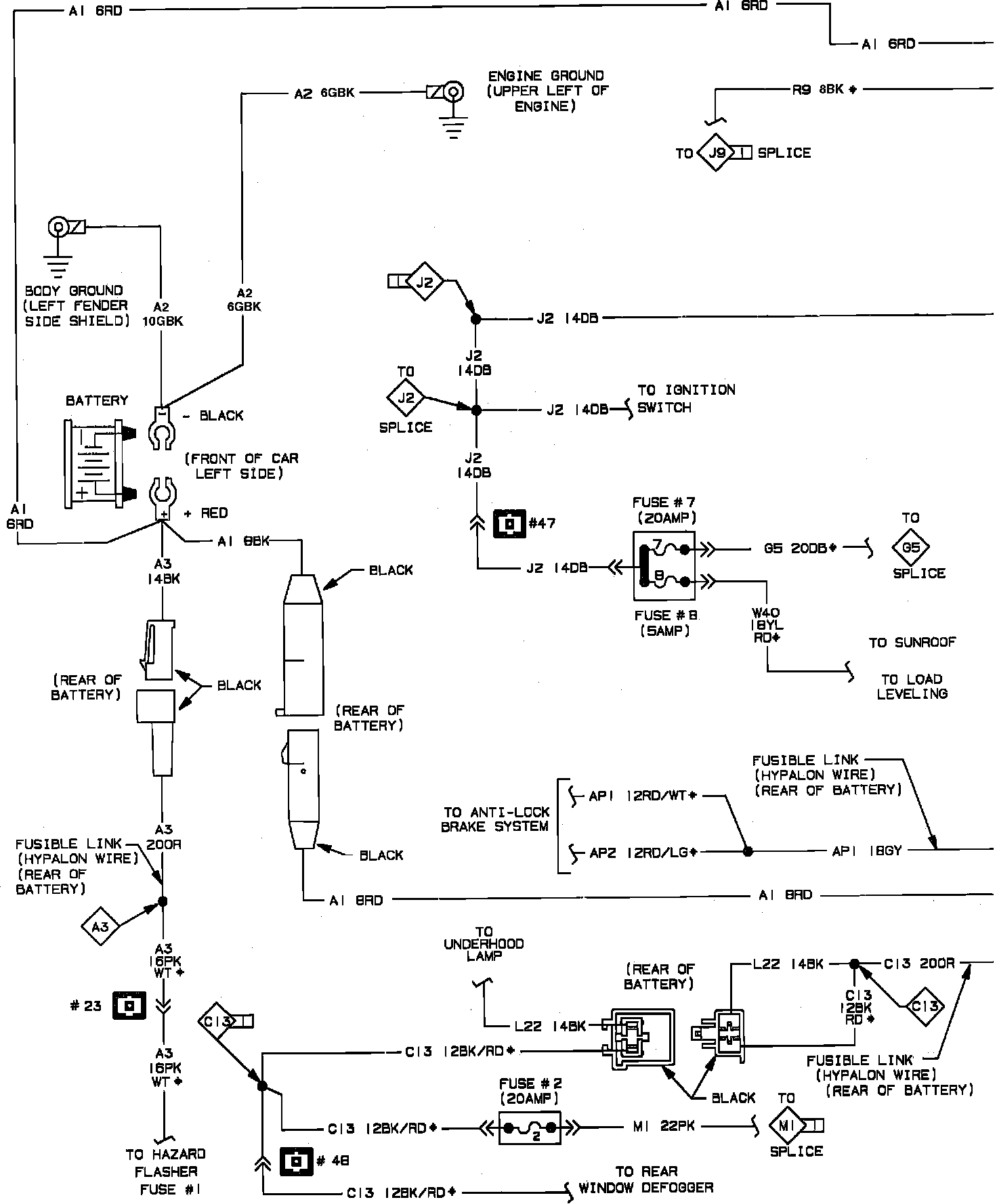

Charging, Ignition & Starting System Wiring Circuit:

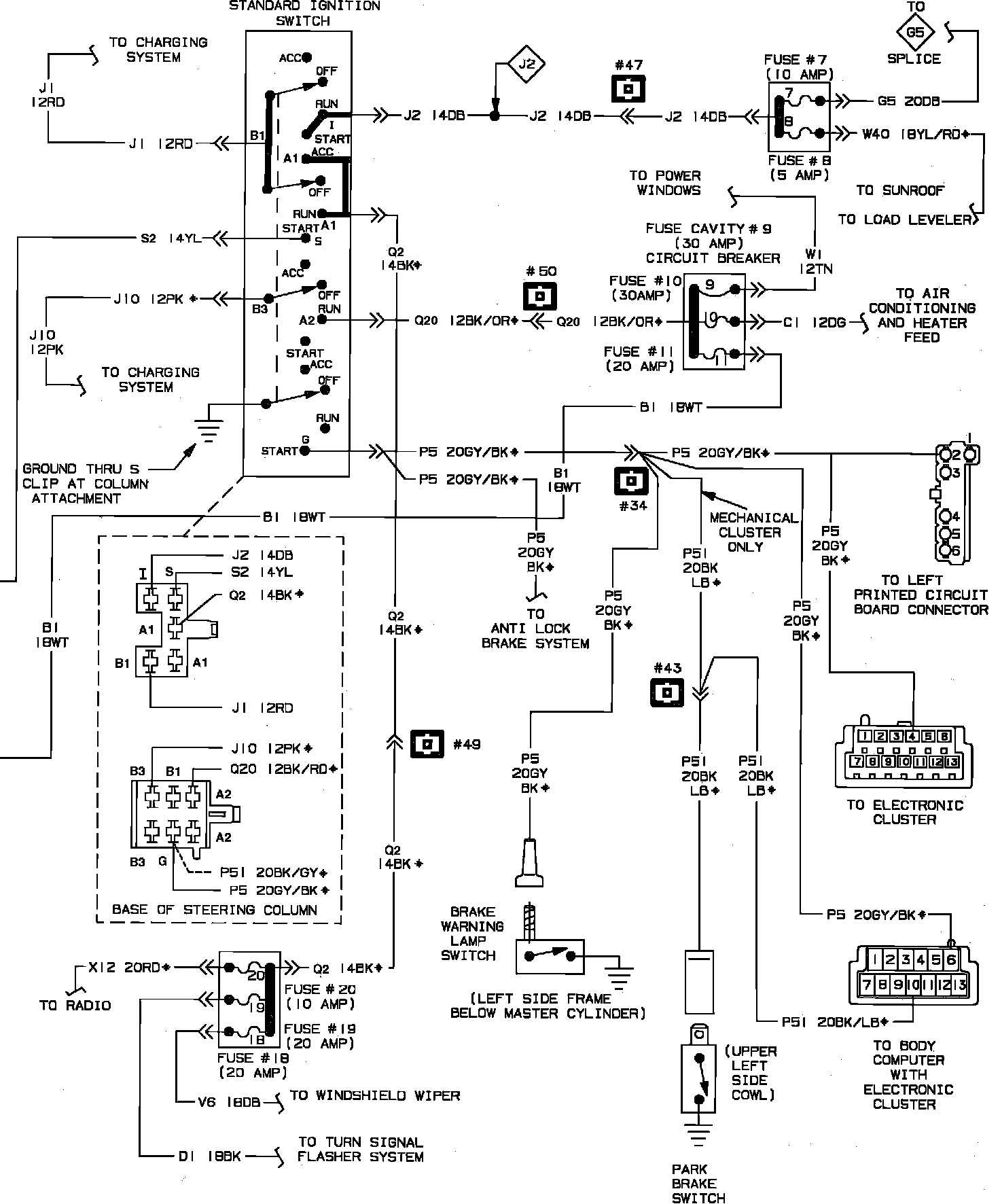

Charging, Ignition & Starting System Wiring Circuit:

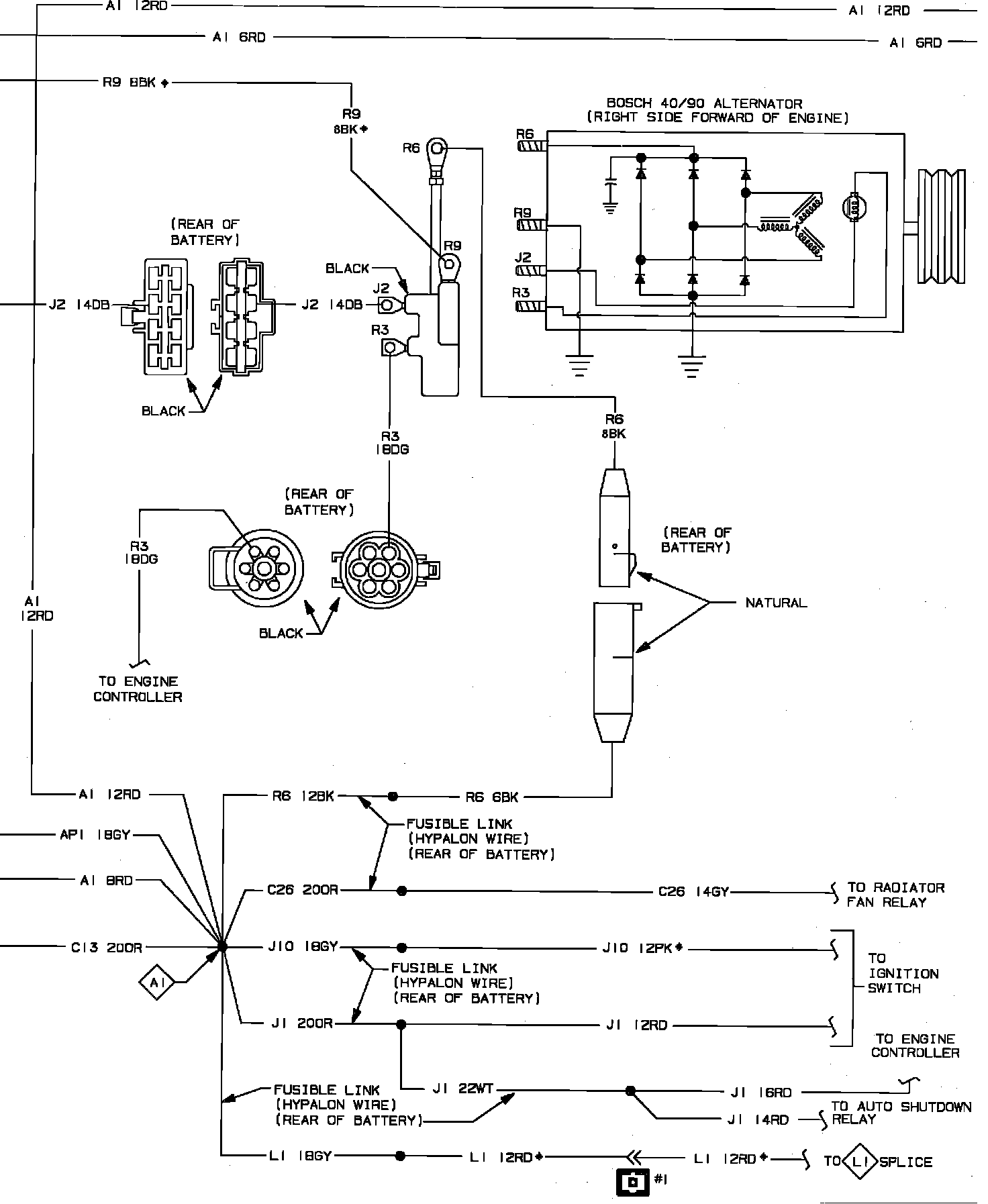

Charging, Ignition & Starting System Wiring Circuit:

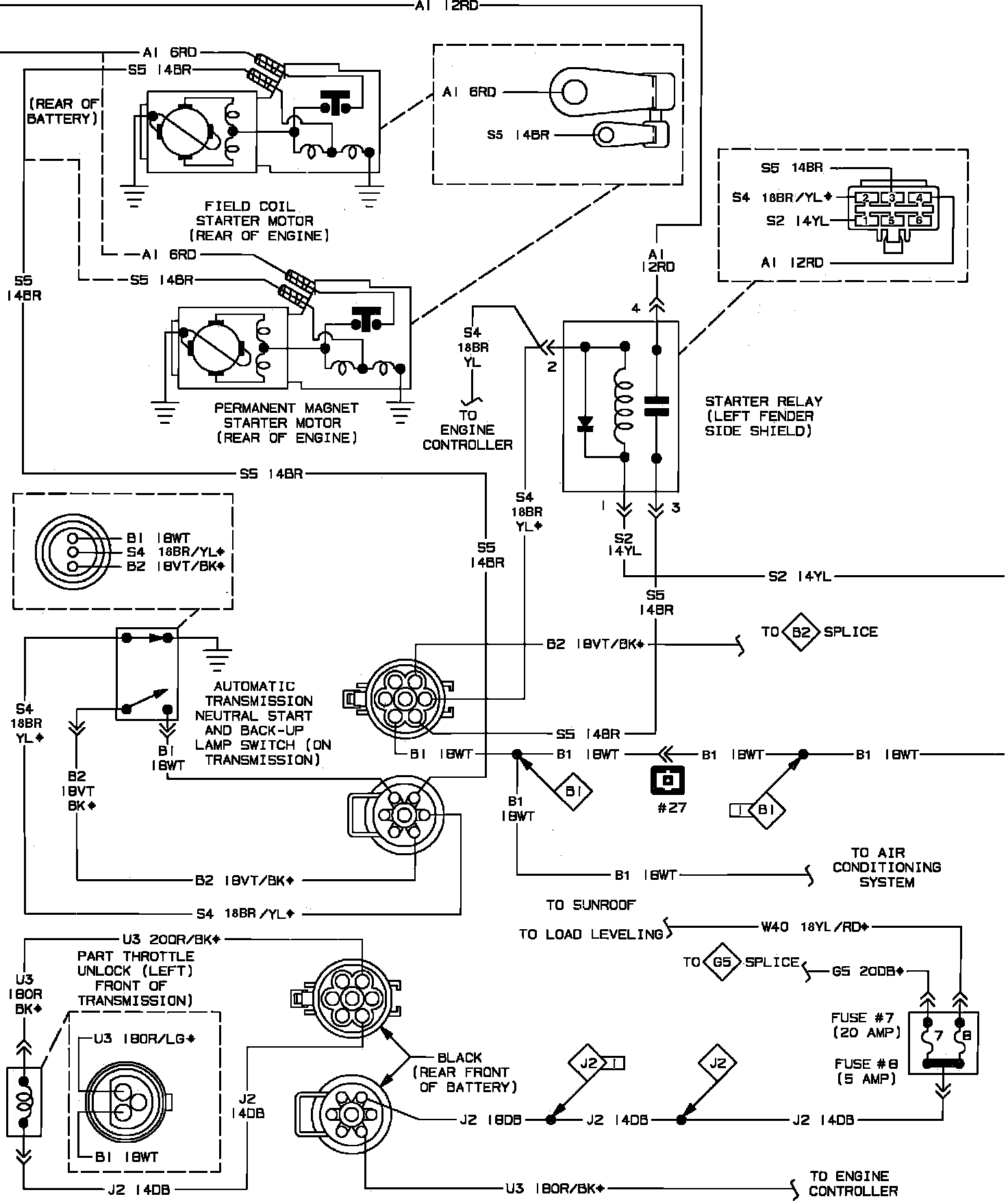

Charging, Ignition & Starting System Wiring Circuit:
