Console

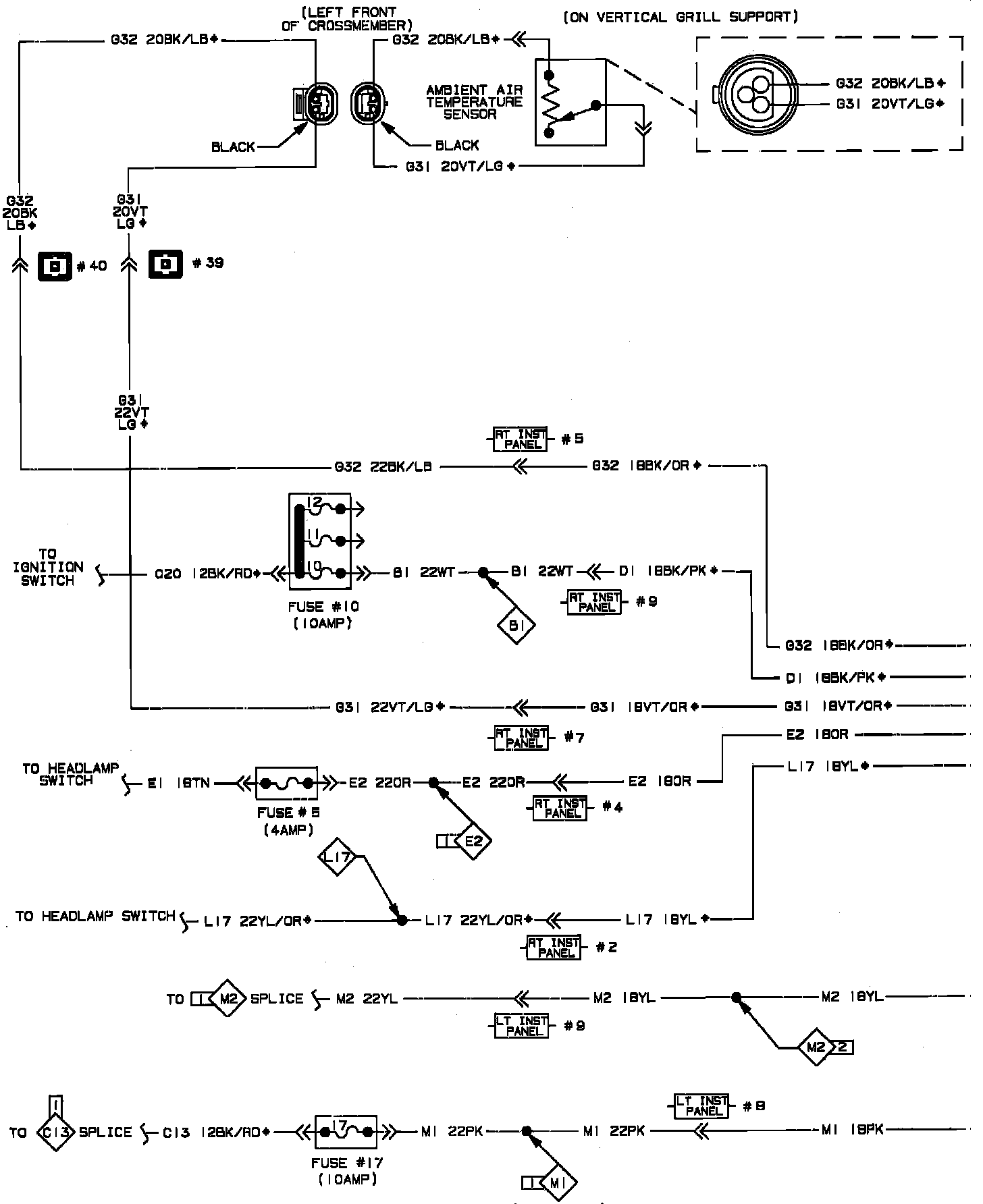

Overhead Console Wiring Circuit (Part 1 of 2):

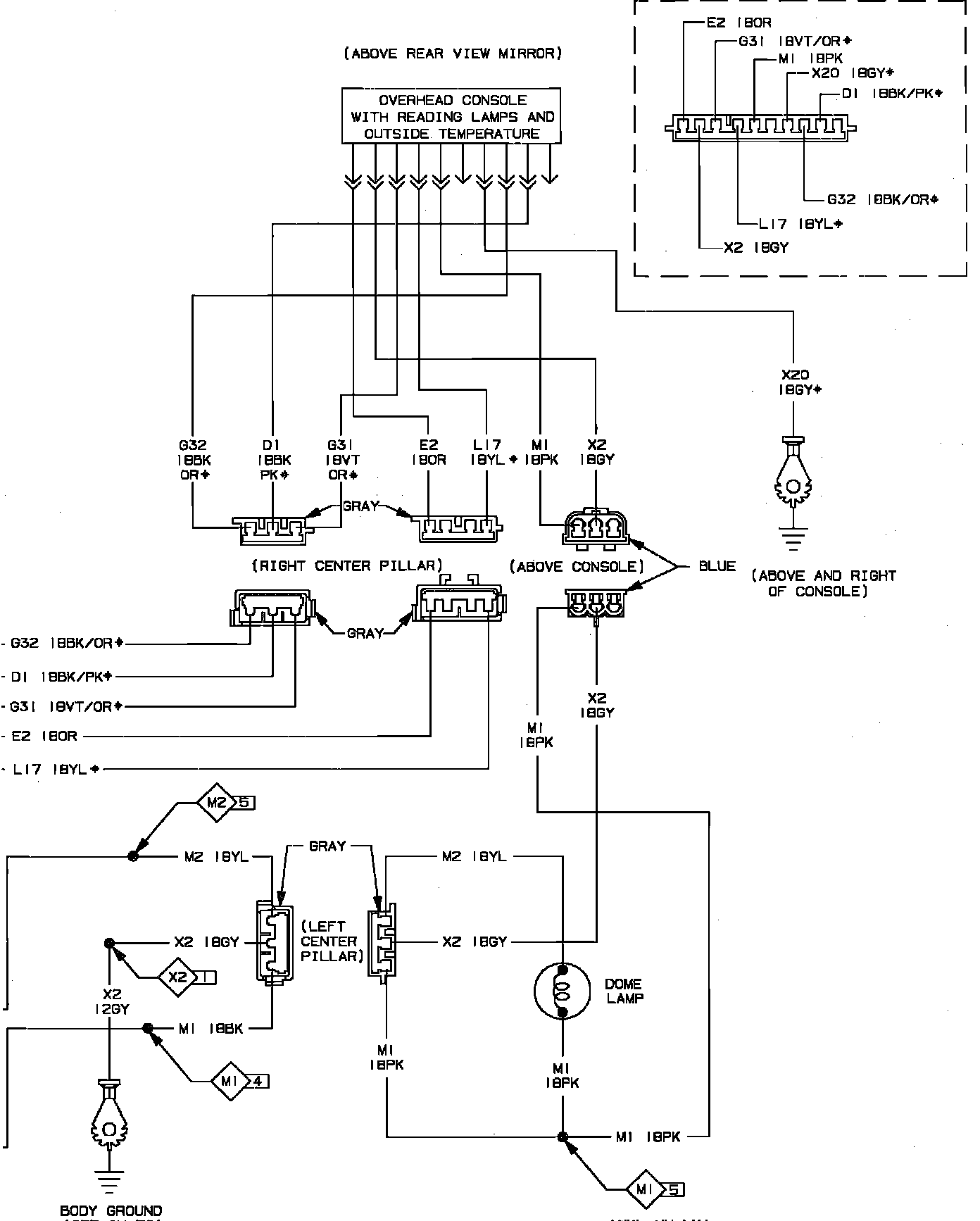

Overhead Console Wiring Circuit (Part 2 of 2):
