Import Service Manual Revision - Vehicle Identification

89chrysler12

Models

1989 B2 Body


Subject

Import Service Manual Revision - Vehicle Identification


Index

MISCELLANEOUS


Date August 21, 1989


No.

26-15-89

(C26-18-9)

P-3087
BODY CODE LEGEND

B2 - COLT 3-DOOR


SERVICE MANUAL REVISION


This Technical Service Bulletin is issued to revise the 1989 Colt Import Service Manual, Publication No. 81-270- 9011. New pages 6, 8 and 9 have been provided.


Please affix the enclosed pages in your Import Service Manual.


POLICY: For information only.
INTRODUCTION AND MASTER TROUBLESHOOTING - Vehicle Identification



VEHICLE IDENTIFICATION

VEHICLE IDENTIFICATION NUMBER LOCATION

The vehicle identification number (V.I.N.) is located on a plate attached to the left top side of the instrument panel.

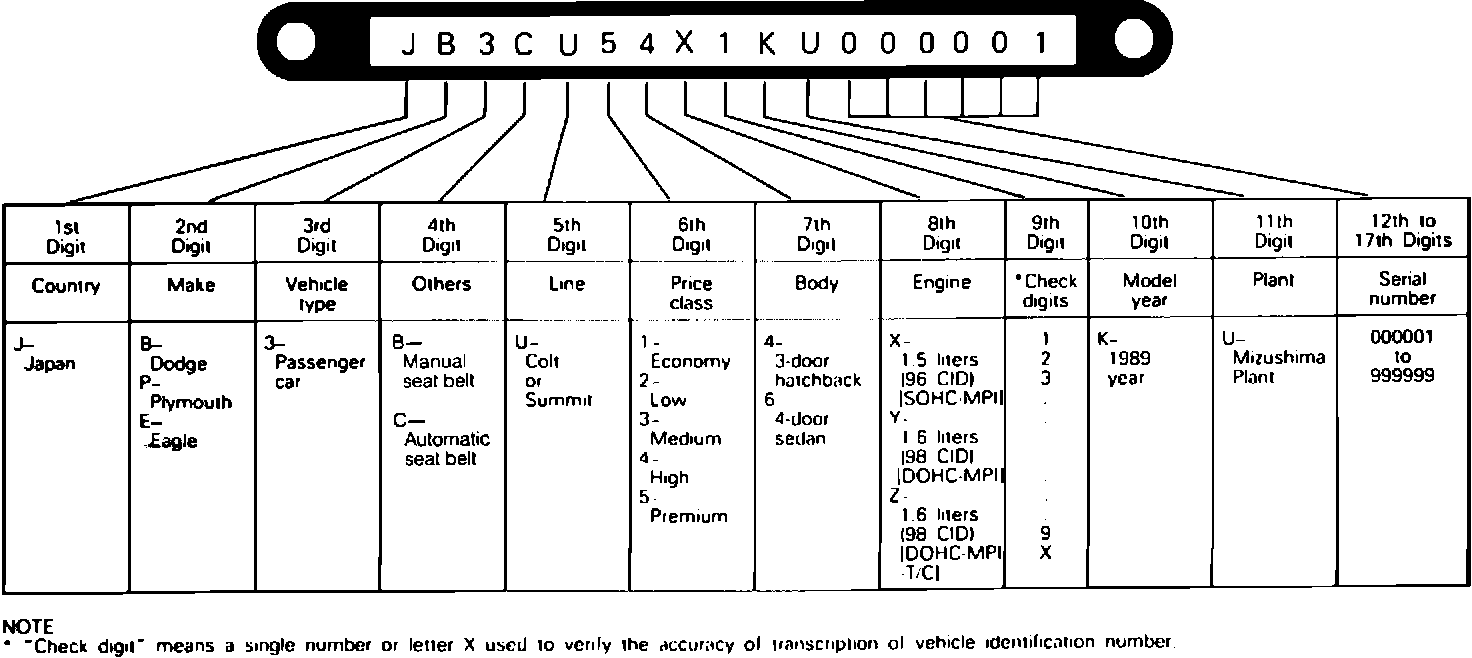

VEHICLE IDENTIFICATION CODE CHART PLATE

All vehicle identification numbers contain 17 digits. The vehicle number is a code which tells country, make, vehicle type, etc.



INTRODUCTION AND MASTER TROUBLESHOOTING - Vehicle Identification

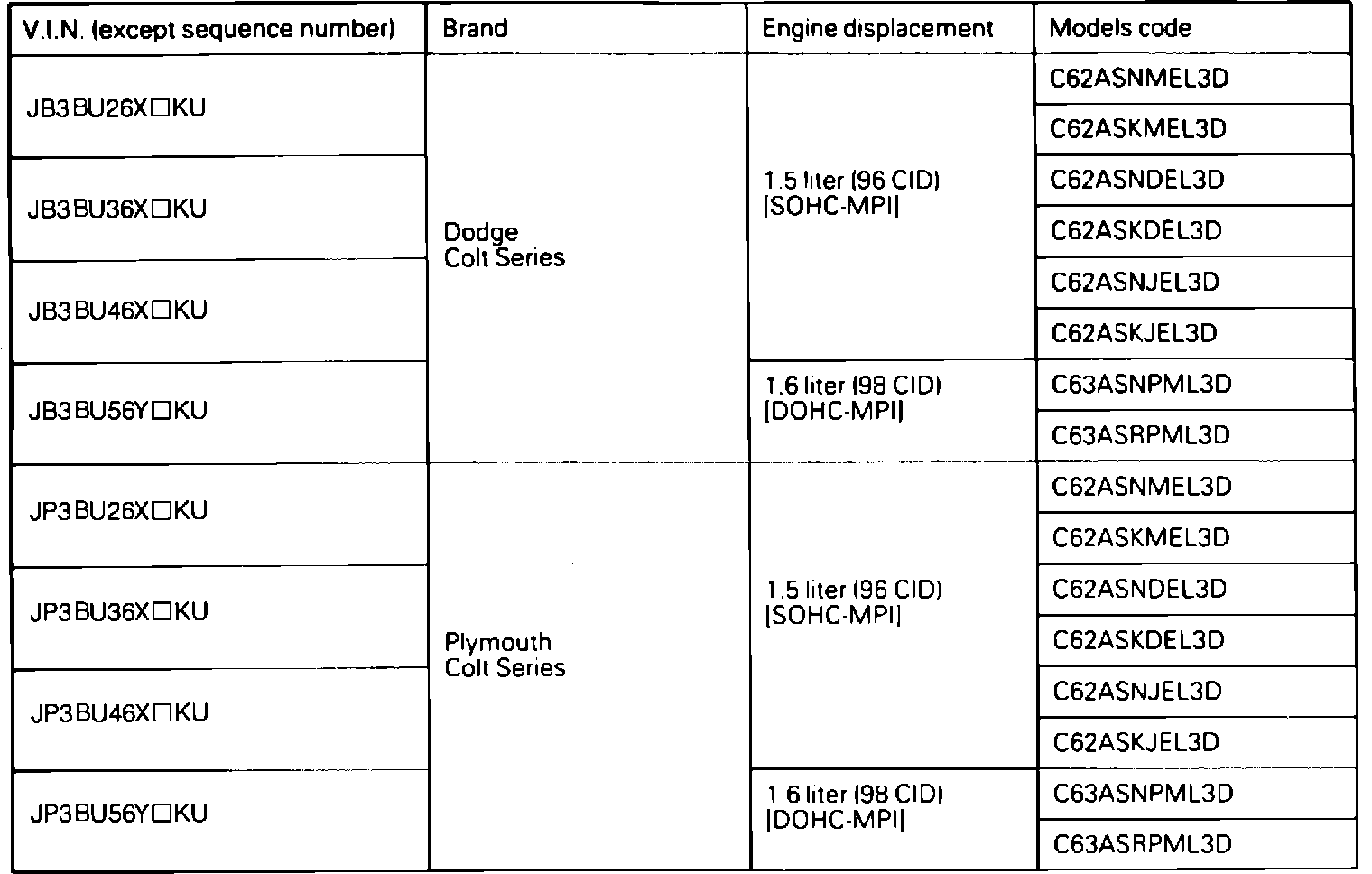

HATCHBACK FOR CANADA



INTRODUCTION AND MASTER TROUBLESHOOTING - Vehicle Identification

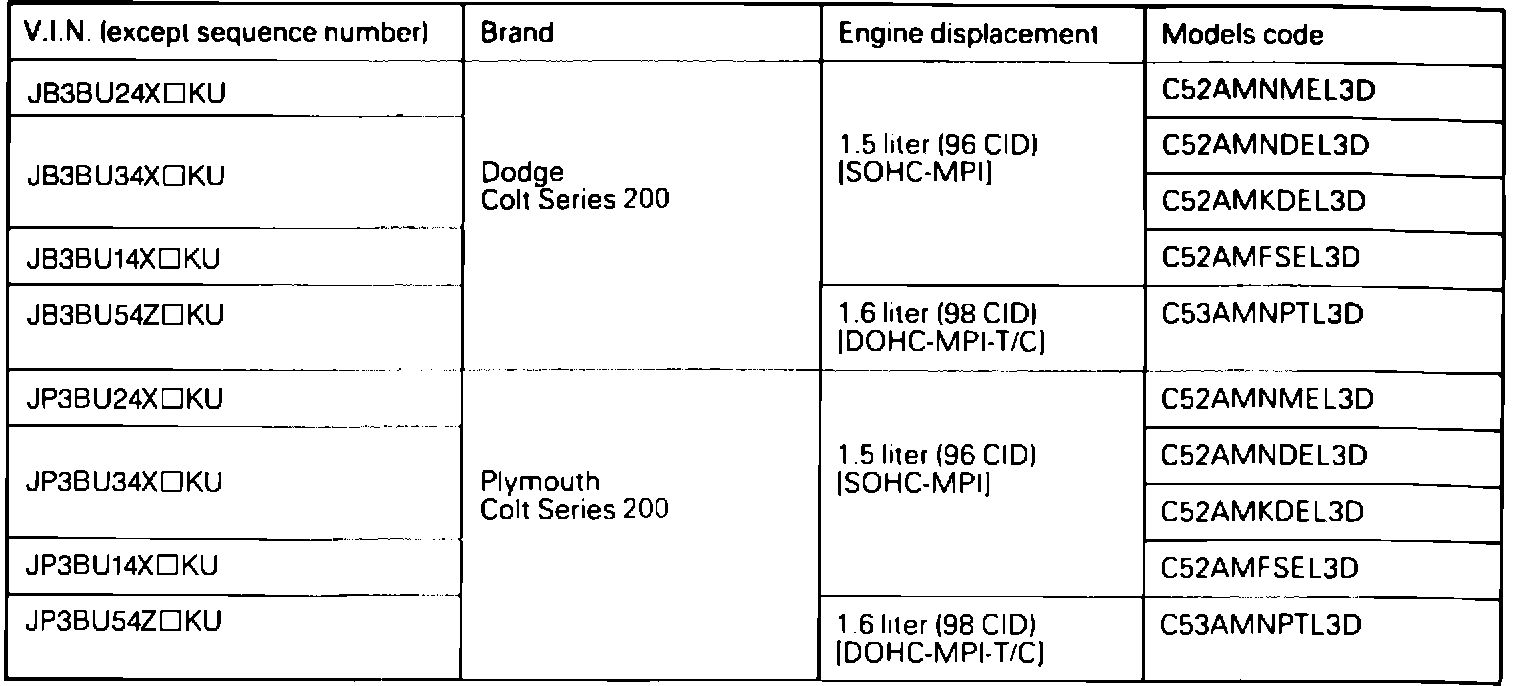

SEDAN FOR CANADA
