Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1989
>>
Daytona L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Bulkhead Connector
Bulkhead Connector

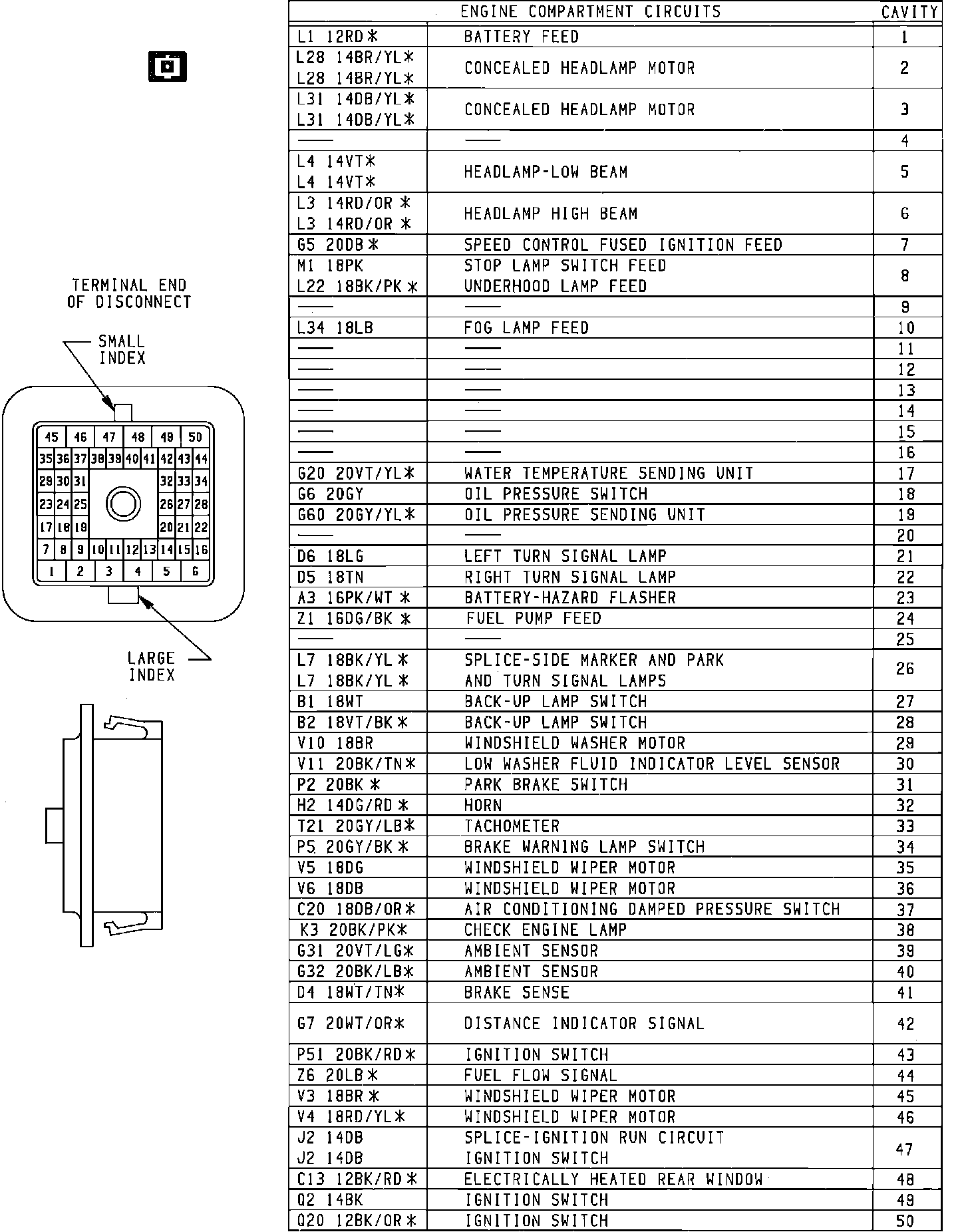

Bulkhead Connector:

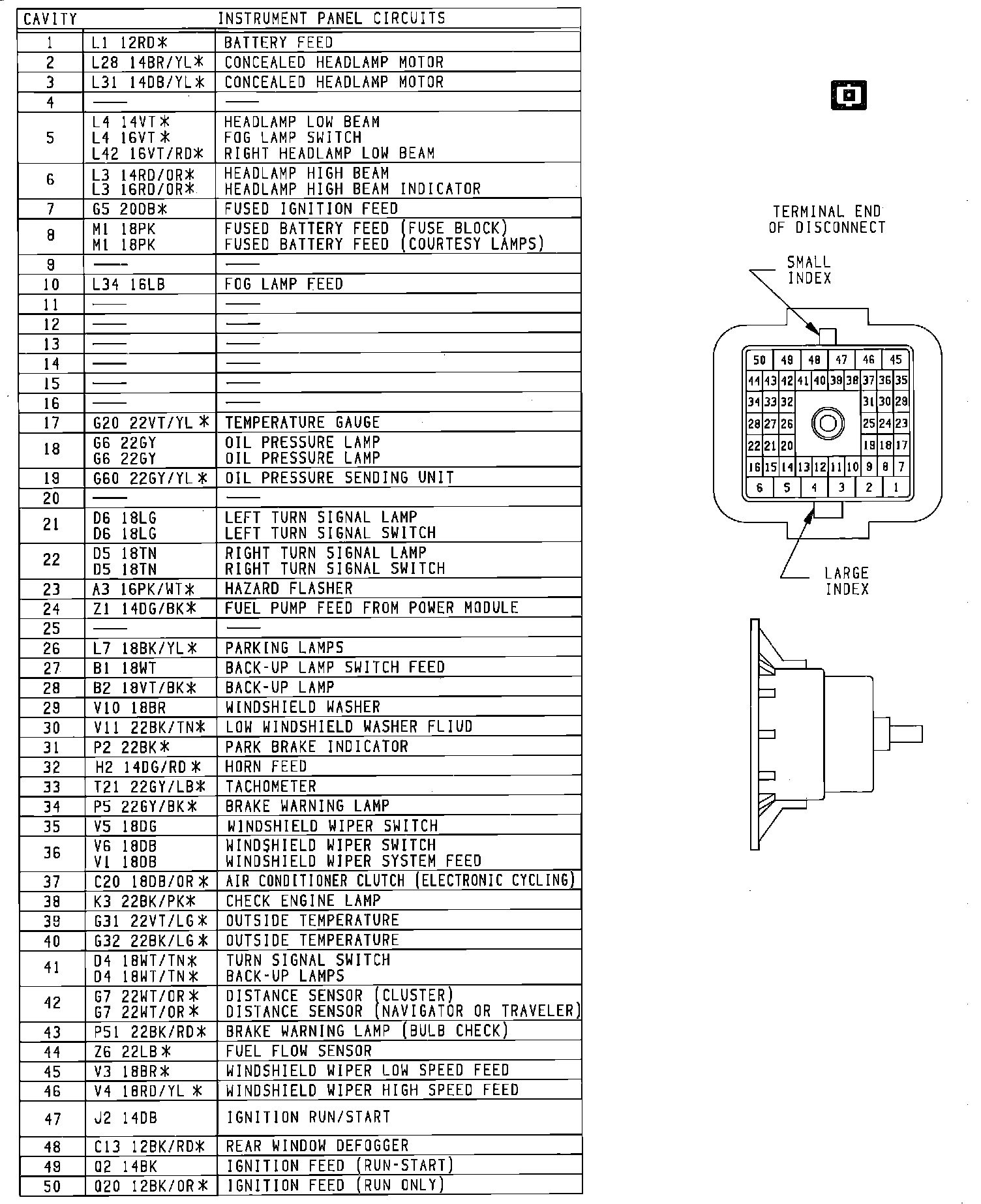

Bulkhead Connector:
