Steering

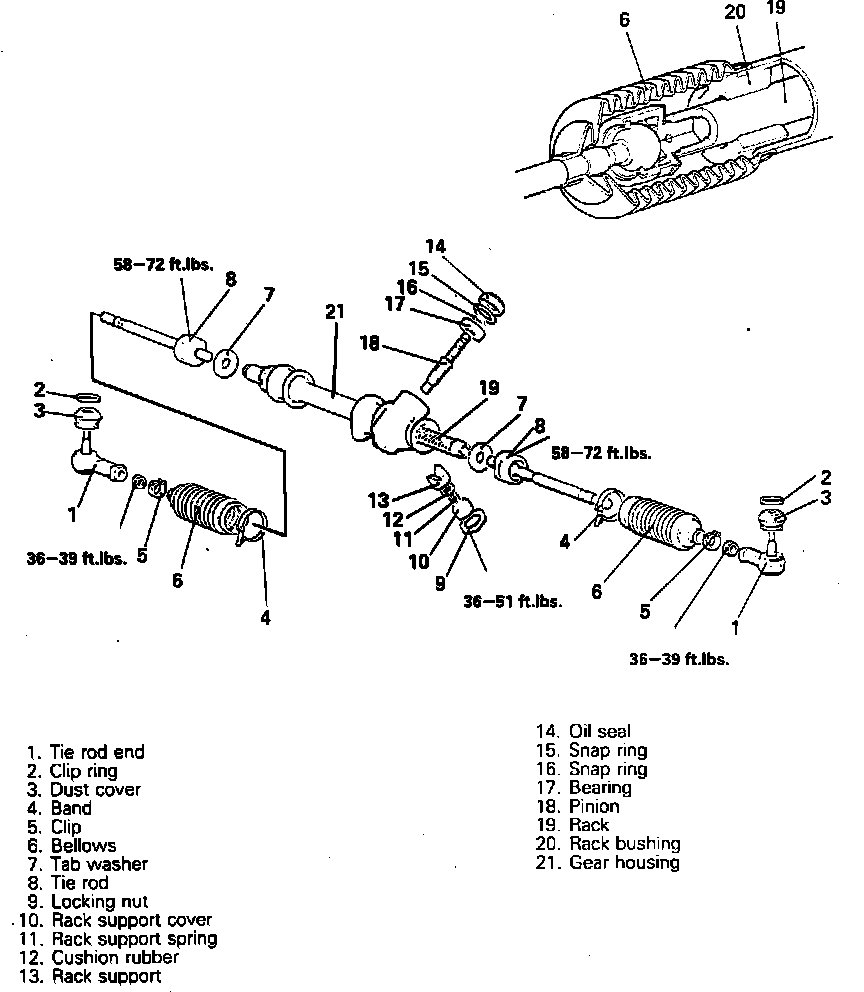

Fig. 1 Manual Rack & Pinion Steering Gear. FWD:

Fig. 2 Manual Rack & Pinion Steering Assembly:
