Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge
>>
1989
>>
Dynasty L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
Seats

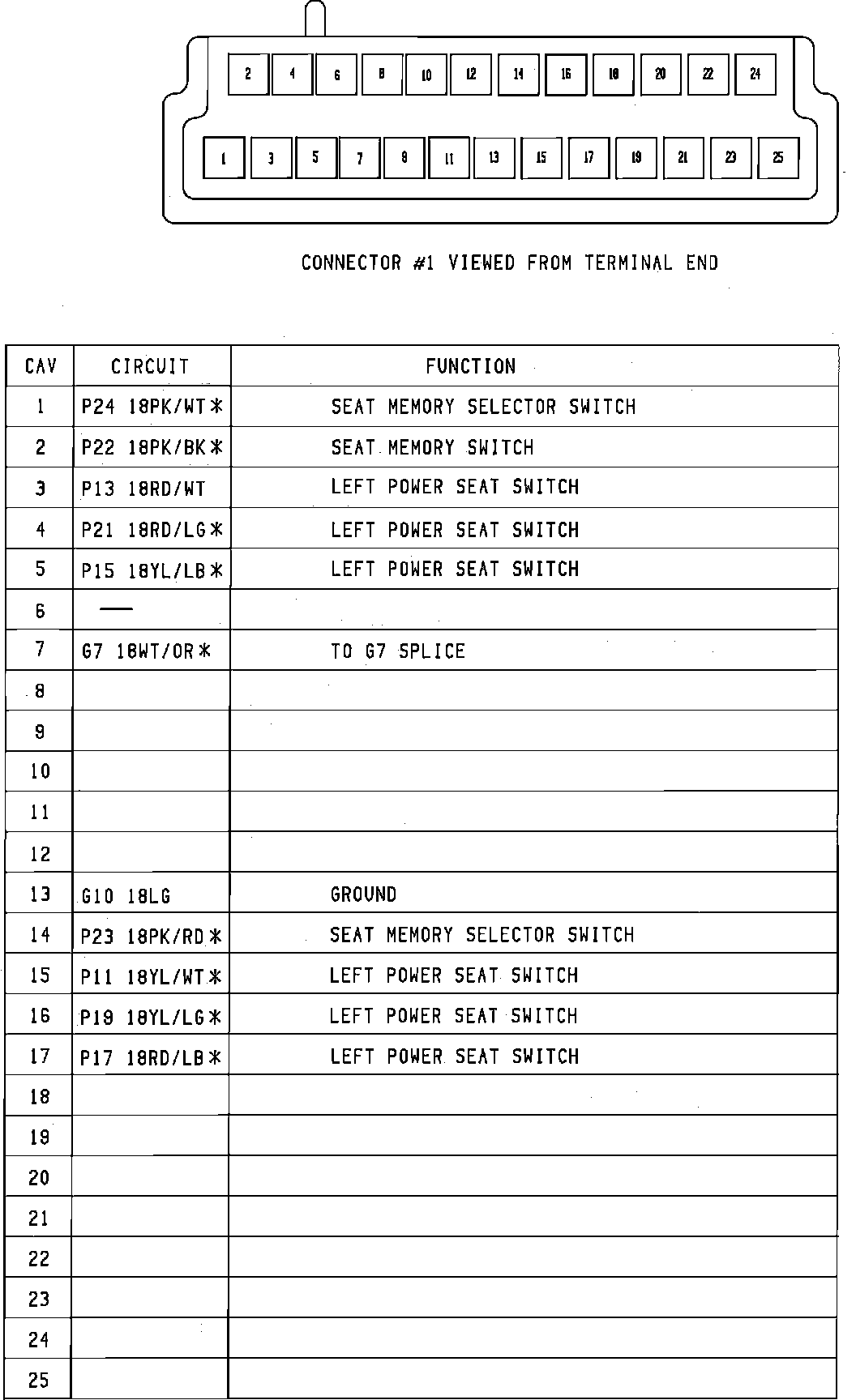

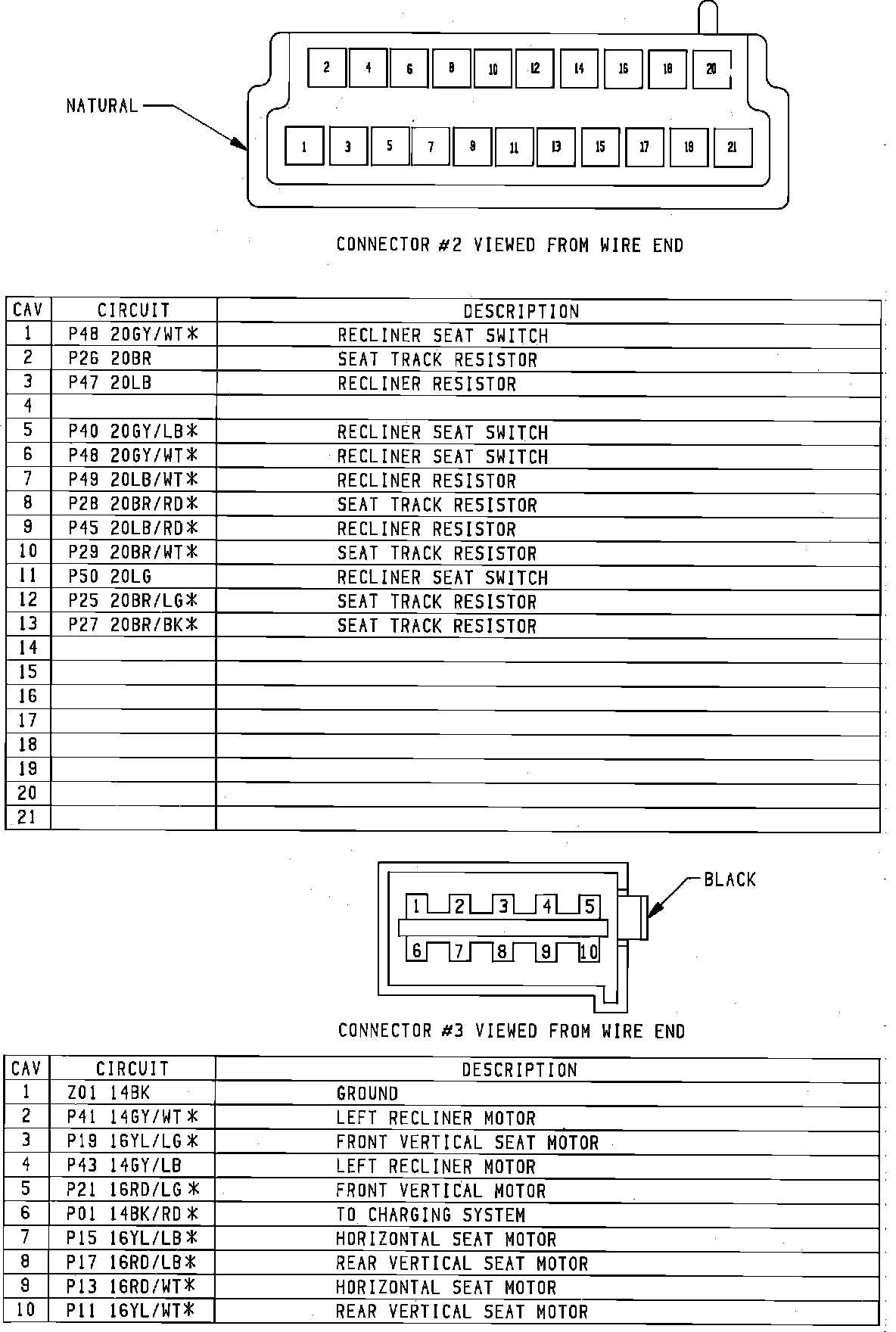

Memory Power Seat Connectors:
Memory Power Seat Connectors:
