Bulkhead Connector
Bulkhead Connector

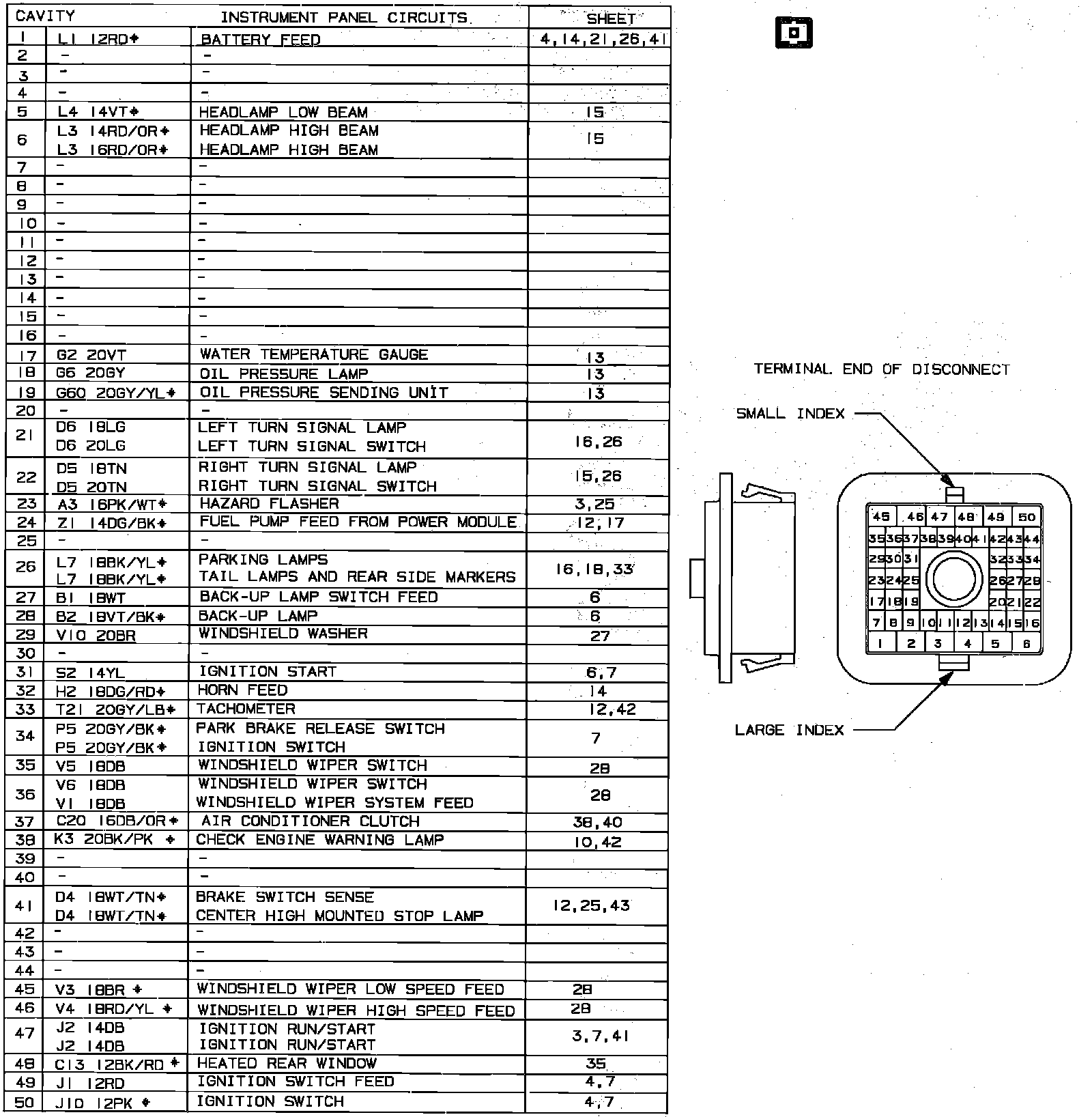

Bulkhead Connector. Cowl Side:

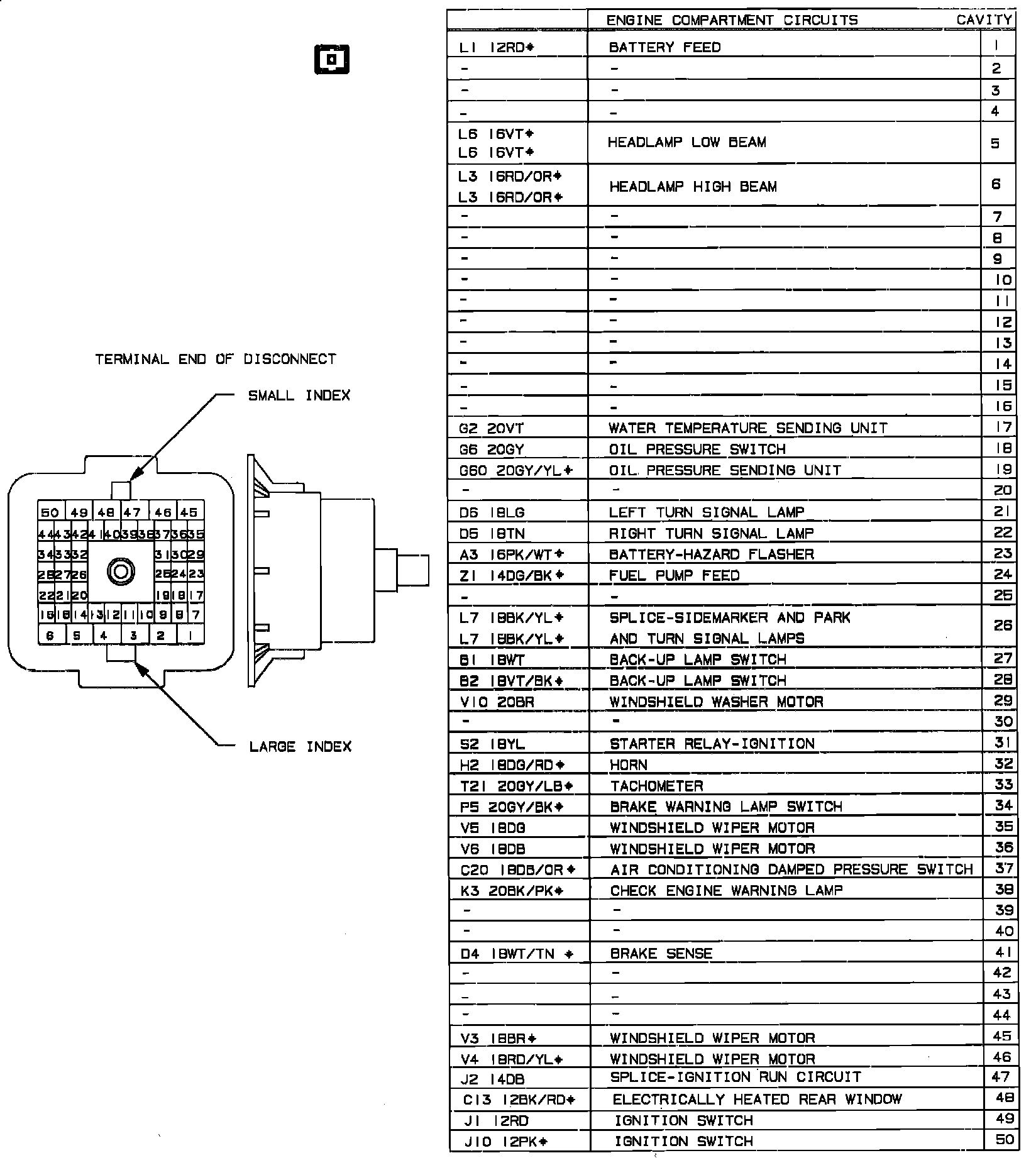

Bulkhead Connector. Engine Side:
