Wiper Switch: Testing and Inspection

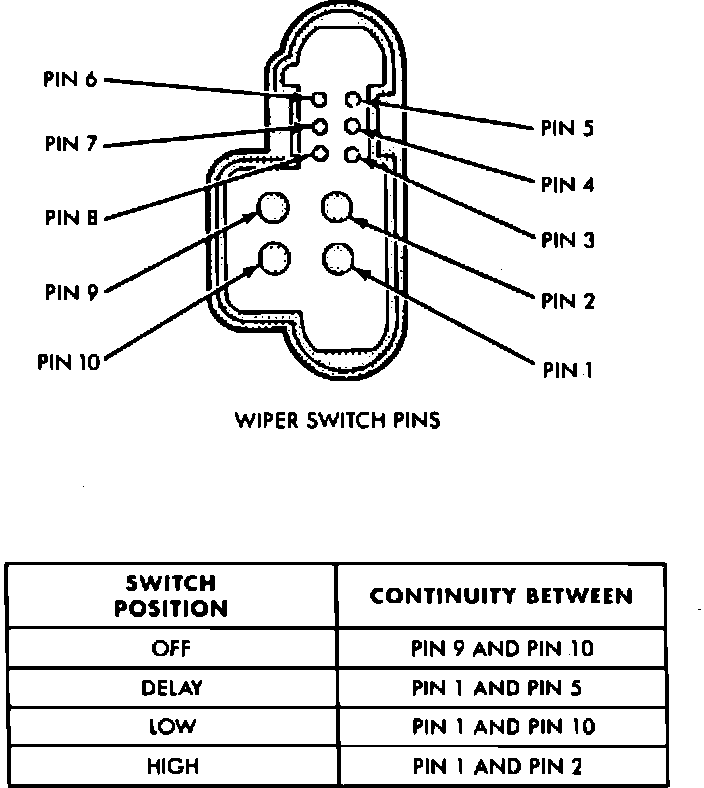

Fig. 11 Front Wiper Continuity Chart:

Remove switch pod from instrument panel, then using a suitable ohmmeter, test for continuity between terminals as indicated.
