Home >> Dodge >> 1993 >> Viper V10-488 8.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fog/Driving Lamp

Fog/Driving Lamp

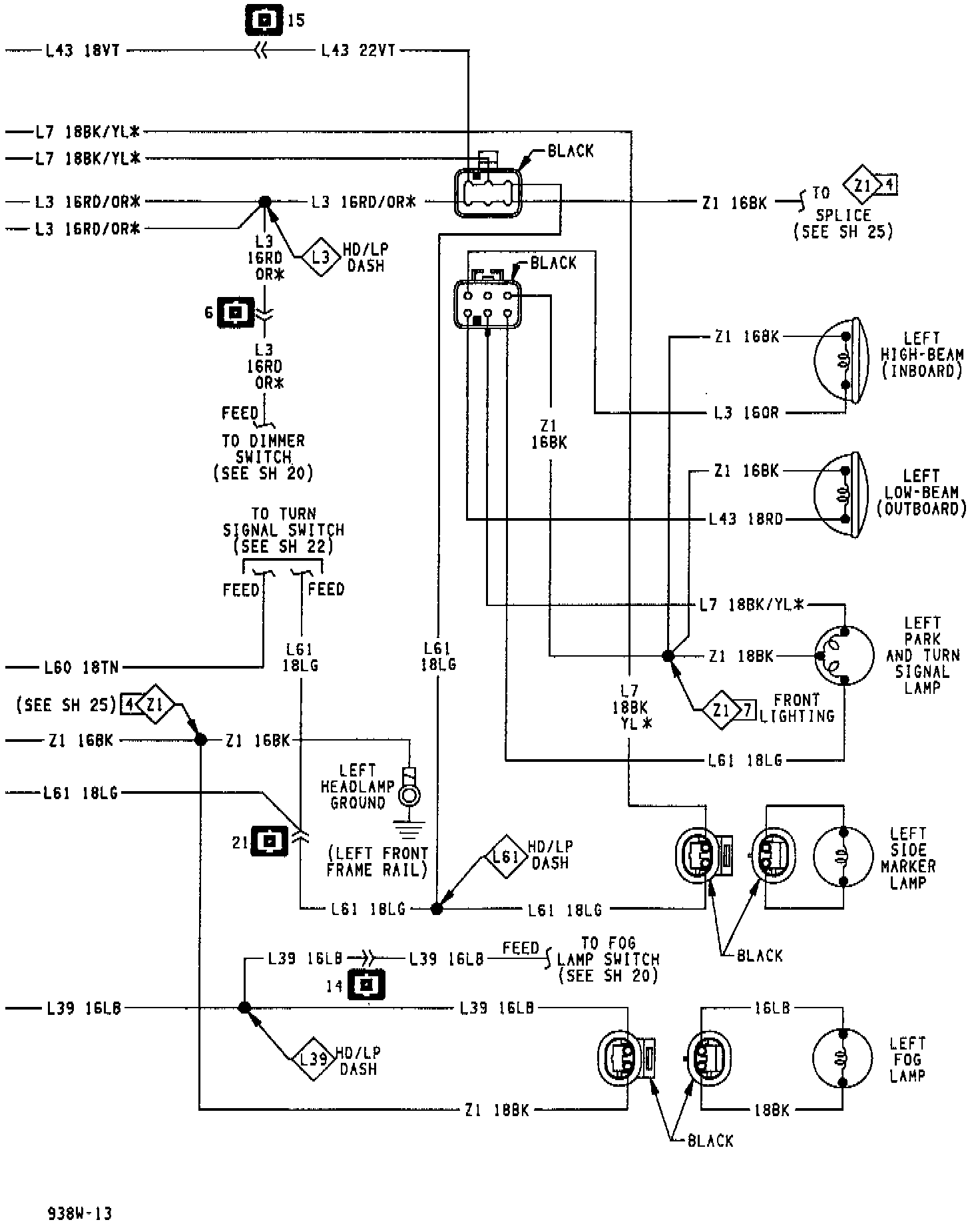

Front End Lighting With Daytime Running Lamps:

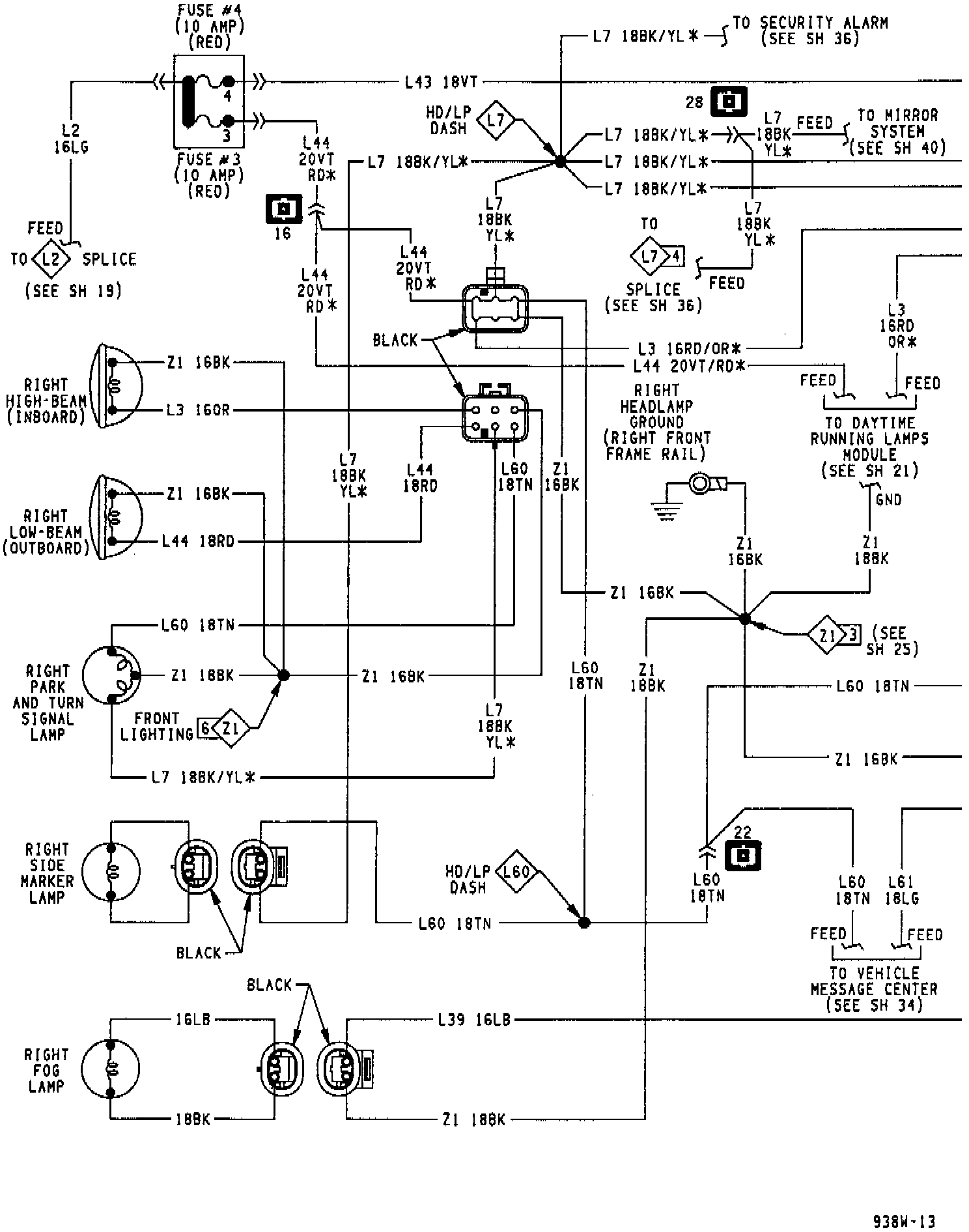

Front End Lighting With Daytime Running Lamps:
