Home
>>
Dodge
>>
1993
>>
Viper V10-488 8.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

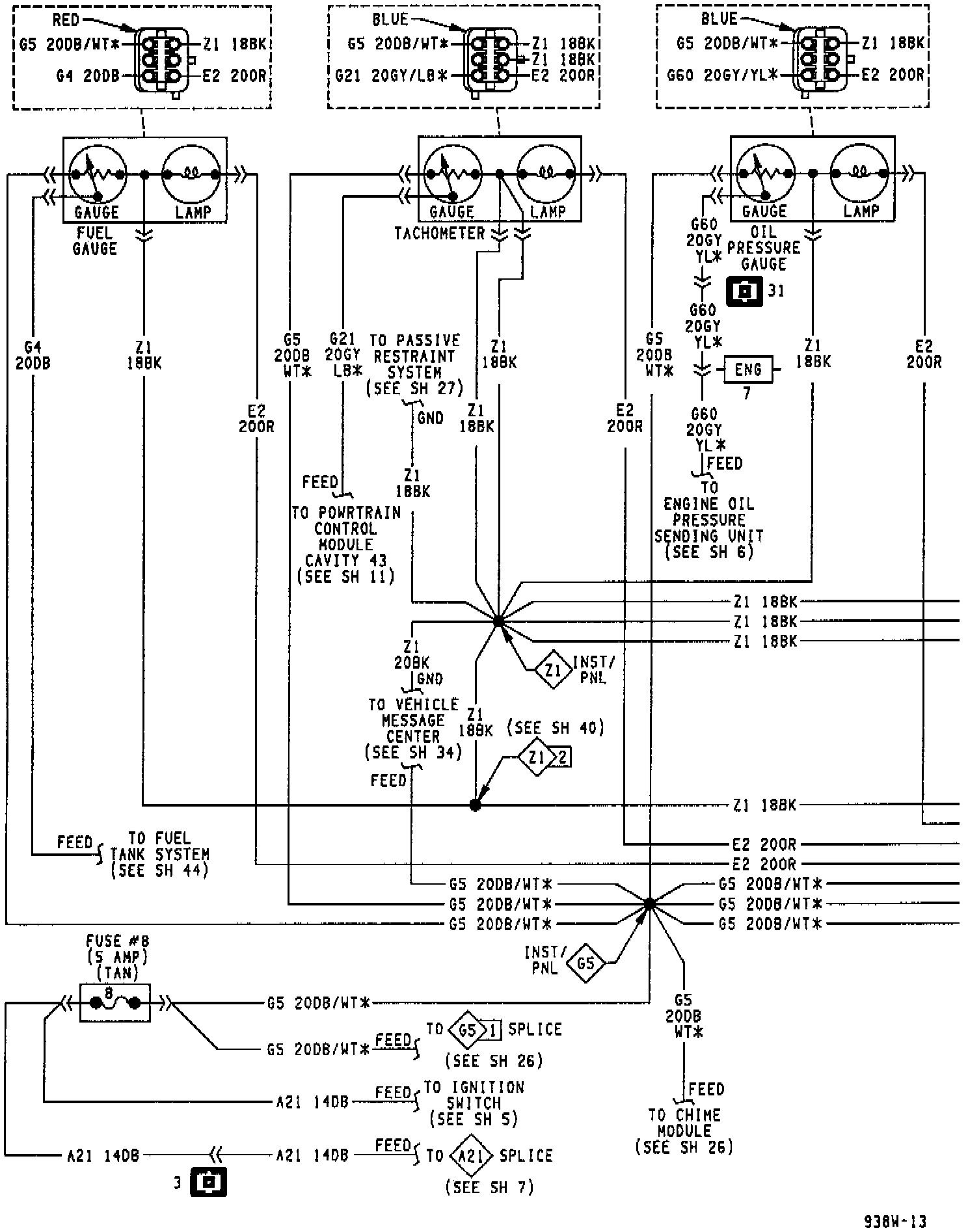

Tachometer
Tachometer

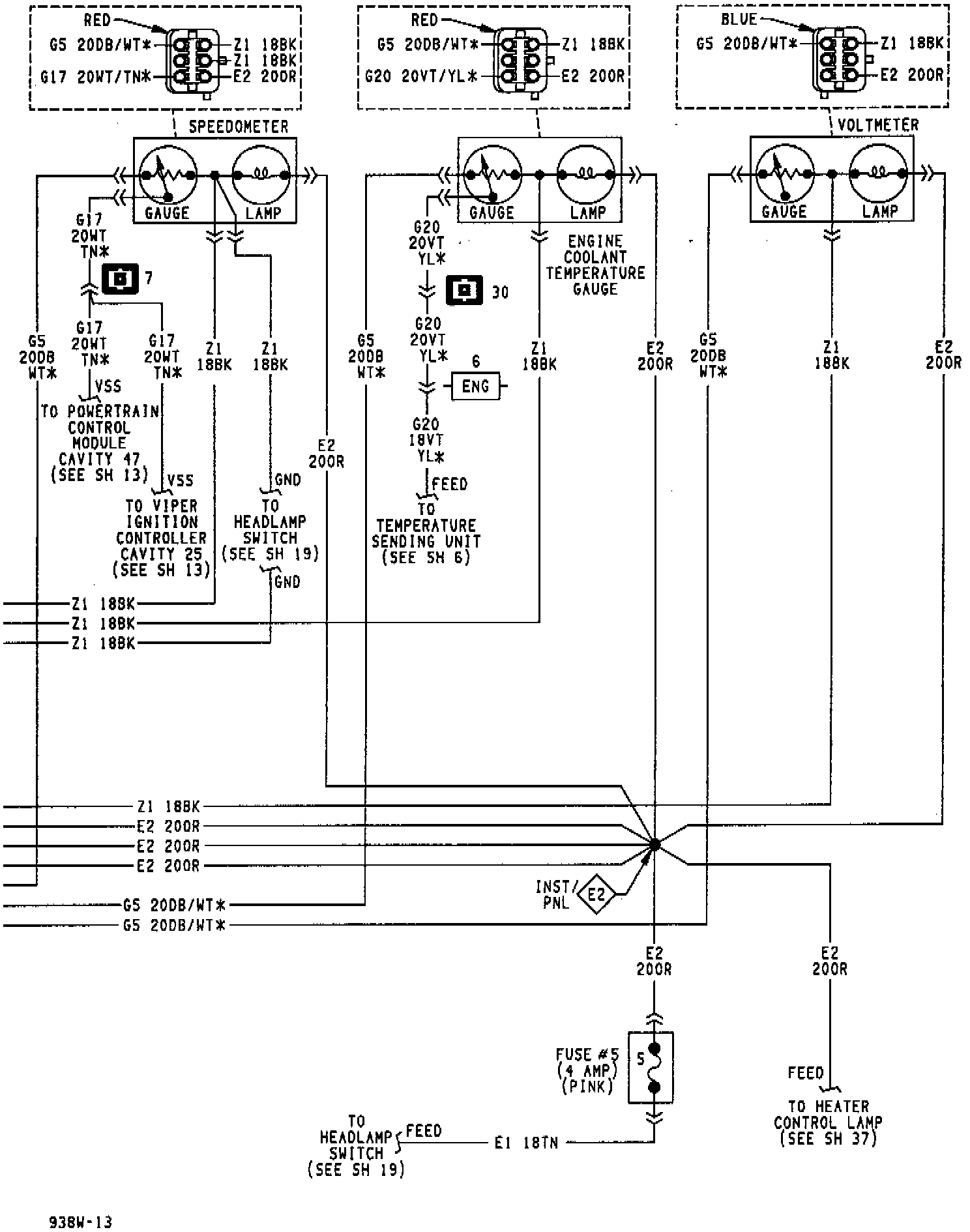

Gauges System:
Gauges System:
