Home >> Dodge >> 1993 >> Viper V10-488 8.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Part 7

Part 7

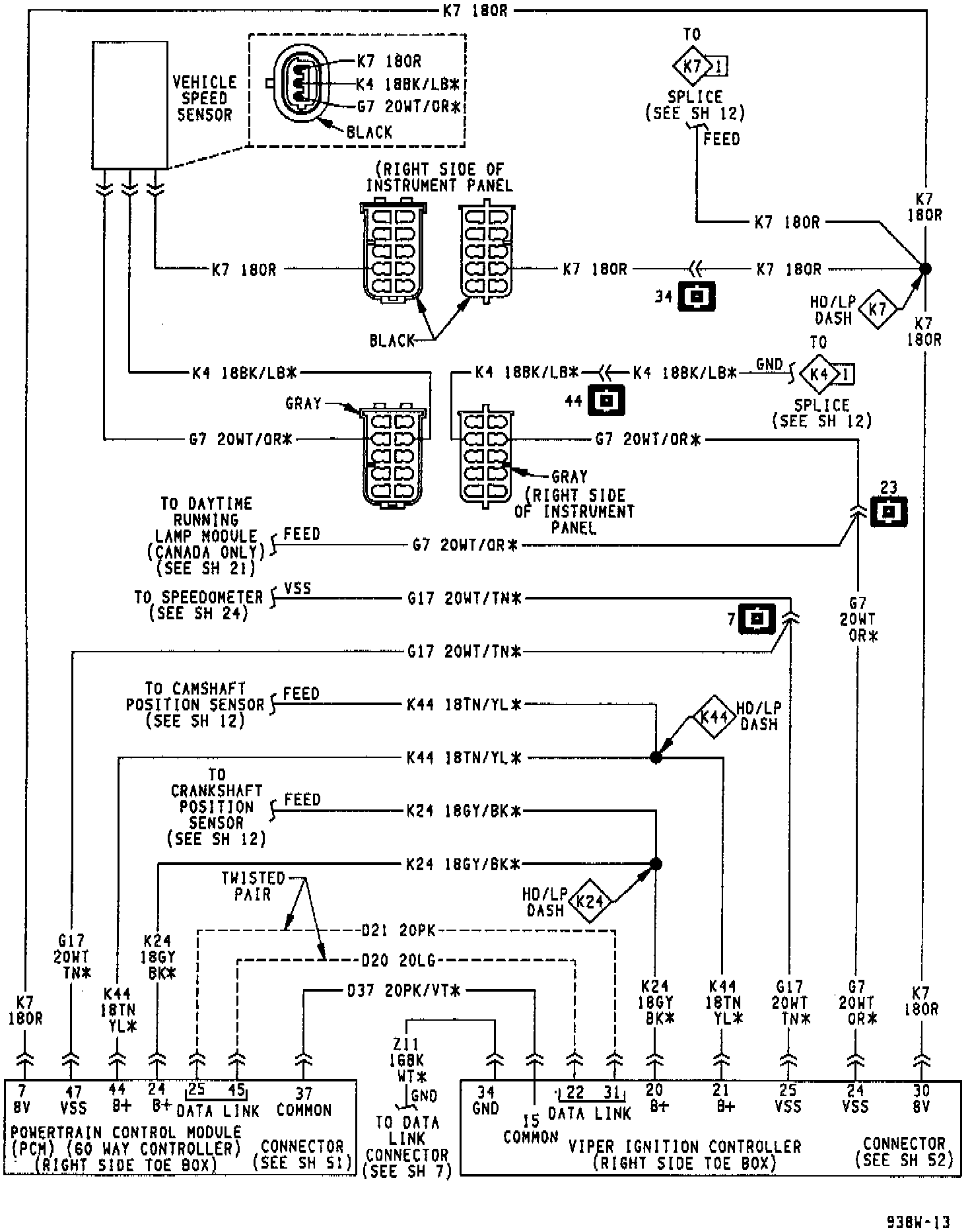

Ignition System:
