Transmission Speed Sensor: Testing and Inspection

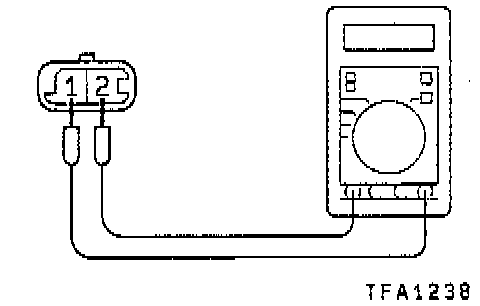

INPUT SPEED SENSOR CHECK
1. Disconnect the input speed sensor connector.
2. Measure the resistance between the input speed sensor side connector terminals 1 and 2.
3. If the resistance is outside 0.3 - 1.2 kilo ohms, replace the input speed sensor.

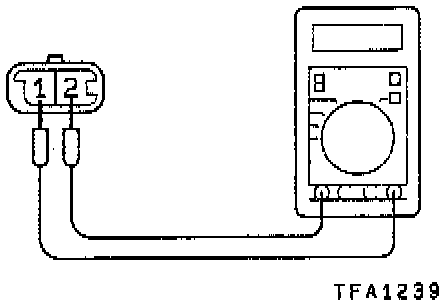

OUTPUT SPEED SENSOR CHECK
1. Disconnect the output speed sensor connector.
2. Measure the resistance between the input speed sensor side connector terminals 1 and 2.
3. If the resistance is outside 0.3 - 1.2 kilo ohms, replace the output speed sensor.
