Blower Motor Resistor: Service and Repair

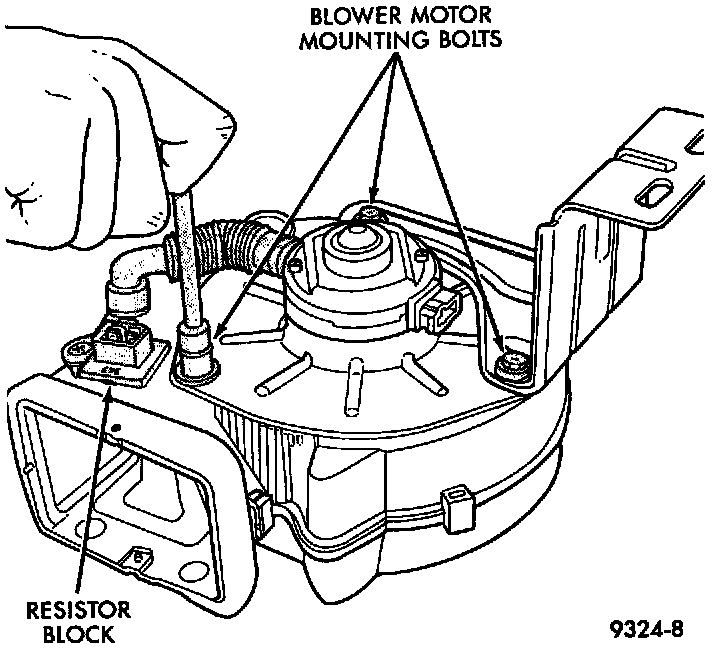

Fig 10 Blower Motor Mounting Bolts:

REMOVAL
1. Disconnect battery
2. Disconnect the wiring connector at the blower motor resistor.
3. Remove blower motor resistor mounting screw.
4. Pull resistor downward to remove.

INSTALLATION
For installation, reverse the above procedures.
