Condenser HVAC: Service and Repair

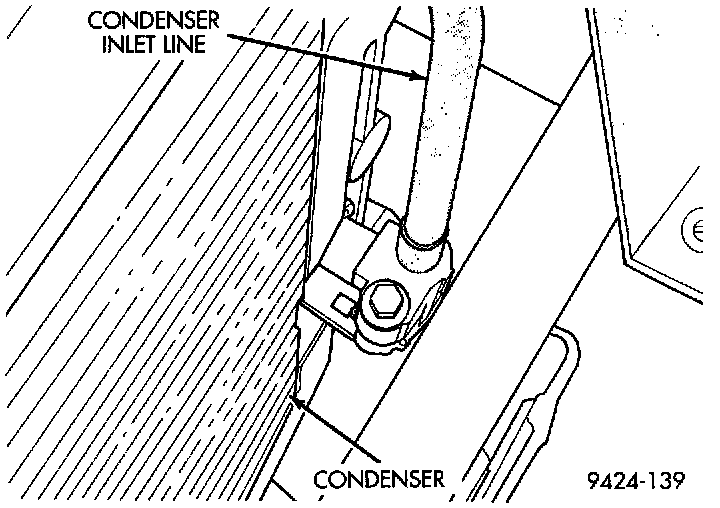

Fig 30 Condenser Inlet:

WARNING: The refrigeration system must be completely empty before proceeding with this operation.

CAUTION: Special effort must be used to keep all R-134a system components moisture-free. Moisture in the oil is very difficult to remove and will cause a reliability problem with the compressor.

REMOVAL
1. Disconnect negative battery cable from battery
2. Remove hood and hood support.
3. Remove air ducts located in front of the air cleaner assembly and air cleaner assembly.
4. Remove bolt retaining condenser inlet line to condenser.

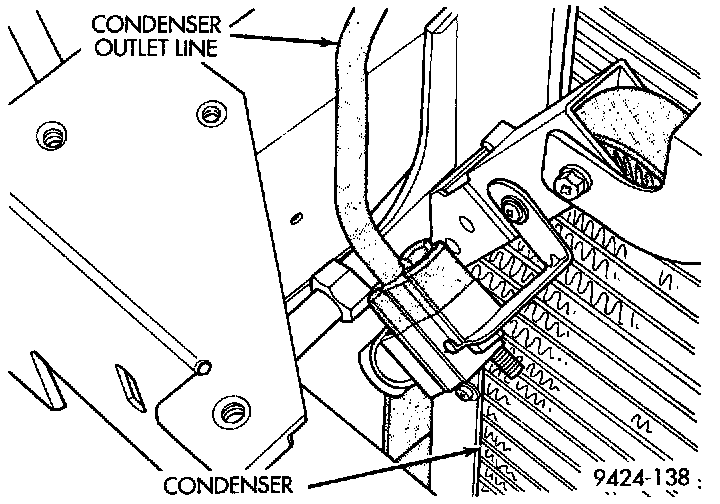

Fig 31 Condenser Outlet:

5. Remove bolt retaining condenser outlet line to condenser.

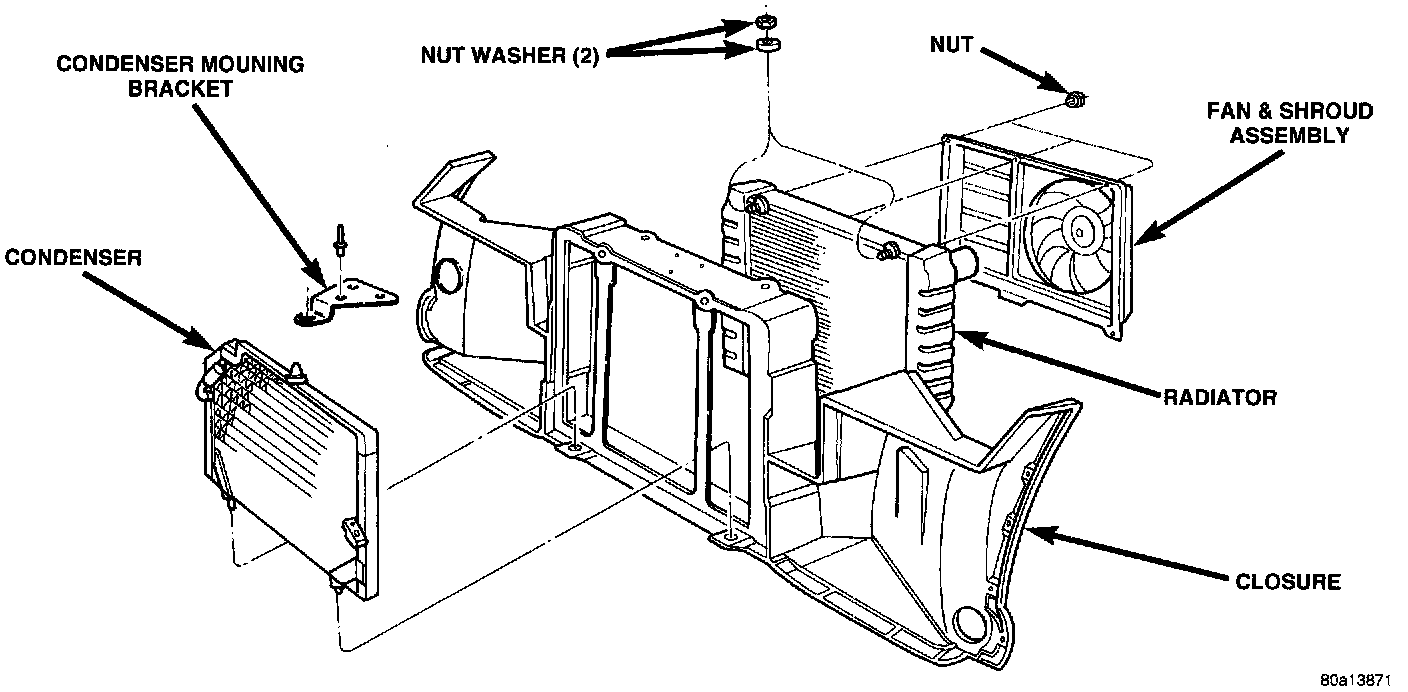

Fig 32 Condenser Mounting:

6. Remove the three rivets retaining condenser mounting bracket to radiator closure panel.
7. Pull up and out on condenser and remove. Care should be taken not to damage condenser cooling fins or refrigerant tubes when servicing condenser.

INSTALLATION
1. Replace all O-rings and gaskets, coat all sealing surfaces with approved refrigerant oil (ND8 PAG).
2. Reverse the above procedures.
3. Evacuate and Charge system.
