Home >> Dodge >> 1997 >> Viper GTS V10-488 8.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Trouble Code (NTC) Tests >> NTC-9B Checking Idle Air Control Motor

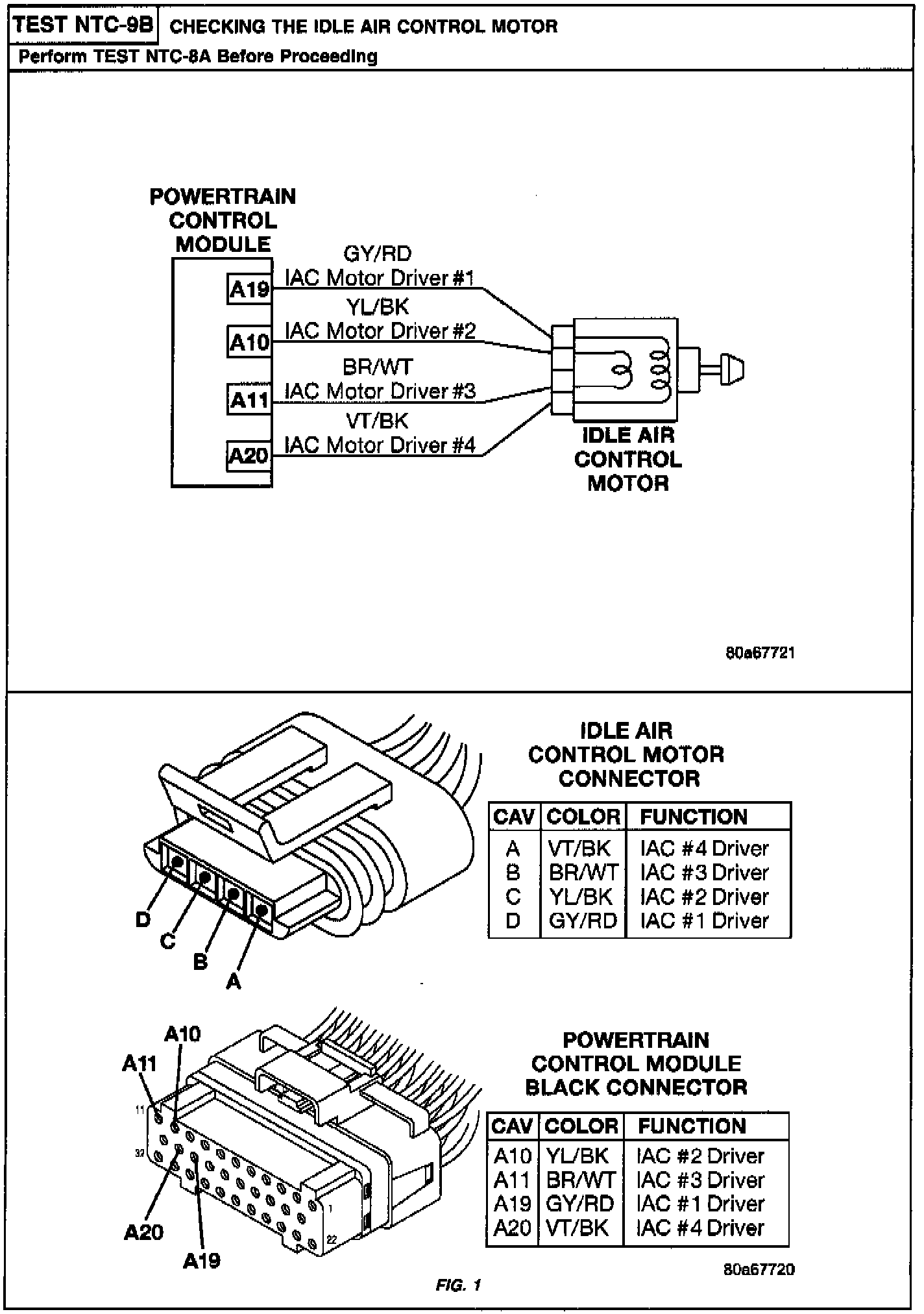

NTC-9B Checking Idle Air Control Motor

Part 1 of 1:






Part 1 figures:
