Accessory Drive Belt

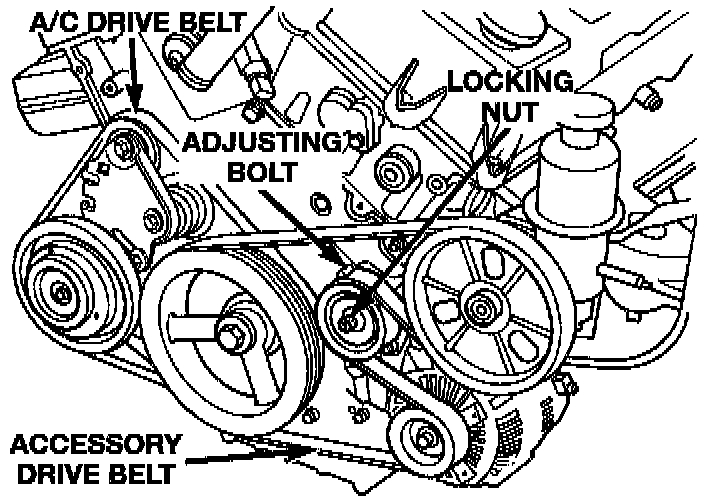

Figure 32-Accessory Drive Belt:

REMOVAL
1. Loosen tensioner pulley locking nut.
2. Loosen belt adjusting bolt.
3. Remove accessory drive belt.

INSTALLATION
1. Install accessory drive belt on pulleys.
2. Tighten belt adjusting bolt to proper belt tension.
3. Tighten tensioner locking nut.

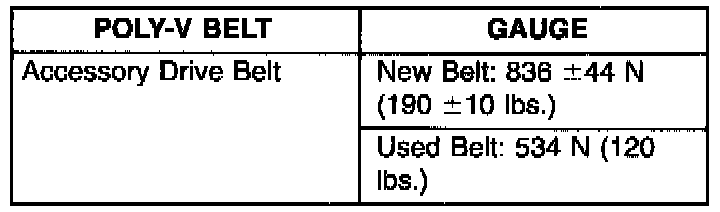

Belt Tension Chart-2.7L:

NOTE: See Belt Tension Chart for specifications.
