Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge
>>
2001
>>
Viper GTS V10-8.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

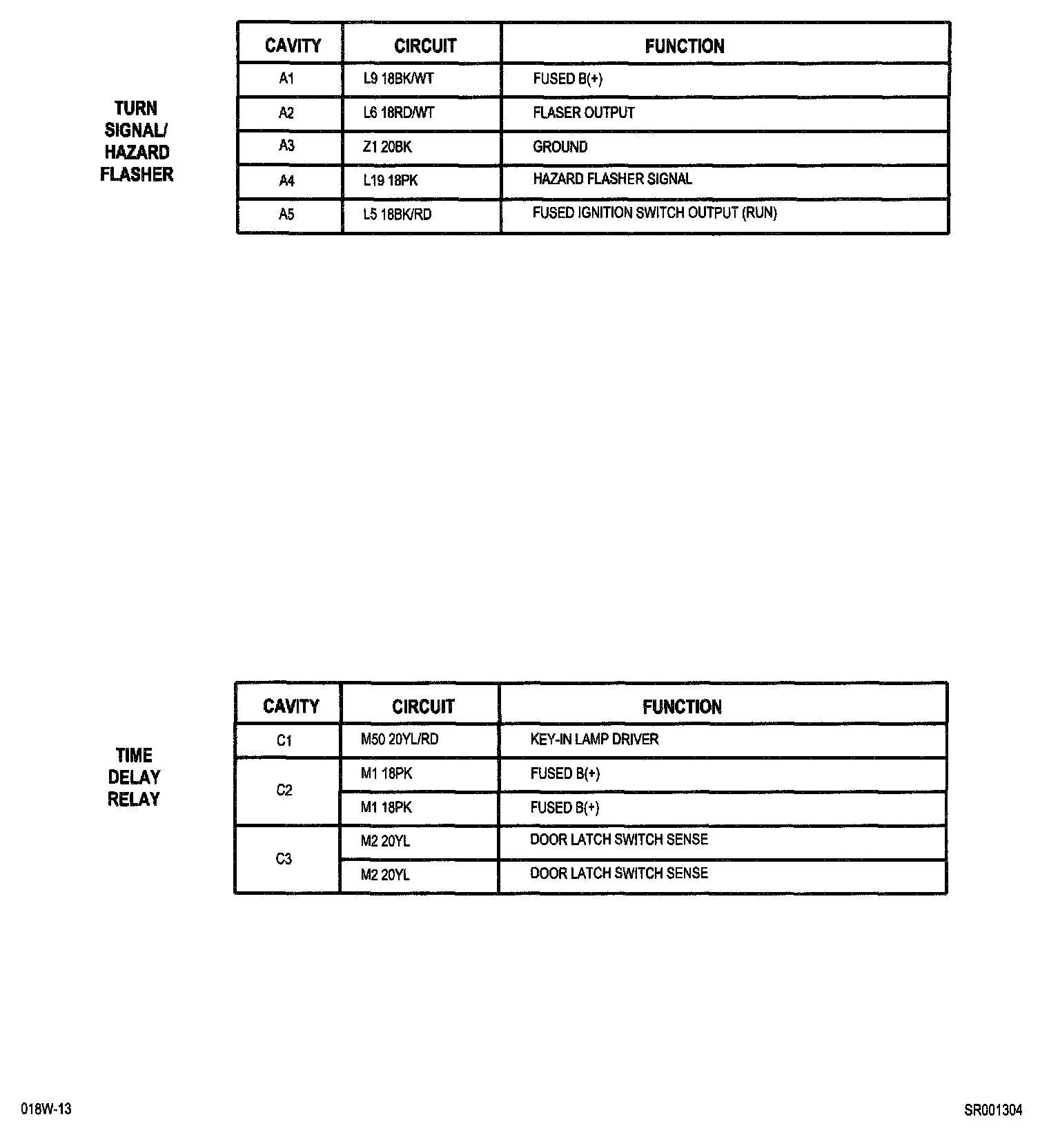

Key Reminder Relay
Key Reminder Relay
8w-13-2:
8w-13-4:
