Home >> Dodge >> 2002 >> Viper GTS V10-8.0L VIN E >> Repair and Diagnosis >> Locations >> Splice Locations >> Figure 14

Figure 14

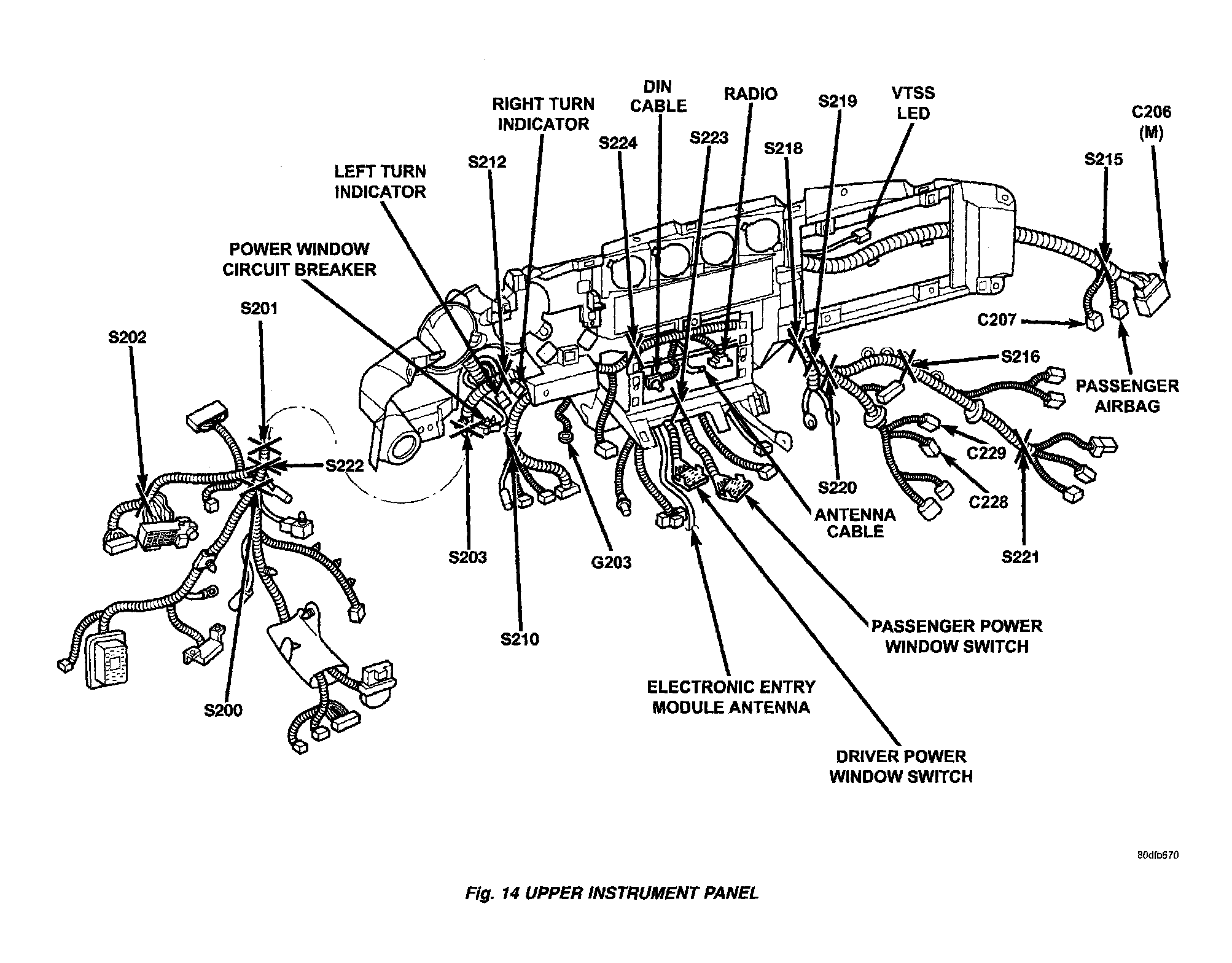

Fig. 14 Upper Instrument Panel:
