Viper RT-10 V10-8.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Doors
>>
System Diagram
System Diagram

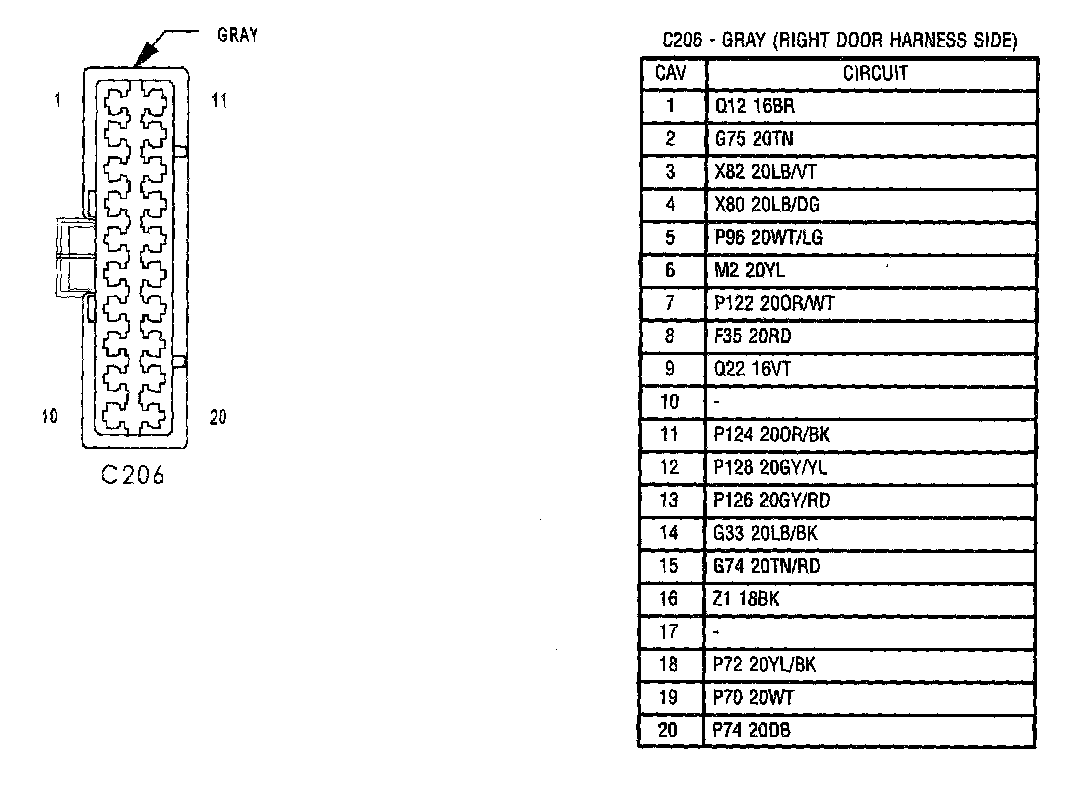

C206:

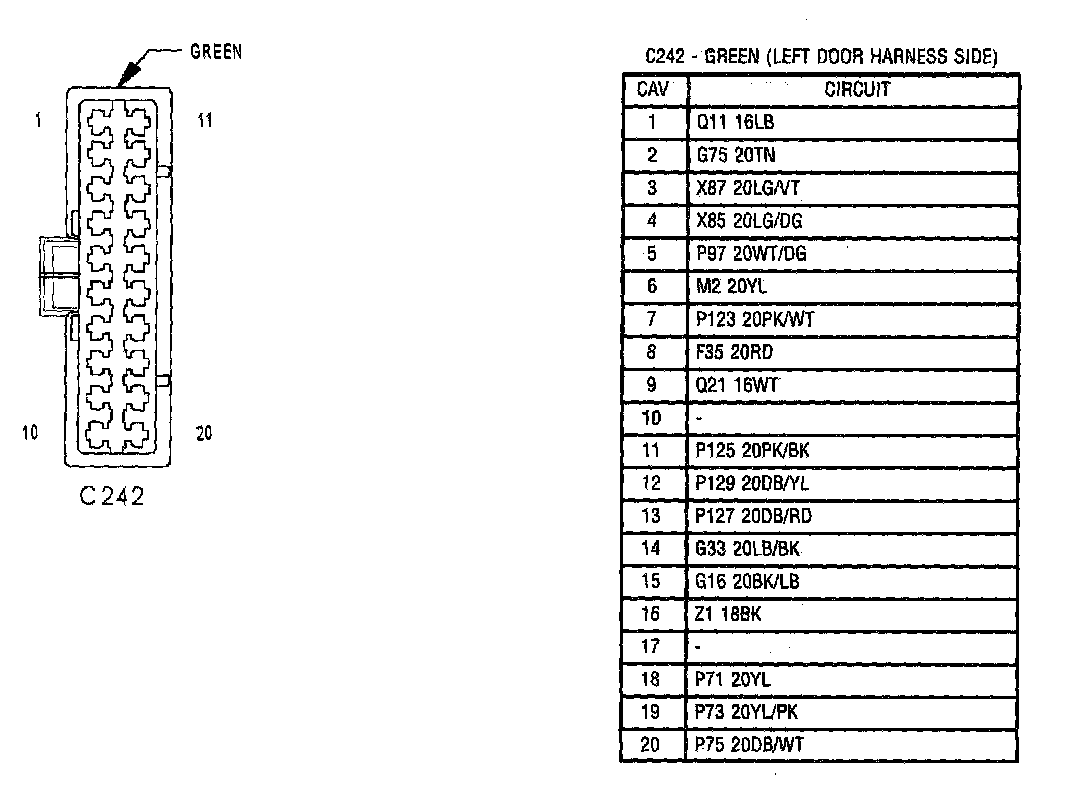

C242:
