Viper RT-10 V10-8.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Motor
Wiper Motor

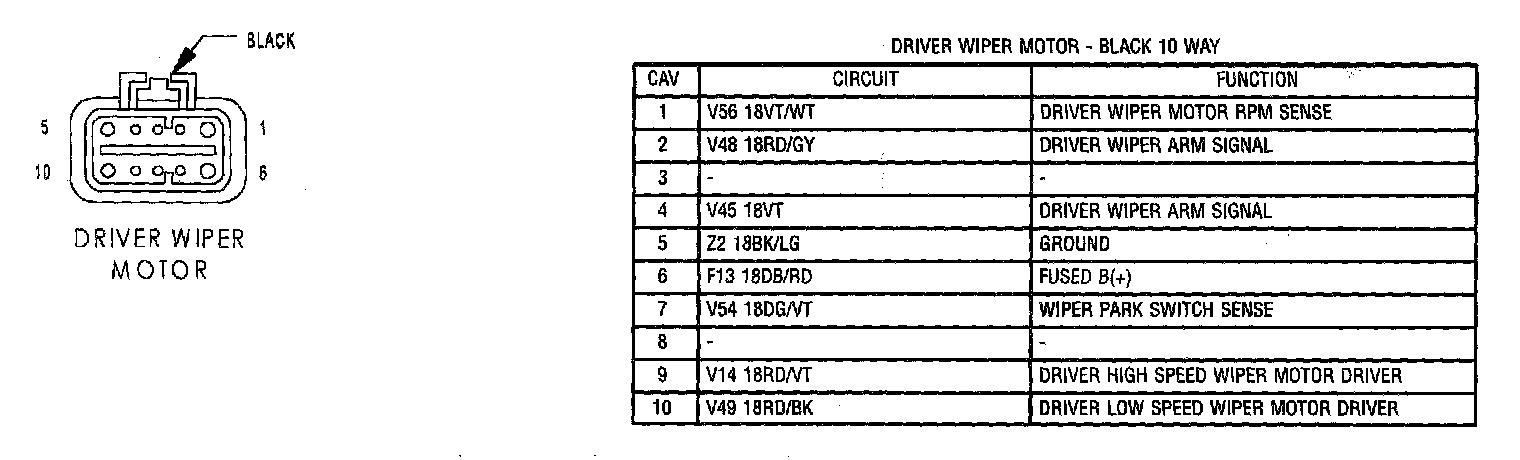

Driver Wiper Motor:

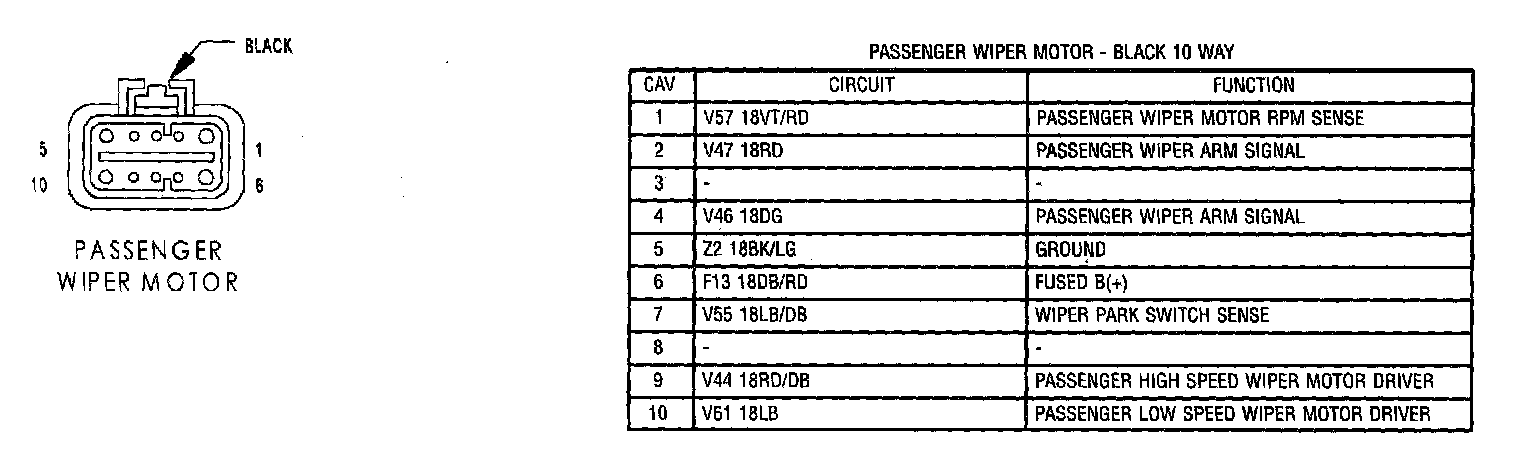

Passenger Wiper Motor:
