Trunk / Liftgate Lock Cylinder: Service and Repair

LOCK CYLINDER

REMOVAL

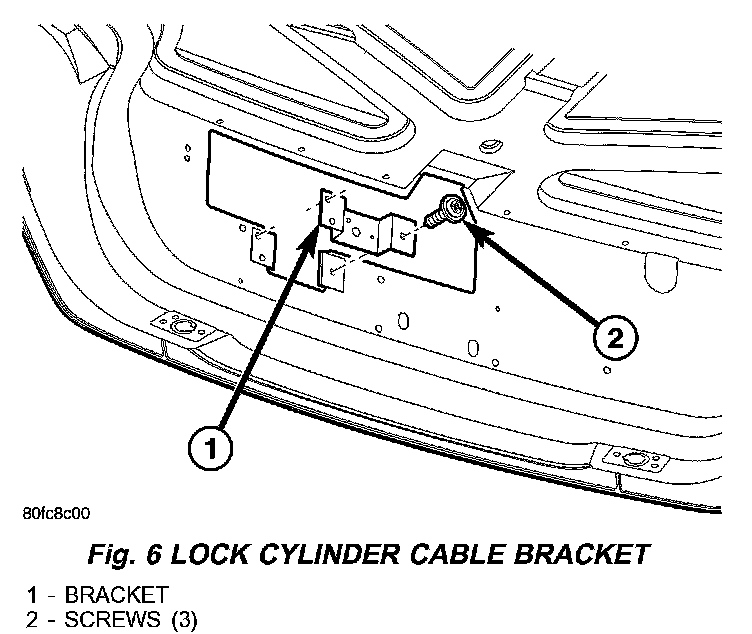

Fig. 6:

1. Remove the three screws and position aside the lock cylinder cable bracket. (Fig. 6)

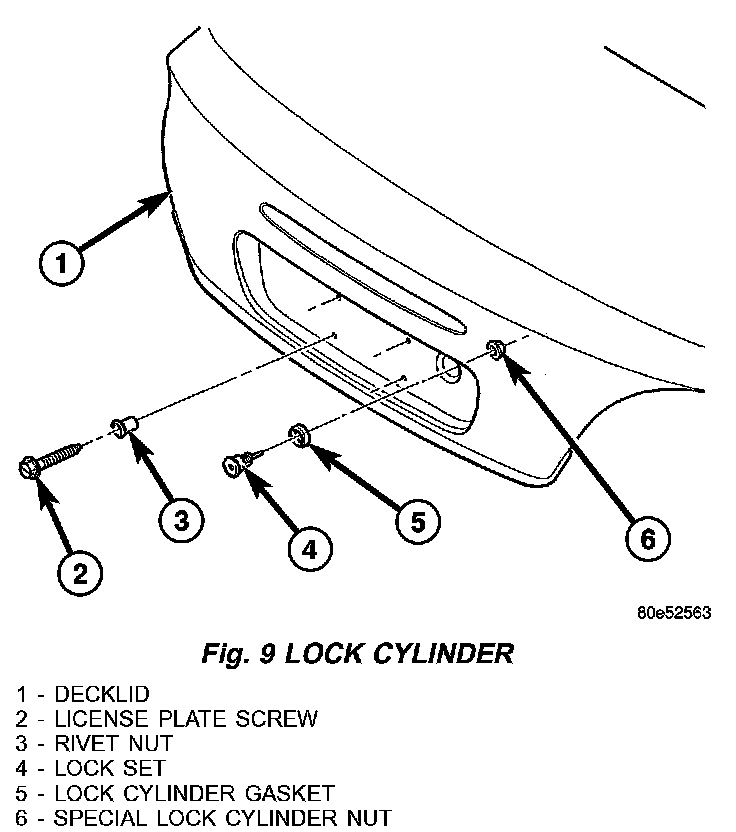

Fig. 9:

2. Remove the nut and remove the lock cylinder. (Fig. 9)

INSTALLATION

1. Position lock cylinder and seal through opening in decklid.
2. Install nut attaching lock cylinder to the deck-lid and tighten to 12 N.m (9 ft.lbs.).
3. Align lock cylinder arm to slot in latch remote and insert arm into slot.
4. Install the three lock cylinder cable bracket screws.
