Sport Hoop

SPORT HOOP

REMOVAL

Sport Hoop

NOTE: Sport hoop included on convertible model only.

1. Remove the sport hoop fastener cover.

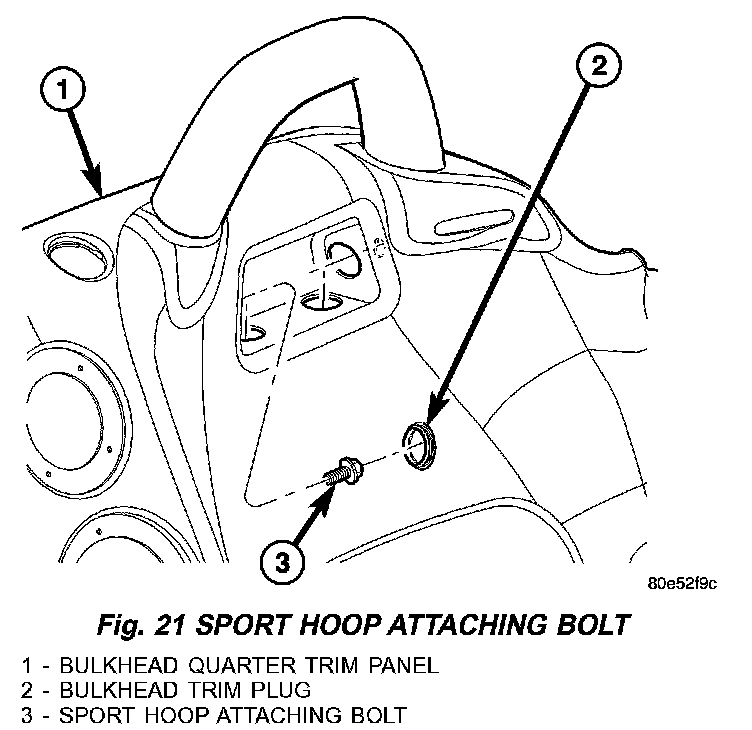

Fig. 21:

2. Remove the two bolts and remove the sport hoop. (Fig. 21)

Sport Hoop Mounting Brackets
1. Remove the bulkhead quarter trim panels. Refer to Trim Panel.

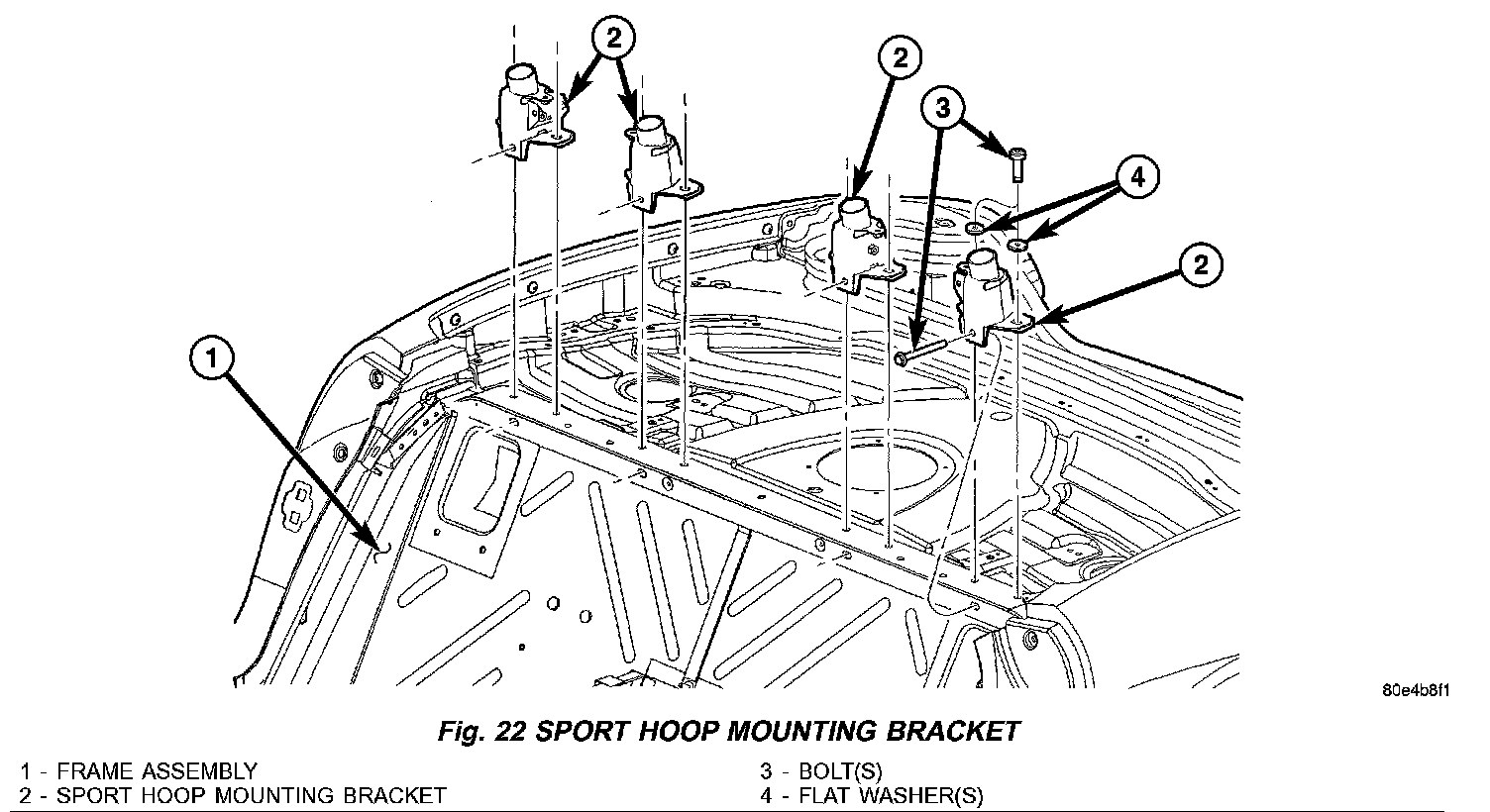

Fig. 22:

2. Remove the fasteners and remove the mounting brackets. (Fig. 22)

INSTALLATION

Sport Hoop Mounting Brackets
1. Install the bracket and install the fasteners. (Fig. 21)
2. Tighten the bolts to 39 N.m (29 ft.lbs.).
3. Install the bulkhead quarter trim panels.

Sport Hoop
1. Install the sport hoop and install the bolts.
2. Tighten the bolts to 28 N.m (21 ft.lbs.).
3. Install the sport hoop fastener cover.
