Seat Back

SEAT BACK

REMOVAL

1. Remove the seat.
2. Unzip the seat back cover and expose the recliner bolts.

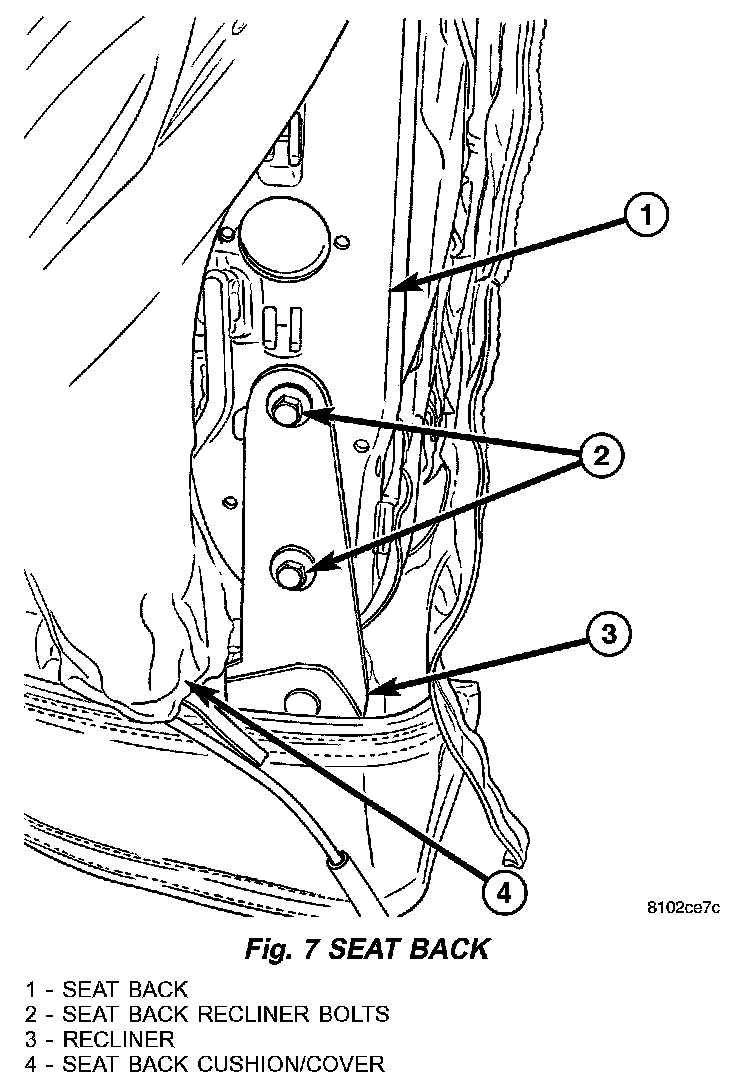

Fig. 7:

3. Remove the recliner bolts and remove the seat back. (Fig. 7)

INSTALLATION

1. Install the seat back onto the recliners and install the bolts.
2. Tighten the bolts to 28 N.m (21 ft.lbs.).
3. Complete seat back cover installation by zipping up the cover.
4. Install the seat.
