Trunk / Liftgate Weatherstrip: Service and Repair

DECKLID OPENING WEATHERSTRIP

REMOVAL

1. Open the decklid and Using a grease pencil or equivalent, mark the position of the seal seam to aid installation.

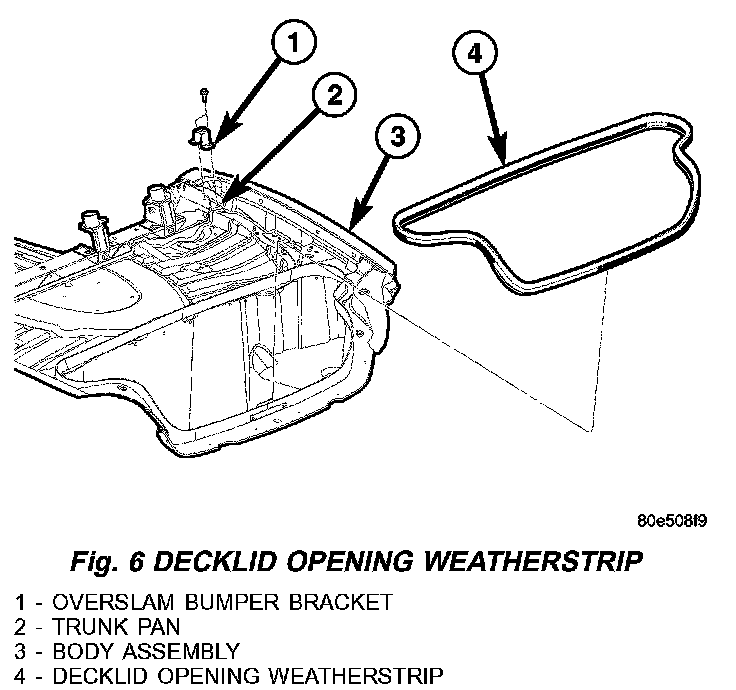

Fig. 6:

2. Remove the weatherstrip. (Fig. 6)

INSTALLATION

1. Position the weatherstrip and align the seam with the mark made previously.
2. Seat the weatherstrip along the flange fully.
