Front Fender Liner: Service and Repair

FRONT WHEELHOUSE SPLASH SHIELD

REMOVAL

1. Remove the front wheel.

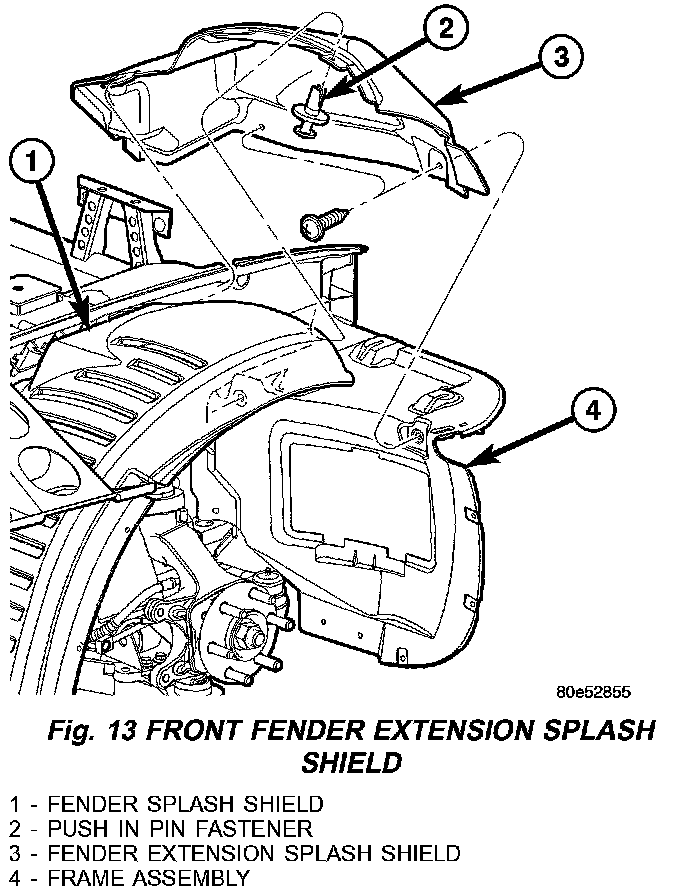

Fig. 13:

2. Remove the two screws and two push pin fasteners. (Fig. 13)
3. Remove the front splash shield.
4. Remove the four fender screws.

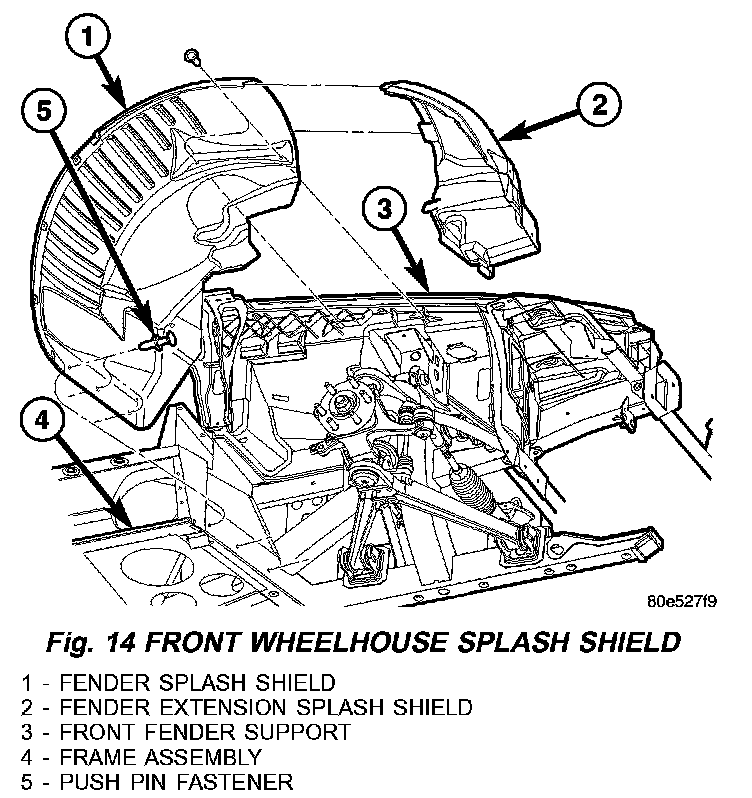

Fig. 14:

5. Remove the three lower push pin fasteners and two inner screws. (Fig. 14)
6. Remove the rear splash shield.

INSTALLATION

1. Install the rear splash shield and loosely install the six screws.
2. Install the three push pin fasteners and tighten the screws.
3. Install the front splash shield and loosely install the screws.
4. Install the push pin fastener and tighten the screws.
