Engine Mounting-Front-AWD

REMOVAL - AWD











1. Disconnect negative battery cable.
2. Raise vehicle.
3. Remove the generator support bracket.

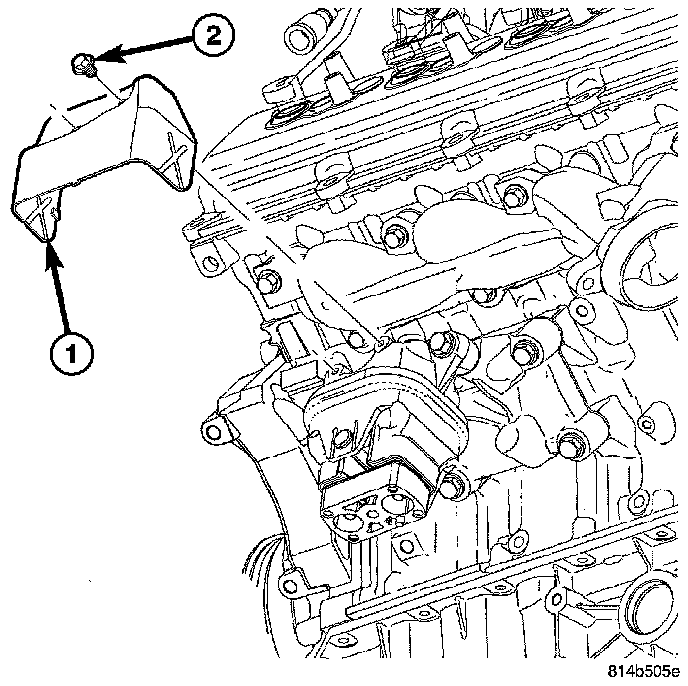

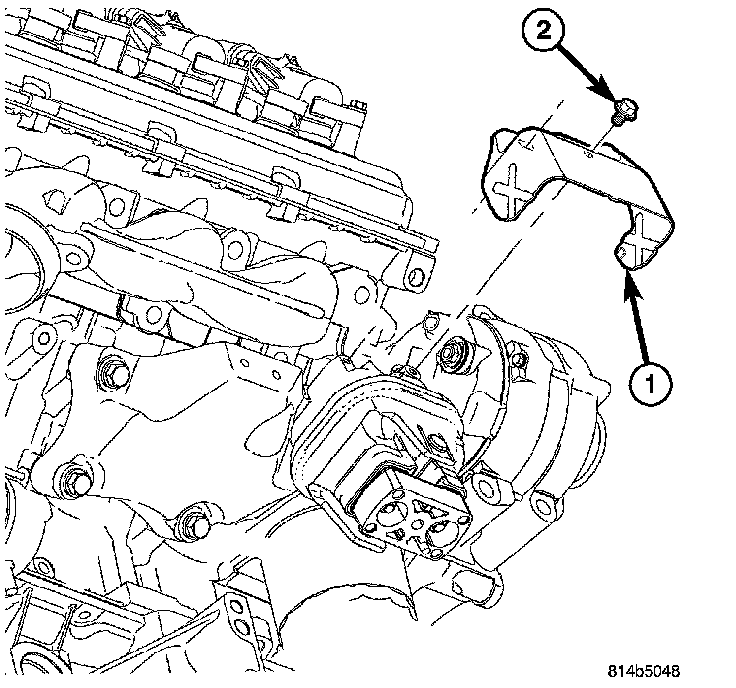

4. Remove the heat shield (1).





5. Remove engine hydromount to frame nuts, and studs (3).
6. Raise engine using suitable jack.
7. Remove engine mount to insulator bolts (2).
8. Remove engine hydromount (1) from engine.

INSTALLATION - AWD








1. Install the engine mount brackets, if removed.
2. Install hydromount (1) on the engine. Tighten hydromount to bracket fasteners.
3. Install the fasteners to the hydromount (2,3).
4. Install the generator support bracket.








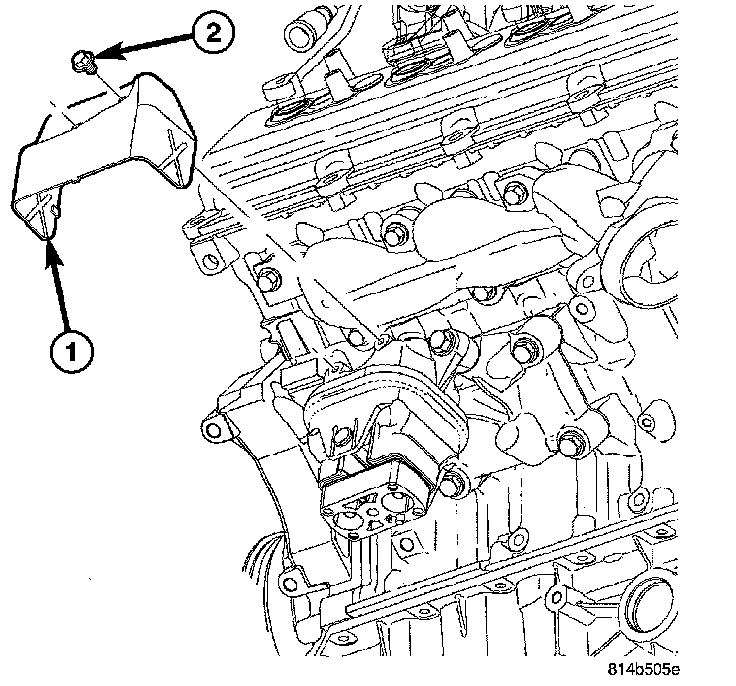

5. Install the heat shields (1).
6. Lower the engine.








7. Install the hydromount (1) to frame nuts on the studs, and tighten.
8. Lower vehicle.
9. Connect negative battery cable.
