Engine Mounting-Front

ENGINE MOUNTING-FRONT

REMOVAL








1. Disconnect negative battery cable.
2. Raise vehicle.

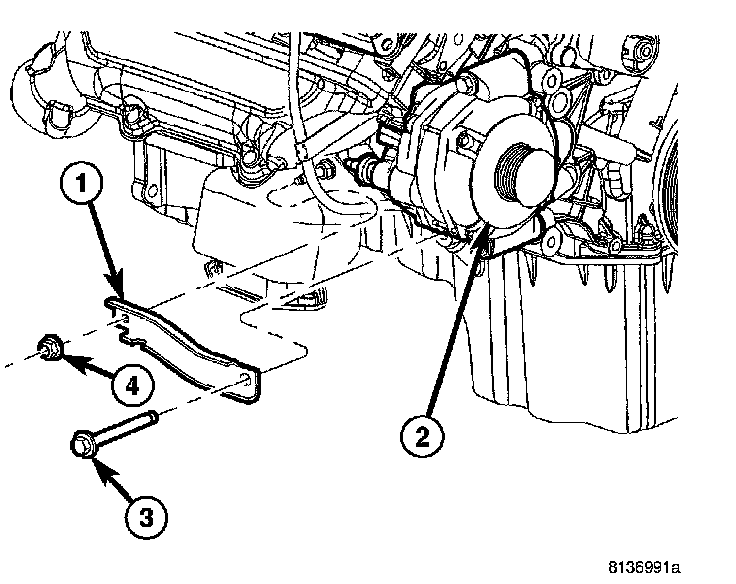

3. Remove the generator support bracket (1).

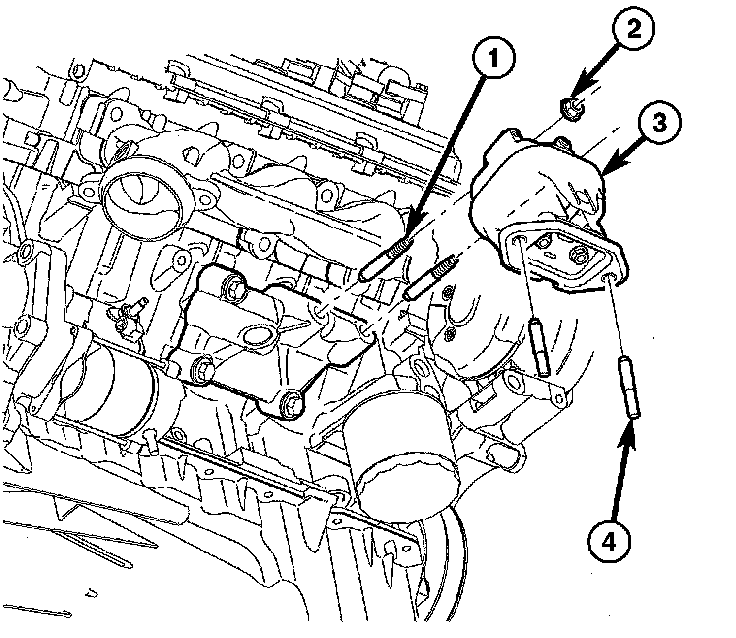

4. Remove hydromount to frame studs (3,4) and nuts.
5. Raise engine using suitable jack.

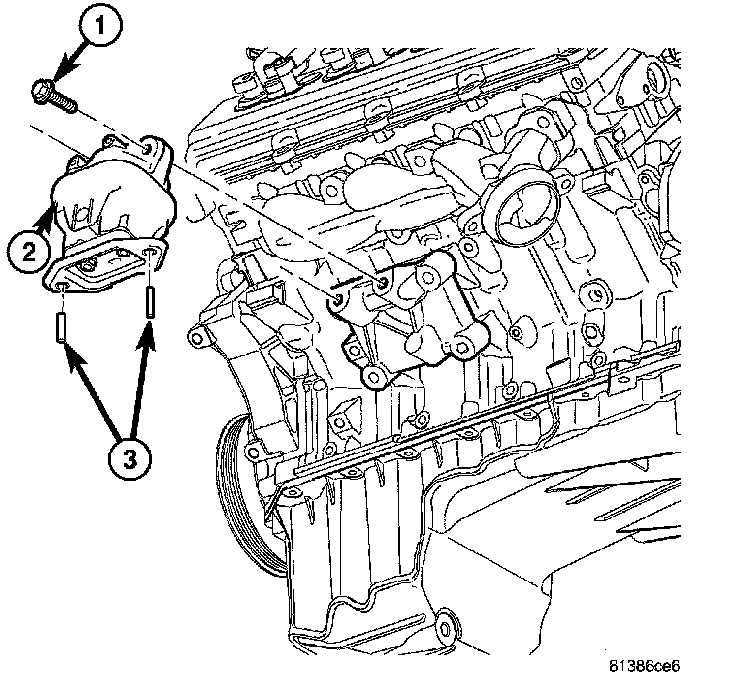

6. Remove hydromount to bracket fasteners (1,2).
7. Remove hydromount from engine.

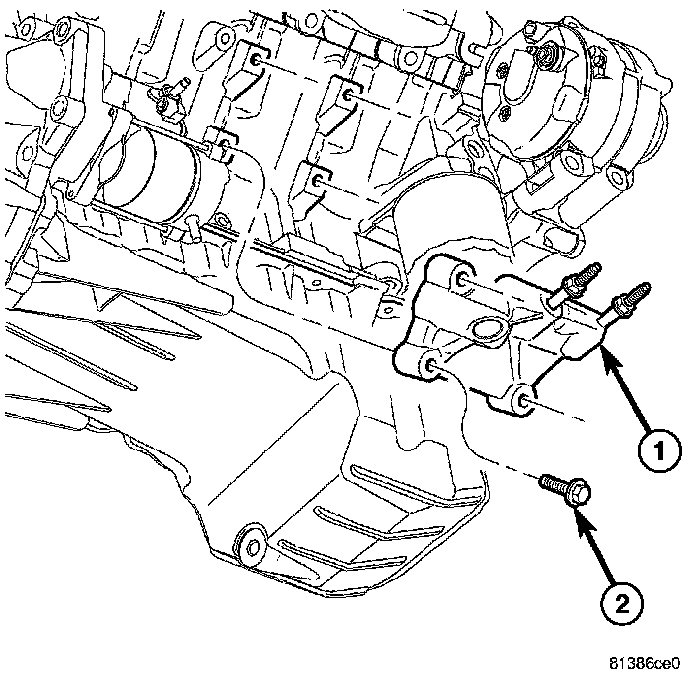

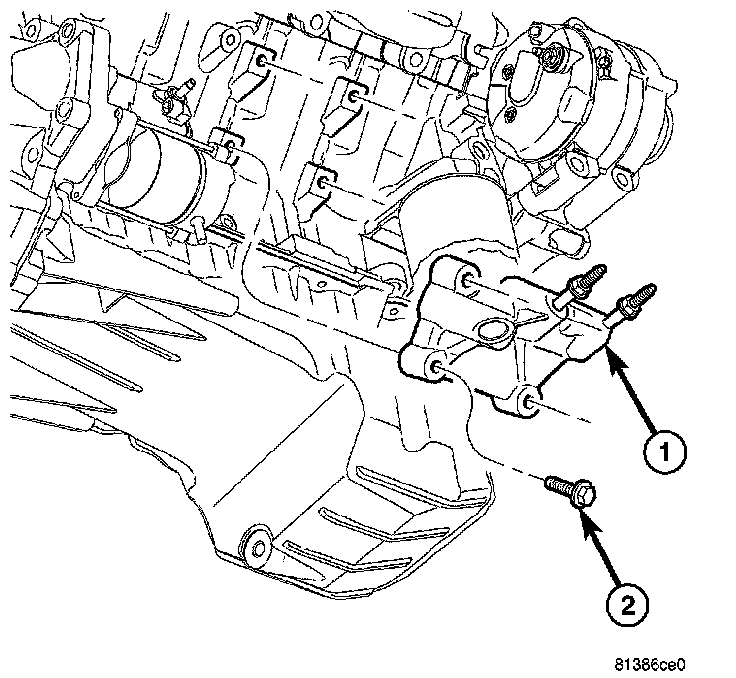

8. Remove engine mount brackets (1), if needed.

INSTALLATION

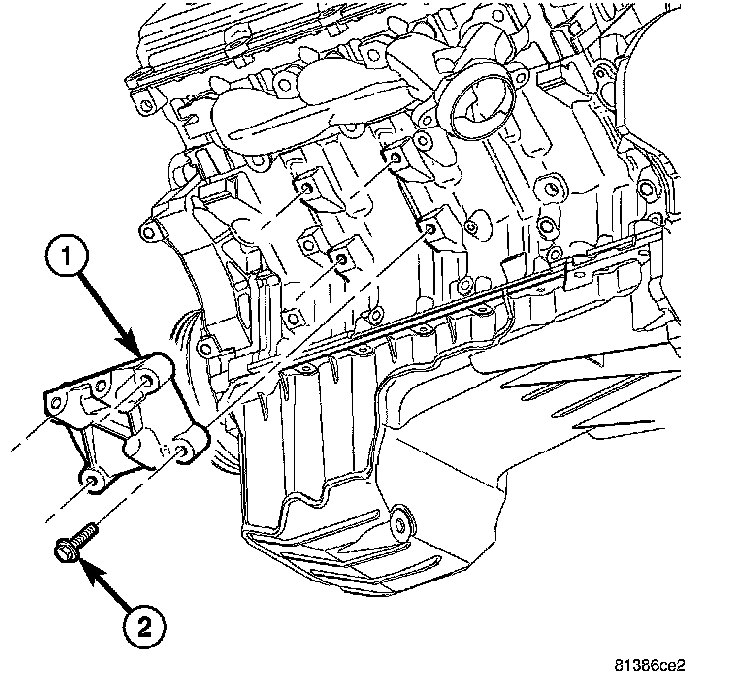

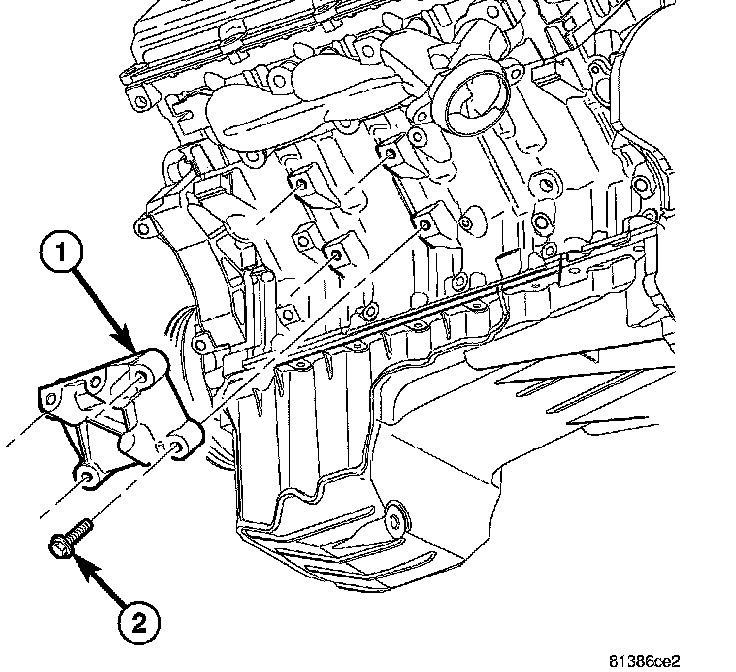

1. Install the engine mount brackets (1), if removed.

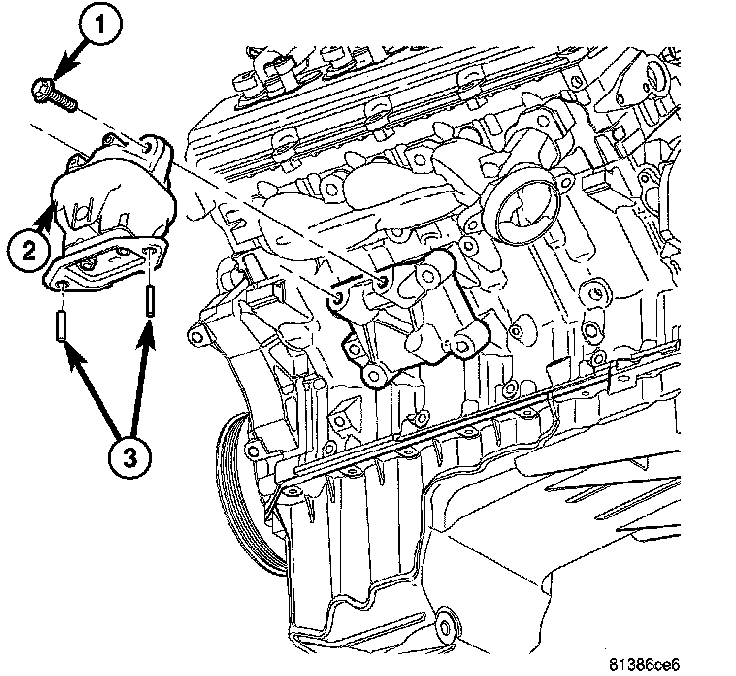

2. Install hydromount (3) on the engine. Tighten hydromount to bracket fasteners.

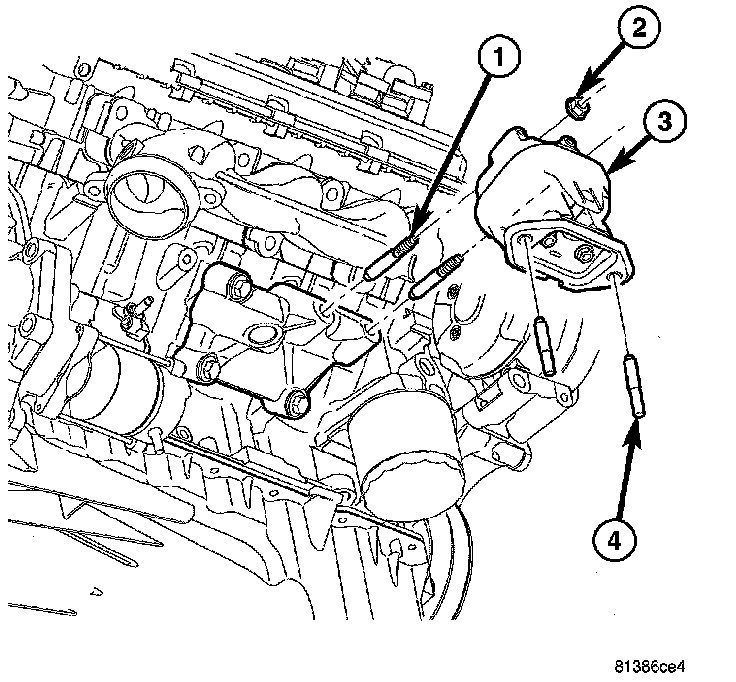

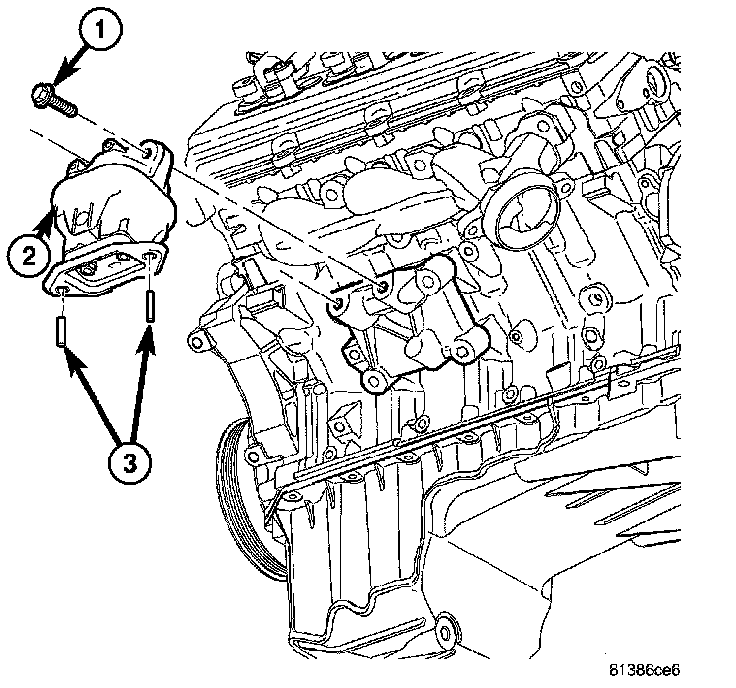

3. Install the studs (3,1) to the hydromount (2).





4. Install the generator support bracket (1).
5. Lower the engine.








6. Install the nuts on the studs (3,4), and tighten.
7. Lower vehicle.
8. Connect negative battery cable.
