Mount-Rear
MOUNTING-ENGINE REARREMOVAL
1. Raise the vehicle on a hoist.
2. Using a suitable jack, support transmission.

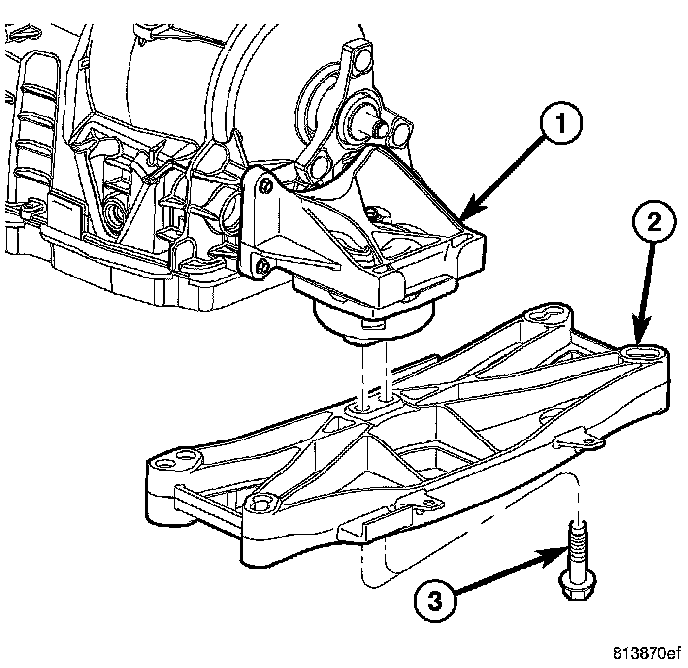

3. Remove the crossmember (2).
4. Remove the fasteners (1) from the transmission mount (3) to crossmember.
5. Remove the mount (3).

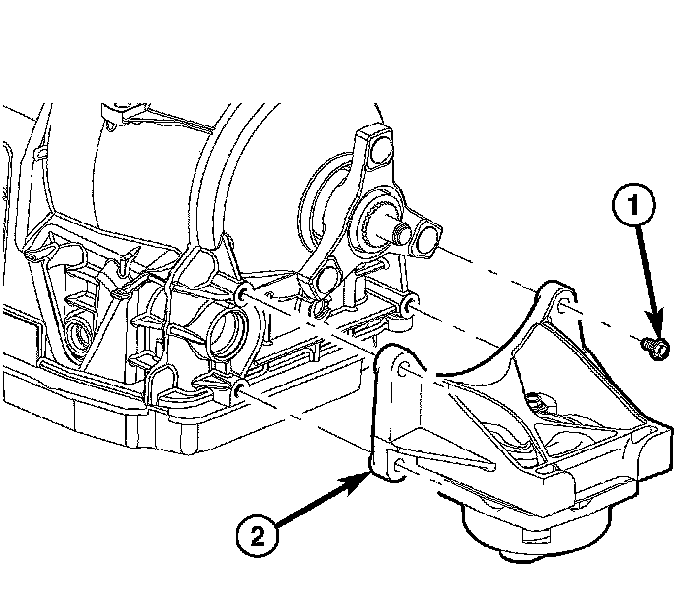

6. Remove the transmission mount bracket (2), if required.
INSTALLATION

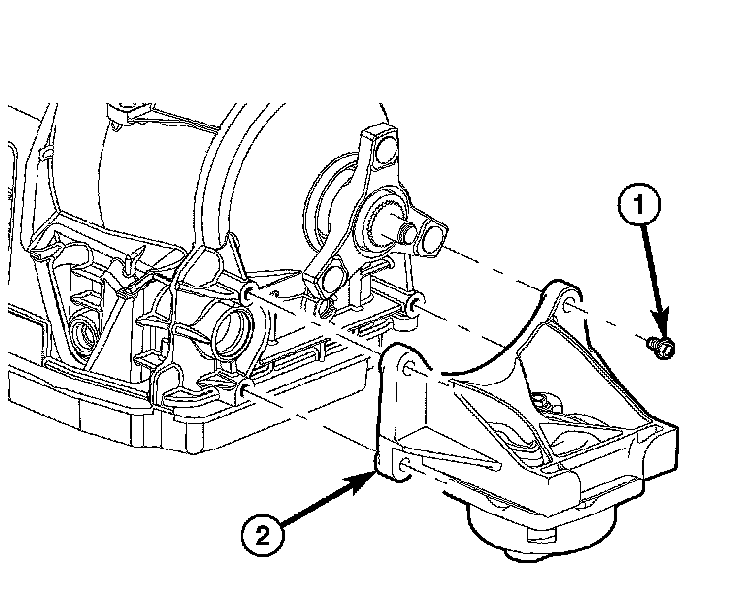

1. Install the transmission mount bracket (2), if removed.
2. Position the transmission mount (3) on the transmission mount bracket (2). Install the bolts (1) that attach the transmission mount (3) to the bracket (2).
3. Torque the bolts to 68 Nm 50 (ft. lbs.) torque.

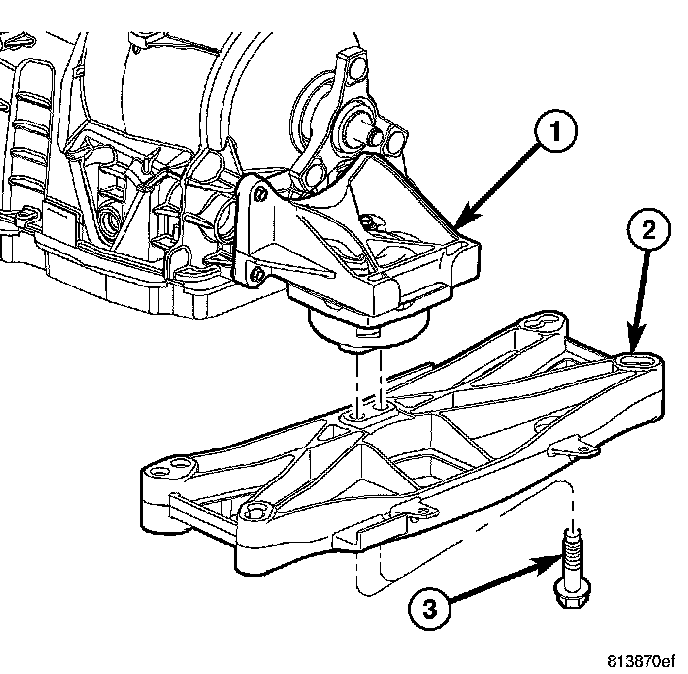

4. Install the crossmember (2).
