Water Pump: Specifications

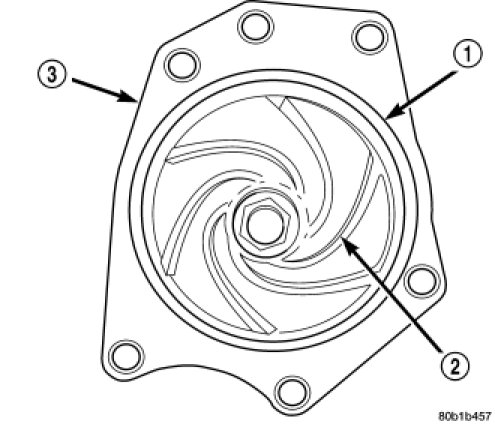

Position water pump (3) and O-ring to engine.
Install mounting bolts. Tighten to 12 Nm (105 In. Lbs.)
