Rear Wheel Speed Sensor - Installation

INSTALLATION

CAUTION: Failure to install speed sensor properly may result in contact with moving parts or an over extension of wires causing an open circuit. Be sure that sensor harnesses are installed, routed, and clipped properly.

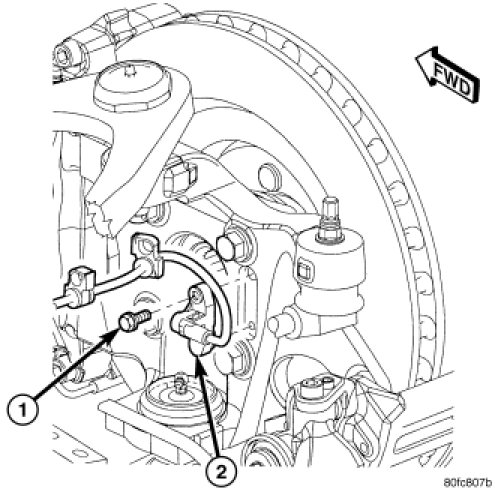

1. Install wheel speed sensor head (2) in knuckle and install mounting bolt (1). Tighten mounting bolt 11 Nm (100 in. lbs.).
2. Route sensor harness along parking brake cable and install routing clips. Close clips.
3. Push sensor connector fastener clip into mounting hole in frame rail.
4. Connect vehicle wiring harness to sensor connector.
5. Install tire and wheel assembly Tires and Wheels - Installation. Progressively tighten the wheel mounting nuts in the proper sequence to 135 Nm (100 ft. lbs.).
6. Lower vehicle.
7. Perform the Diagnostic Verification Test and clear any faults. Verification Tests
