Electronic Climate Control - Display Flashes 88

90amcjeep03

Models

1990 BB Body


Subject

Auto Temp Display Flashes "88" Or Turns Off


Index

CLIMATE CONTROL


Date

March 26, 1990


No.

24-52-90

(C24-01-0)
P-872
BODY CODE LEGEND

BB - PREMIER


NOTE: A MANUFACTURING CHANGE INSIDE THE FUSE BLOCK TO ELIMINATE THIS CONDITION WAS MADE ON SEPTEMBER 20, 1990. THIS BULLETIN DOES NOT APPLY TO CARS BUILT AFTER THAT DATE.


SYMPTOM/CONDITION

Actuation of either the driver or the passenger power seat causes the semi-automatic climate control display to flash "88" and then go to either the off mode or return to the previously set mode of the system. The system may go to the default settings when turned back on.


PARTS REQUIRED

1 Jumper Wire (with capacitor) PN 4604149


REPAIR PROCEDURE

This repair consists of installing the PN 4604149 jumper wire which has an integral .22 microfarad capacitor to reduce the voltage spike coming from the power seat motors.

1. Move the driver's seat to the full forward position.

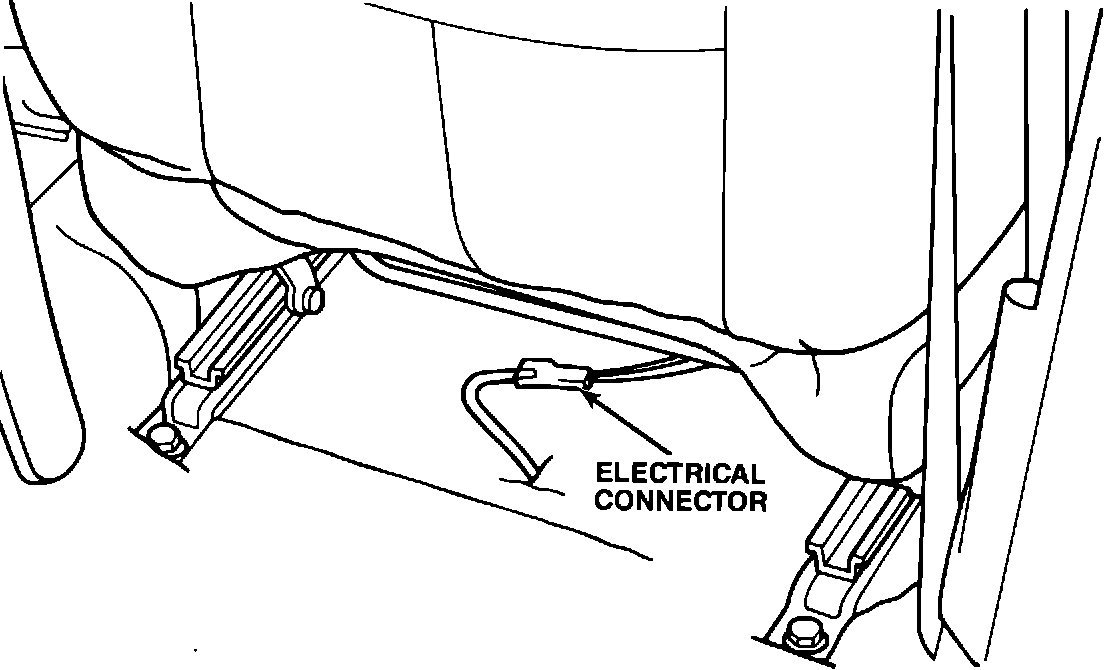

FIGURE 1:

2. From behind the seat, unhook the power seat motor wire connector. See Figure 1.

3. Install the PN 4604149 jumper between the connectors.
POLTCY: Reimbursable under the provisions of the warranty.


TIME ALLOWANCE:
Labor Operation No. 08-52-35-90 . . . . . . . . . . . . . . . . 0.2 Hrs


FAILURE CODE: 61 - Intermittent Operation
